Home
>>
Nissan-Datsun
>>
2013
>>
Sentra FE+SV
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Removal And Installation
>>
Generator
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View

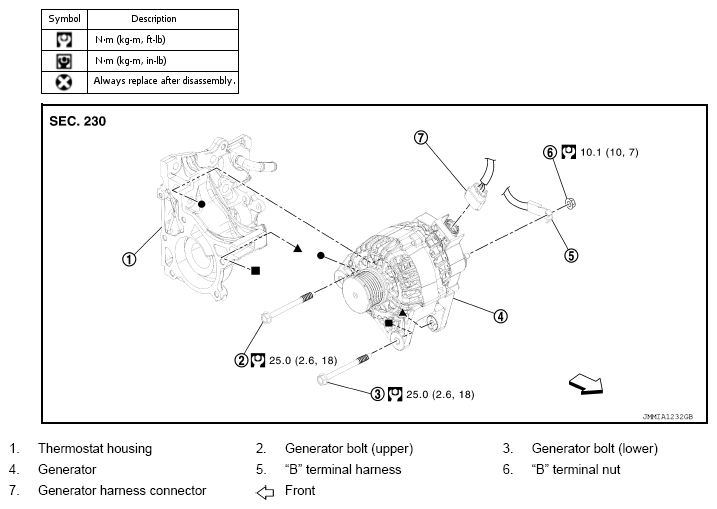

Fig 1: Exploded View Of Generator With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
