Connector End Views

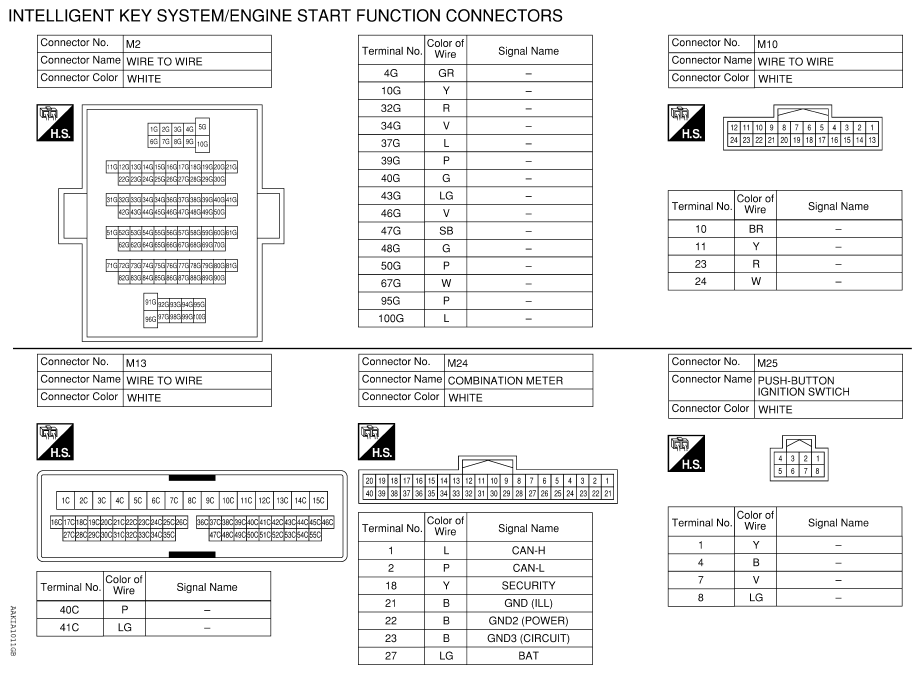

Fig 1: Intelligent Key System/Engine Start Function Connector End Views (1 Of 10)
G08991057Courtesy of NISSAN NORTH AMERICA, INC.

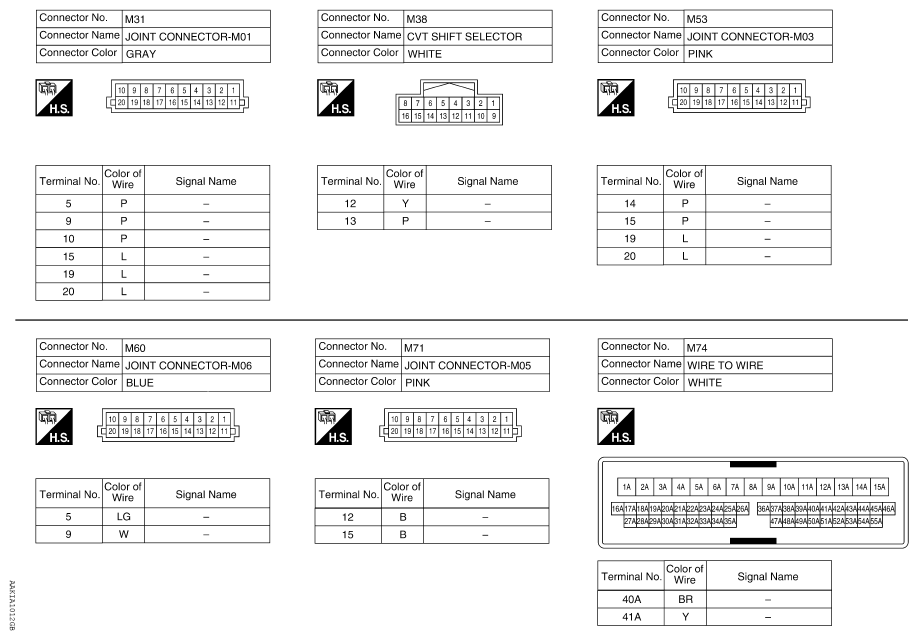

Fig 2: Intelligent Key System/Engine Start Function Connector End Views (2 Of 10)
G08991058Courtesy of NISSAN NORTH AMERICA, INC.

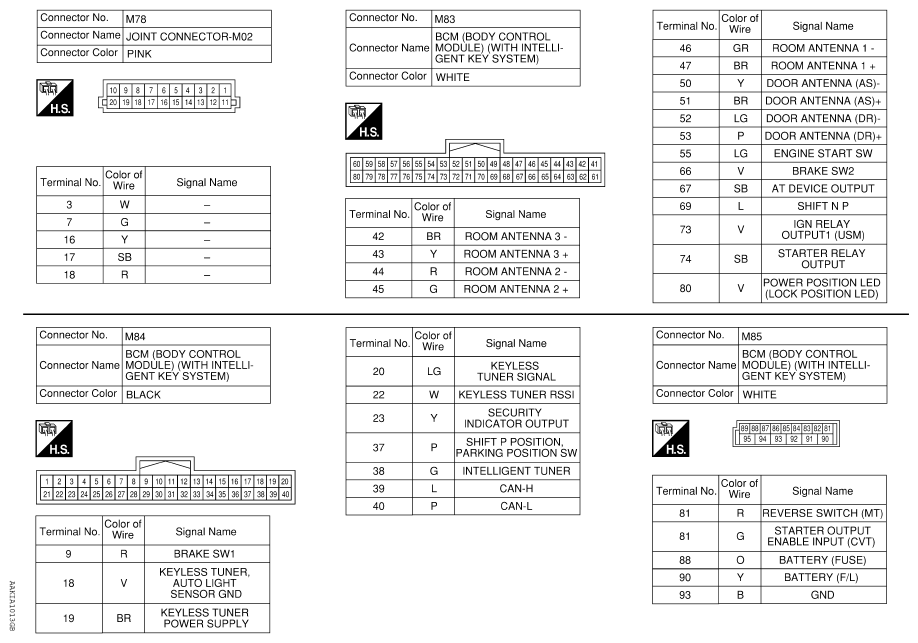

Fig 3: Intelligent Key System/Engine Start Function Connector End Views (3 Of 10)
G08991059Courtesy of NISSAN NORTH AMERICA, INC.

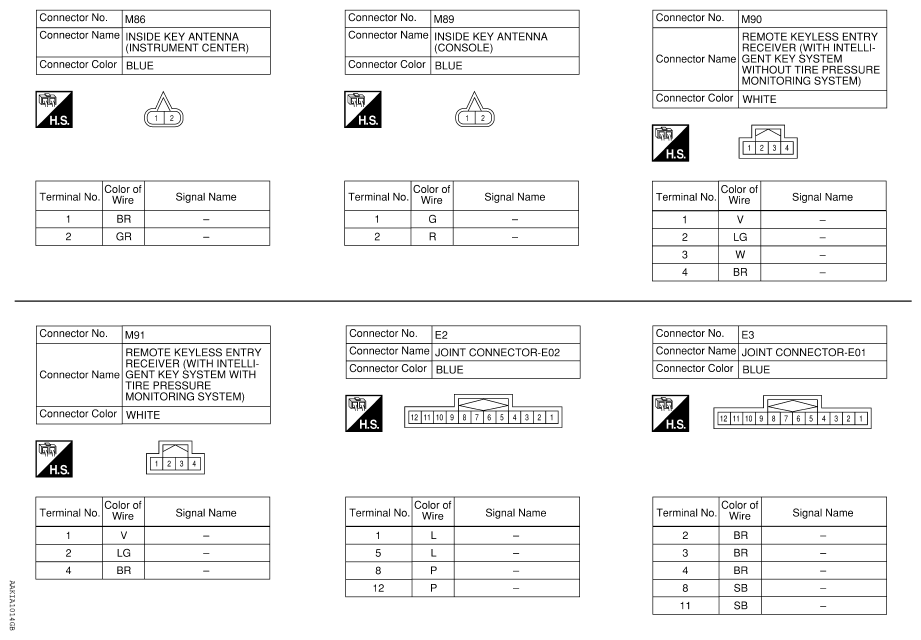

Fig 4: Intelligent Key System/Engine Start Function Connector End Views (4 Of 10)
G08991060Courtesy of NISSAN NORTH AMERICA, INC.

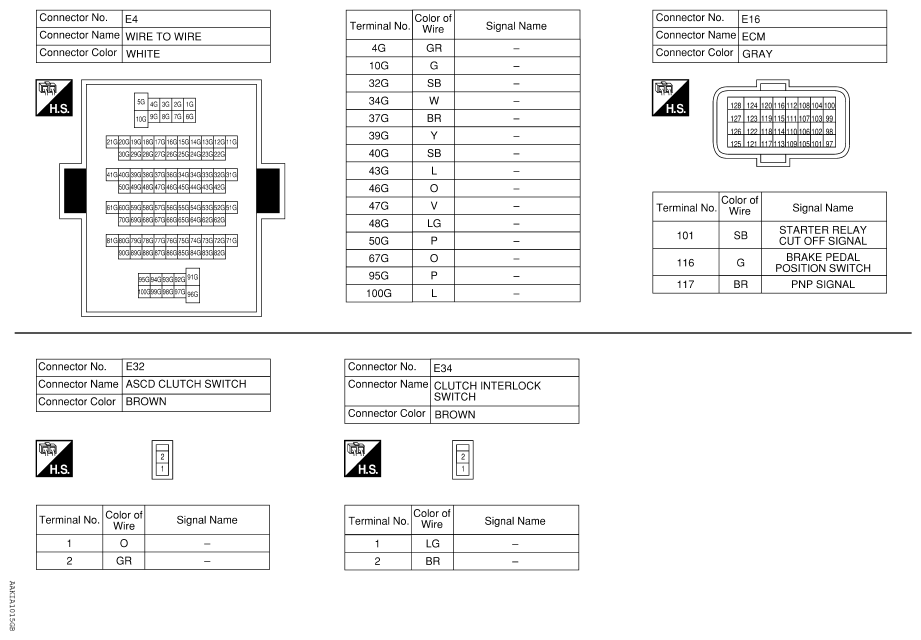

Fig 5: Intelligent Key System/Engine Start Function Connector End Views (5 Of 10)
G08991061Courtesy of NISSAN NORTH AMERICA, INC.

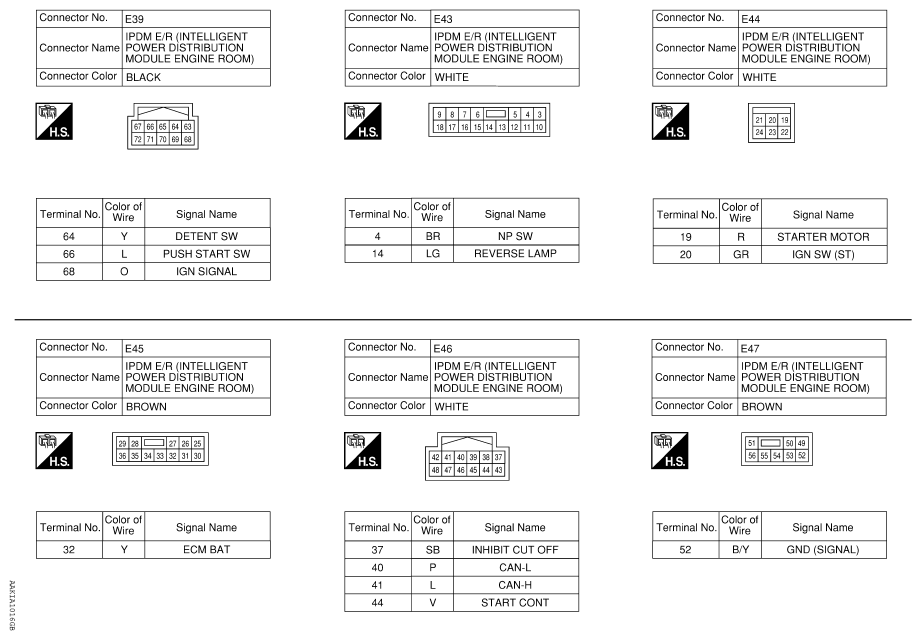

Fig 6: Intelligent Key System/Engine Start Function Connector End Views (6 Of 10)
G08991062Courtesy of NISSAN NORTH AMERICA, INC.

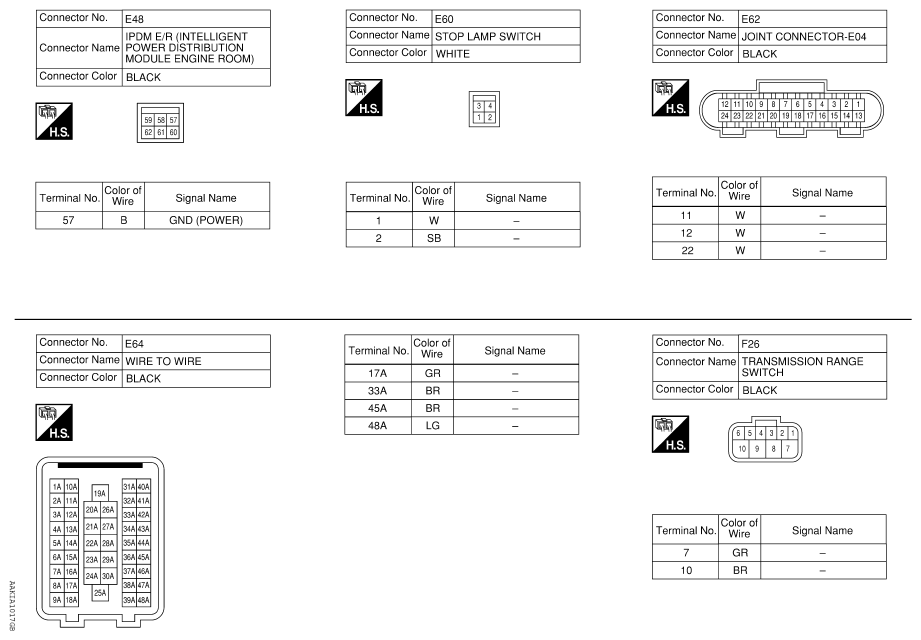

Fig 7: Intelligent Key System/Engine Start Function Connector End Views (7 Of 10)
G08991063Courtesy of NISSAN NORTH AMERICA, INC.

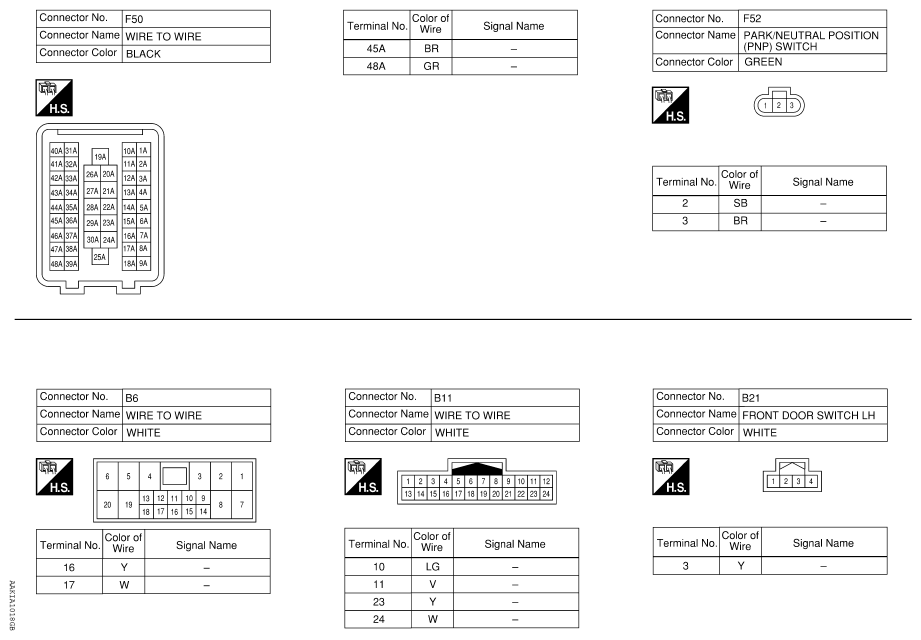

Fig 8: Intelligent Key System/Engine Start Function Connector End Views (8 Of 10)
G08991064Courtesy of NISSAN NORTH AMERICA, INC.

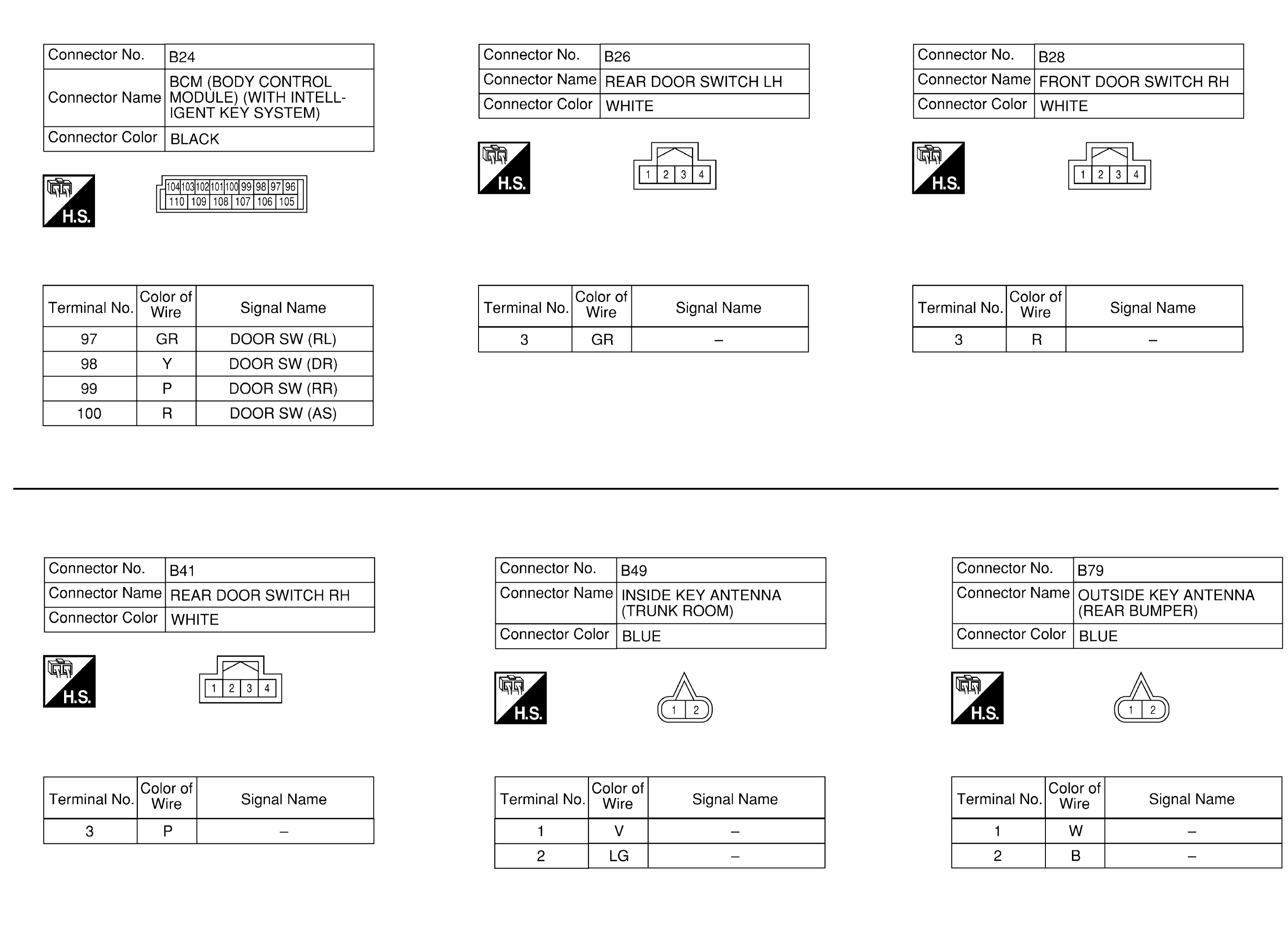

Fig 9: Intelligent Key System/Engine Start Function Connector End Views (9 Of 10)
G08991065Courtesy of NISSAN NORTH AMERICA, INC.

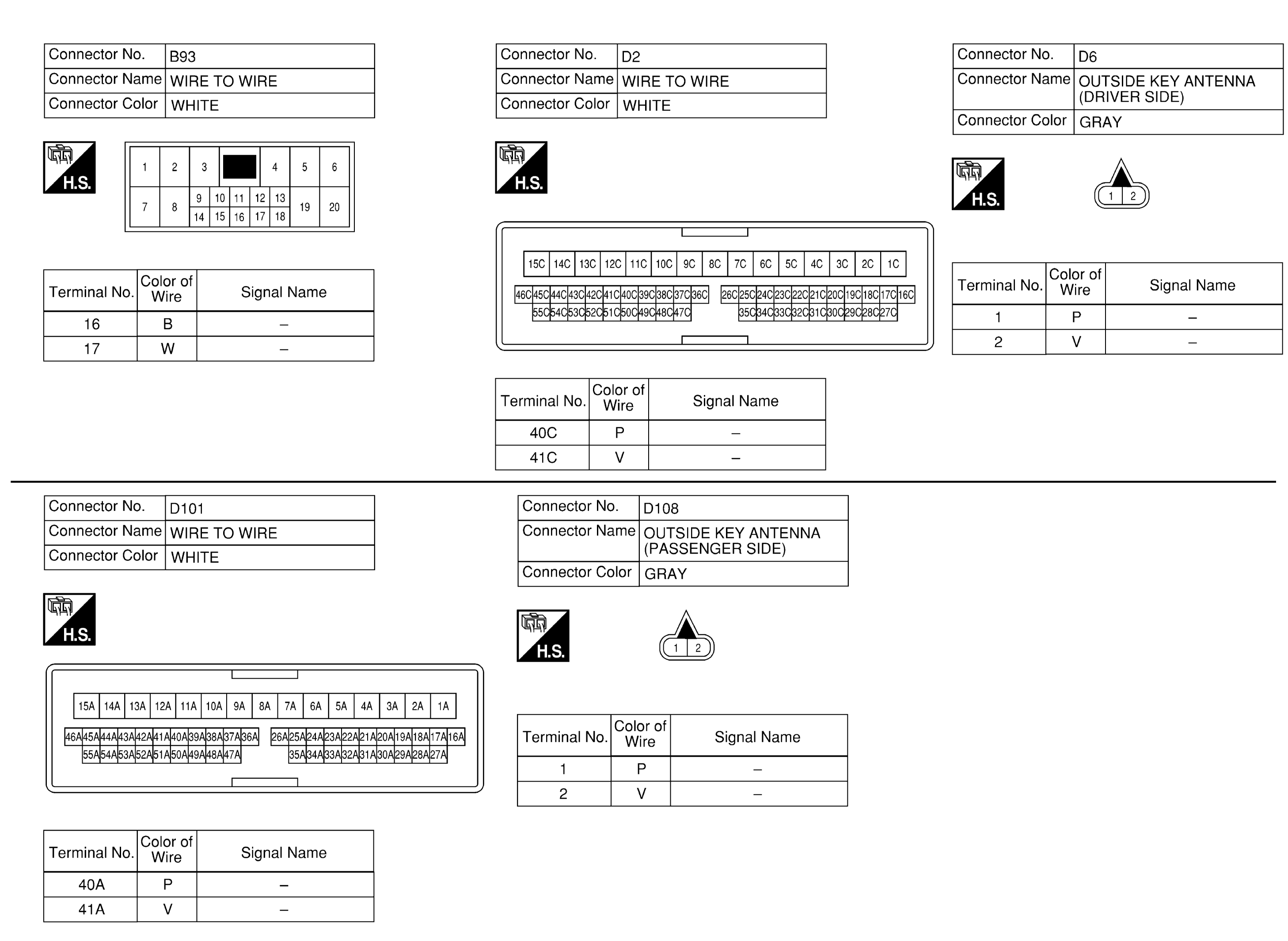

Fig 10: Intelligent Key System/Engine Start Function Connector End Views (10 Of 10)
G08991066Courtesy of NISSAN NORTH AMERICA, INC.
