Oil Pump: Notes

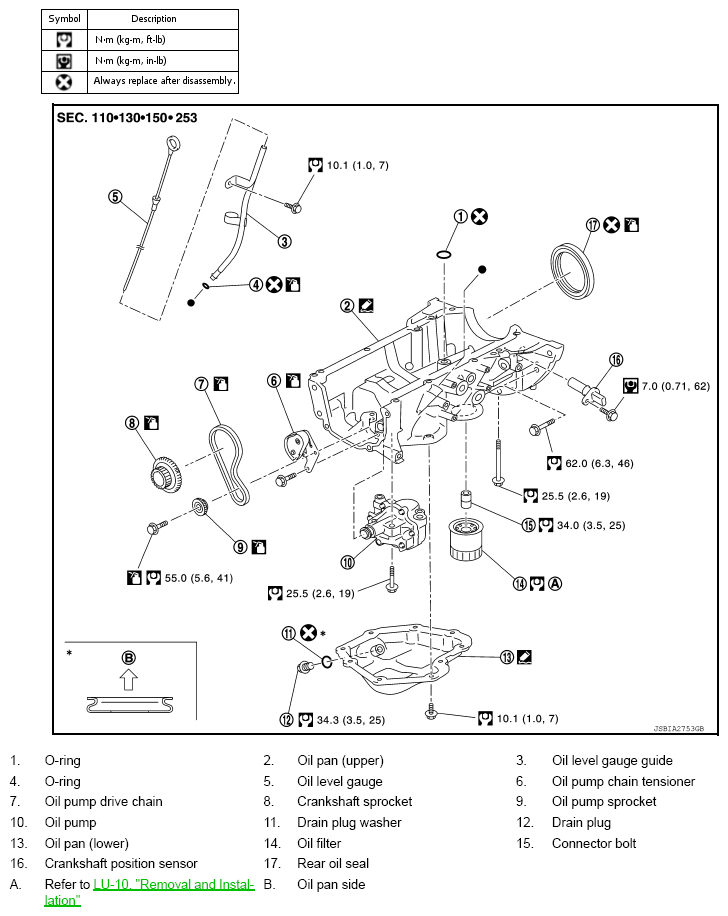

Fig 1: Disassembled View Of Oil Pump
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
