Exploded View

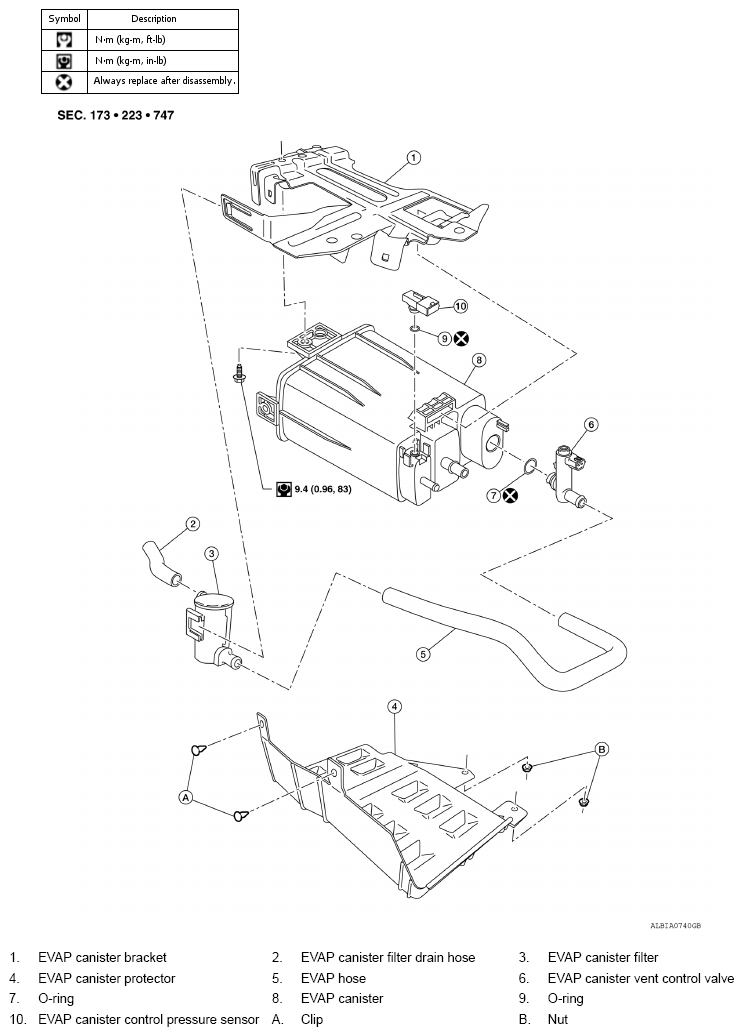

Fig 1: Exploded View Of EVAP Canister With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
