Component Function Check

CHECK FUEL PUMP FUNCTION
1. Turn ignition switch ON.
2. Pinch fuel feed hose (1) with two fingers.
  Fuel pressure pulsation should be felt on the fuel feed hose for 1 second after ignition switch is turned ON.

  Is the inspection result normal?

  YES: INSPECTION END

  NO: Proceed to "DIAGNOSIS PROCEDURE ".

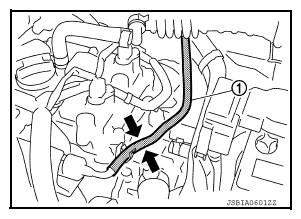

Fig 1: Identifying Fuel Feed Hose
Courtesy of NISSAN NORTH AMERICA, INC.
