System - Basic Engine Control System

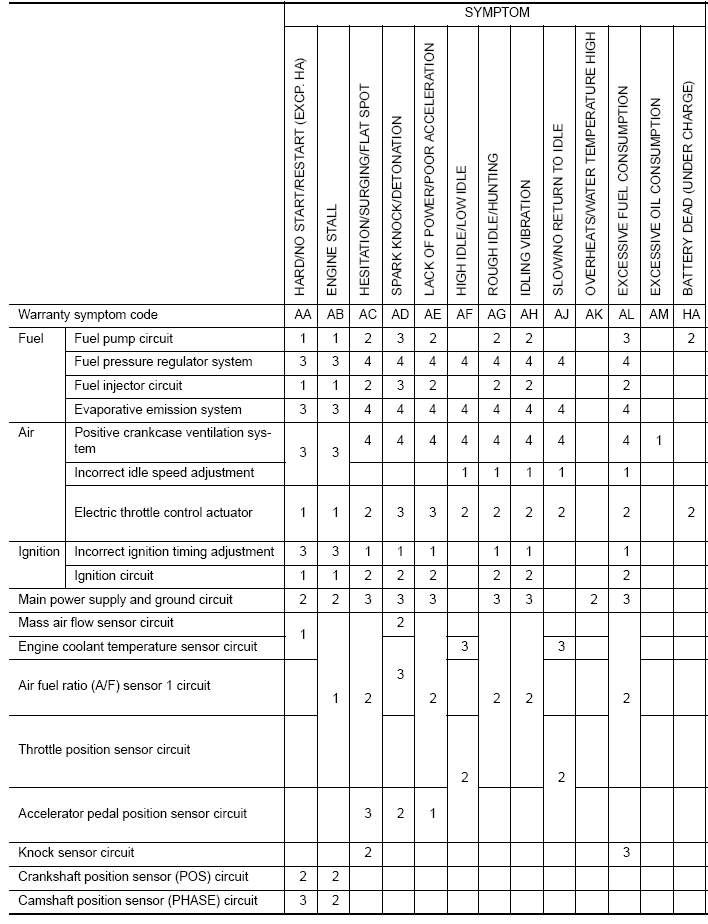

Fig 1: Engine Control System Symptom Chart (1 Of 3)
G08989373Courtesy of NISSAN NORTH AMERICA, INC.

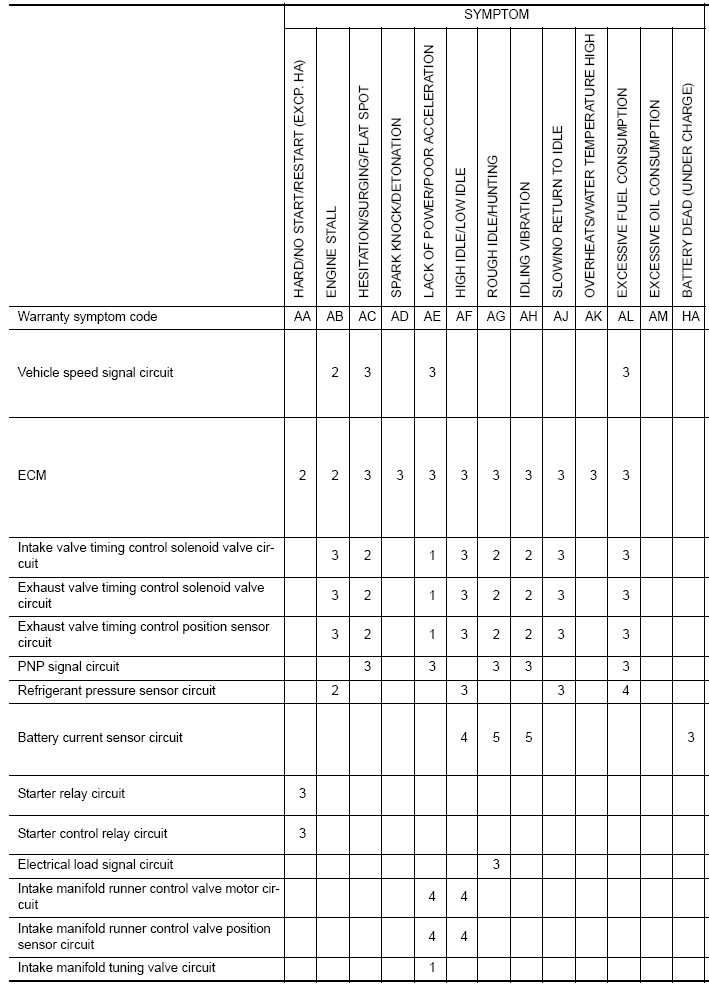

Fig 2: Engine Control System Symptom Chart (2 Of 3)
G08989374Courtesy of NISSAN NORTH AMERICA, INC.

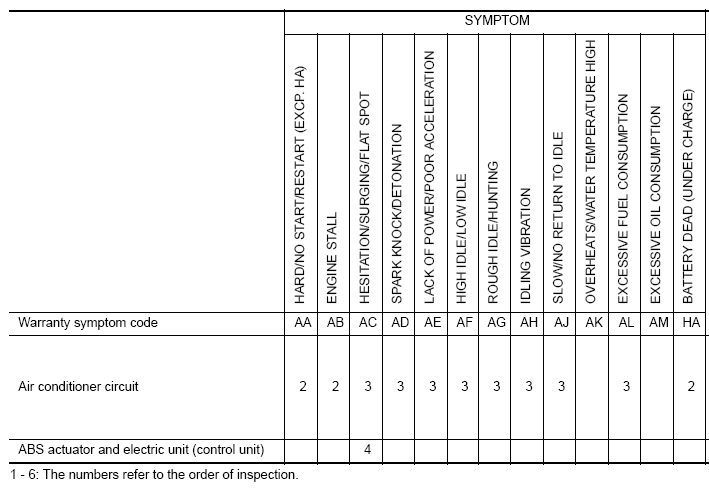

Fig 3: Engine Control System Symptom Chart (3 Of 3)
G08989375Courtesy of NISSAN NORTH AMERICA, INC.
