Exploded View

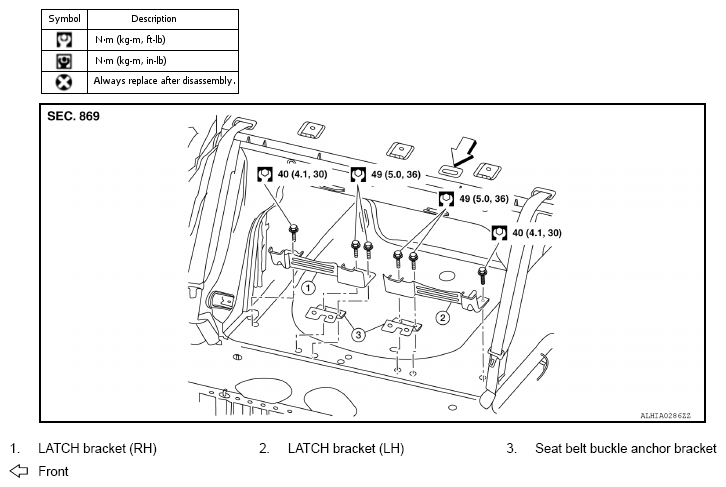

Fig 1: Exploded View Of Latch System (For Children) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
