Connector End Views

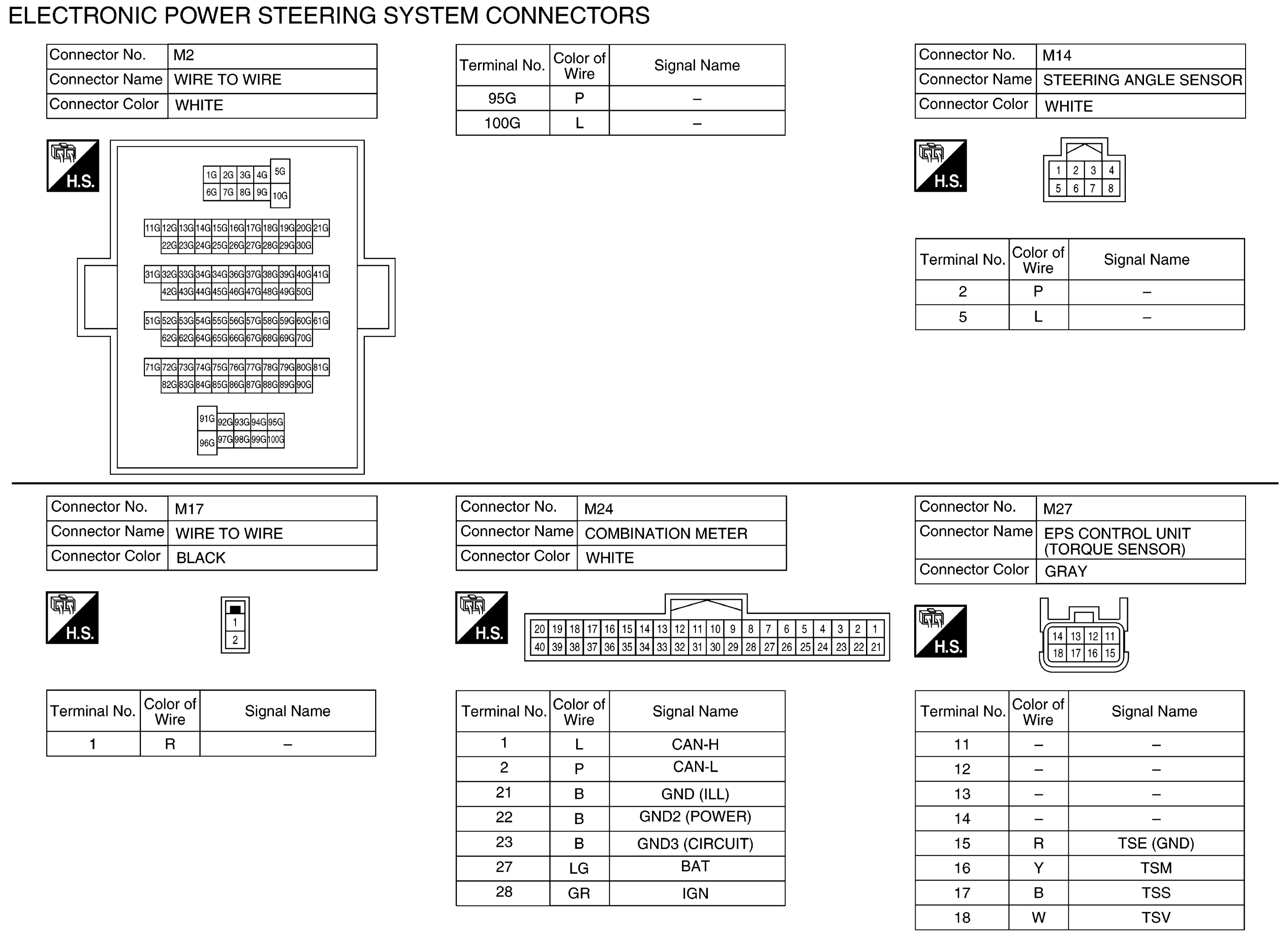

Fig 1: Electronic Power Steering System Connector End Views (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

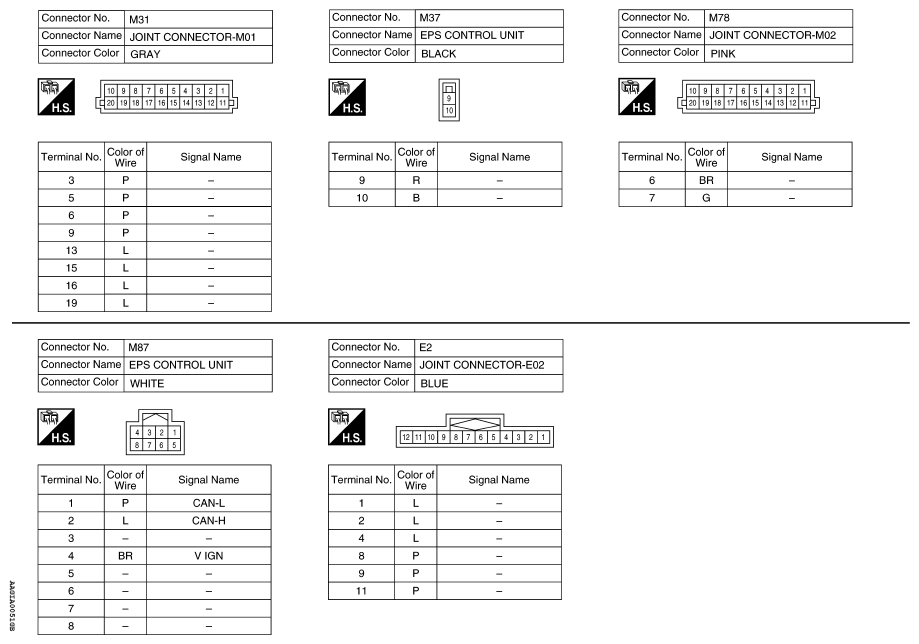

Fig 2: Electronic Power Steering System Connector End Views (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Electronic Power Steering System Connector End Views (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
