LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Nissan-Datsun
>>
2013
>>
Sentra SL
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Steering System
>>
Removal And Installation
>>
Steering Column
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View

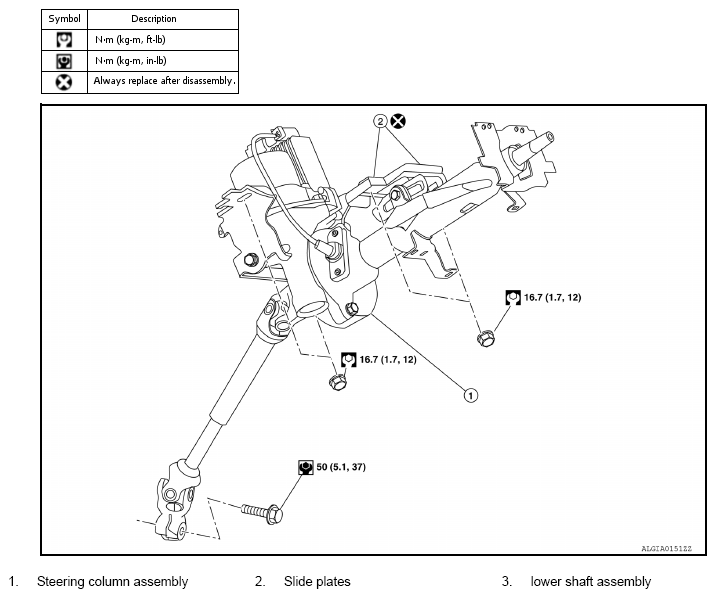

Fig 1: Exploded View Of Steering Column With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
