Removal and Installation: Removal

  1. Remove front power window and door lock/unlock switch (RH) finisher assembly using a suitable tool (A).

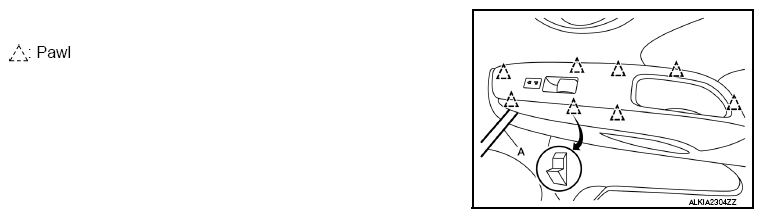

    Fig 1: Removing Front Power Window Switch And Pawls (RH)
    G09052270Courtesy of NISSAN NORTH AMERICA, INC.
  2. Disconnect the harness connector from the front power window and door lock/unlock switch (RH).
  3. Separate front power window and door lock/unlock switch (1) from front power window and door lock/unlock switch (RH) finisher using a suitable tool.
    CAUTION: Do not bend back the pawls on the switch finisher too far or breakage may occur.

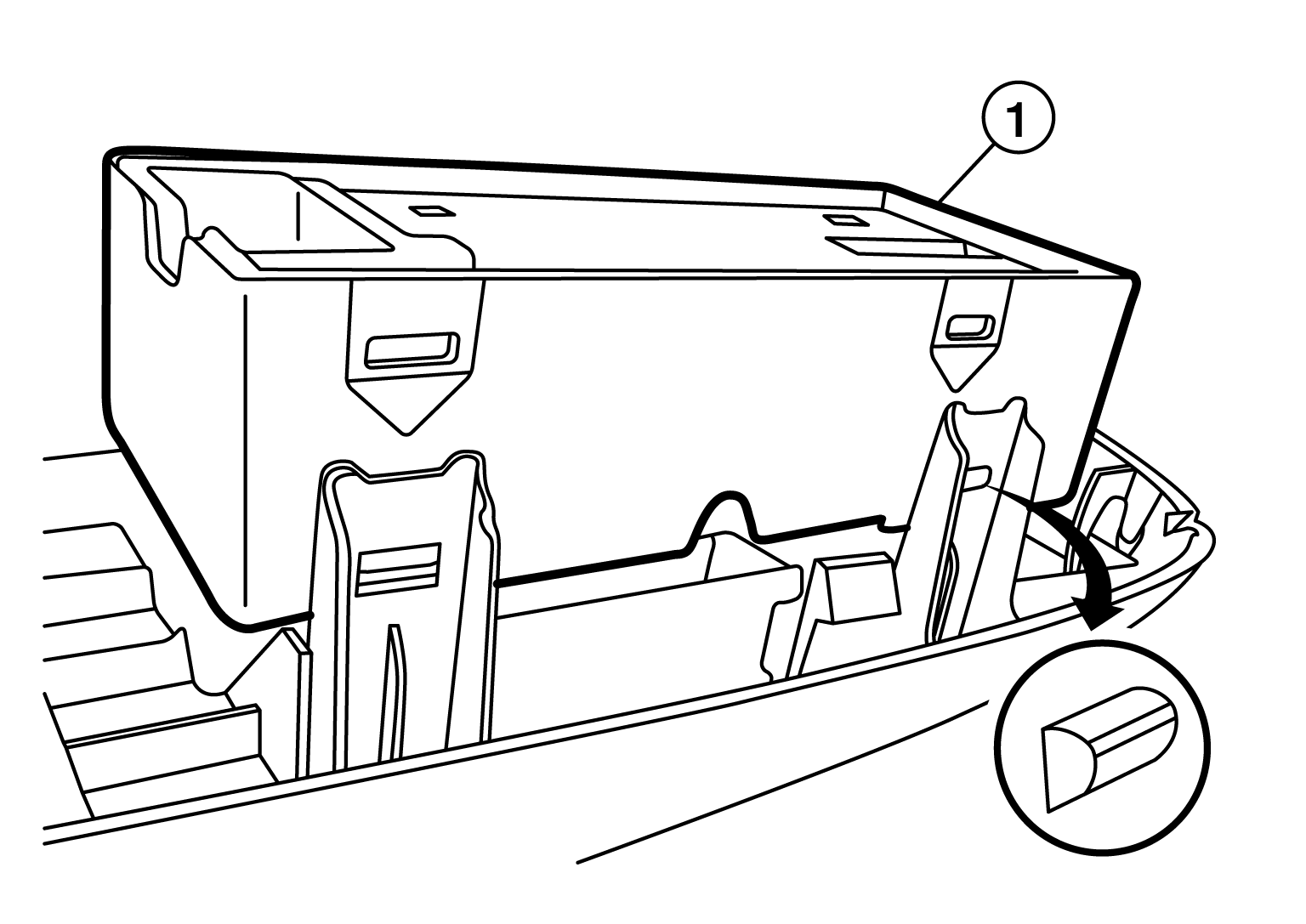

    Fig 2: Removing Front Power Window Switch
    G08204188Courtesy of NISSAN NORTH AMERICA, INC.
