Removal and Installation: Removal

  1. Remove main power window and door lock/unlock switch finisher assembly using a suitable tool (A).

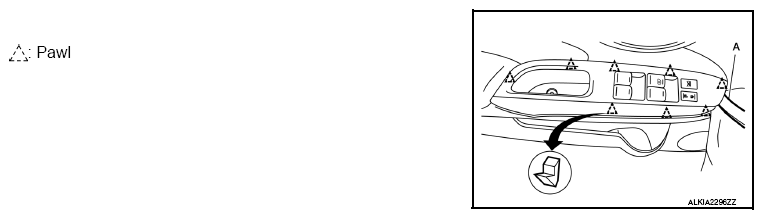

    Fig 1: Removing Door Lock/Unlock Switch Finisher Assembly Using Tool
    G09052268Courtesy of NISSAN NORTH AMERICA, INC.
  2. Disconnect the harness connector from the main power window and door lock/unlock switch.
  3. Separate main power window and door lock/unlock switch (1) from main power window and door lock/unlock switch finisher using a suitable tool.
    CAUTION: Do not bend back the pawls on the switch finisher too far or breakage may occur.

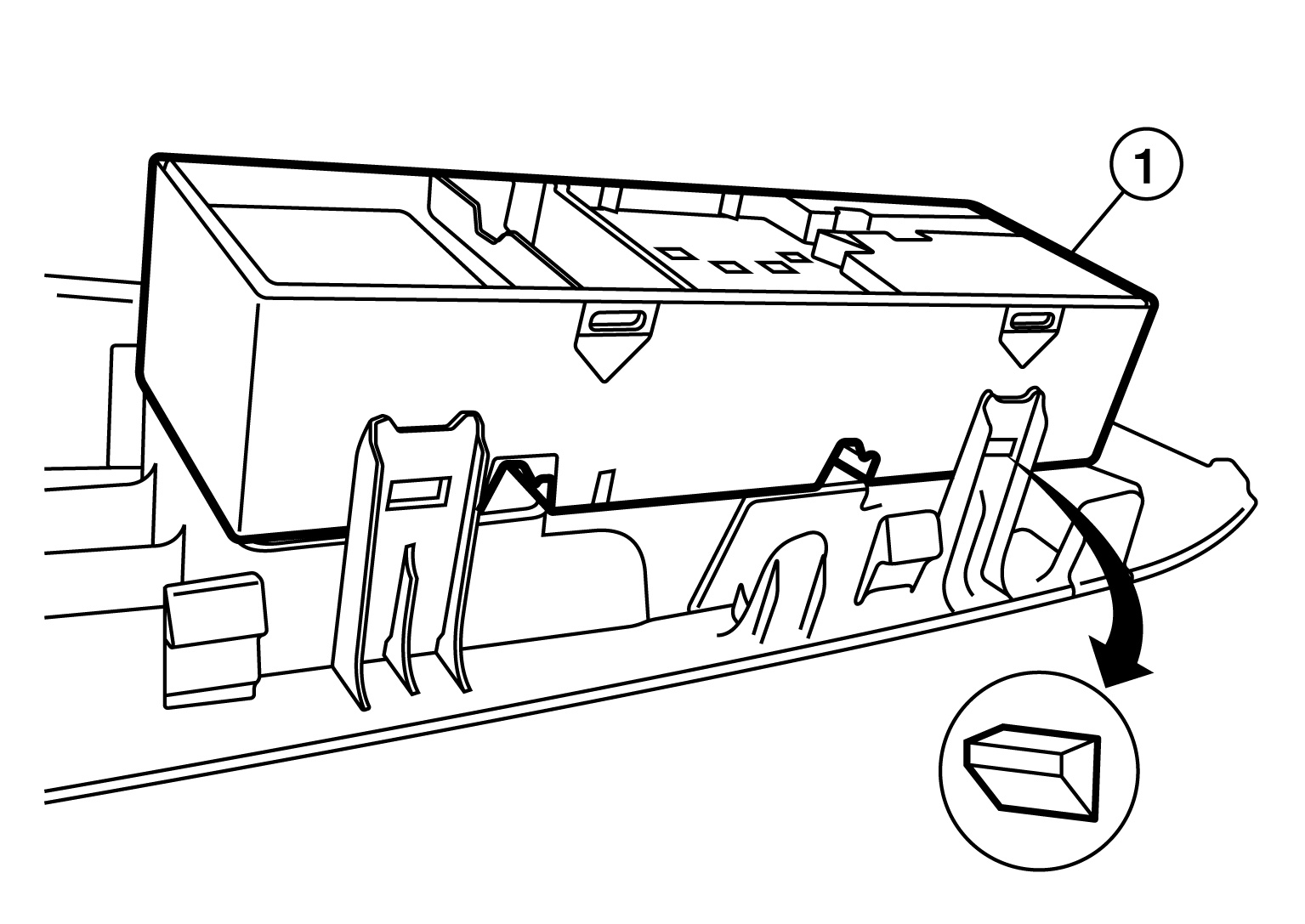

    Fig 2: Removing Main Power Window And Door Lock/Unlock Switch
    G08204186Courtesy of NISSAN NORTH AMERICA, INC.
