DTC&SRT Confirmation Mode

SRT STATUS Mode

For items whose SRT codes are set, "CMPLT" is displayed on the CONSULT screen; for items whose SRT codes are not set, "INCMP" is displayed.

"SRT STATUS" provides the presence or absence of permanent DTCs stored in ECM memory.

PERMANENT DTC STATUS Mode

How to display permanent DTC status

Turn ignition switch OFF and wait at least 10 seconds.
Turn ignition switch ON.
Turn ignition switch OFF and wait at least 10 seconds.
Turn ignition switch ON.

Select "PERMANENT DTC STATUS" in "DTC&SRT CONFIRMATION" mode with CONSULT.

NOTE: Permanent DTCs stored in ECM memory are displayed on the CONSULT screen to show if a driving pattern required for erasing permanent DTCs is complete (CMPLT) or incomplete (INCMP).

CAUTION: Since the "PERMANENT DTC STATUS" screen displays the previous trip information, repeat the following twice to update the information: "Ignition switch OFF", "Wait for more than 10 seconds" and "Ignition switch ON".

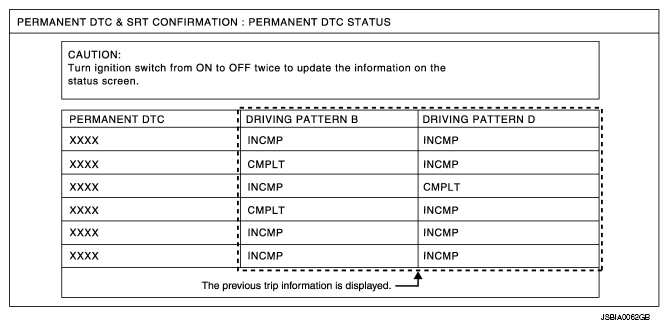

Fig 1: Permanent DTC Status Chart Screen Display

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: This mode is not used in regions that permanent DTCs are not regulated by law.

SRT WORK SUPPORT Mode

This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.

PERMANENT DTC WORK SUPPORT Mode

This mode enables a technician to drive a vehicle to complete the driving pattern that is required for erasing permanent DTC.

NOTE: This mode is not used in regions that permanent DTCs are not regulated by law.

DTC WORK SUPPORT MODE

Test mode	Test item	Corresponding DTC No.	Reference
A/F SEN1	A/F SEN1 (B1) P1276	P0130	"DTC LOGIC "
EVAPORATIVE SYSTEM	EVP V/S LEAK P0456/P1456	P0442	"DTC LOGIC "
	EVP V/S LEAK P0456/P1456	P0456	"DTC LOGIC "
	PURG FLOW P0441	P0441	"DTC LOGIC "
	PURG VOL CN/V P1444	P0443	"DTC LOGIC "
HO2S2	HO2S2 (B1) P1146	P0138	"DTC LOGIC "
	HO2S2 (B1) P1147	P0137	"DTC LOGIC "
	HO2S2 (B1) P0139	P0139	"DTC LOGIC "
