Exploded View

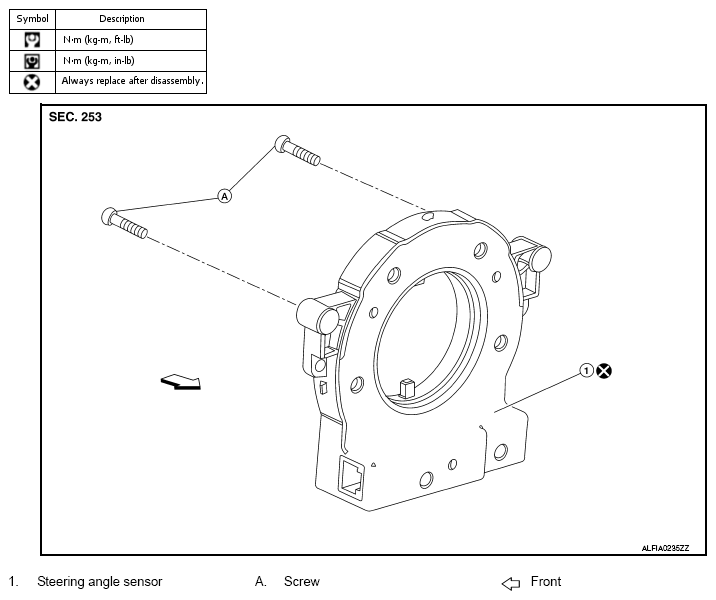

Fig 1: Identifying Steering Angle Sensor And Screw
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
