Disassembly and Assembly: Disassembly

NOTE: Before disassembly, note the proper placement of the wires to the correct terminals and correct wire routing to the terminals.

Disconnect the red, white (A) and double black connector (B).
- Press the tabs on the terminals to release the locking tabs.

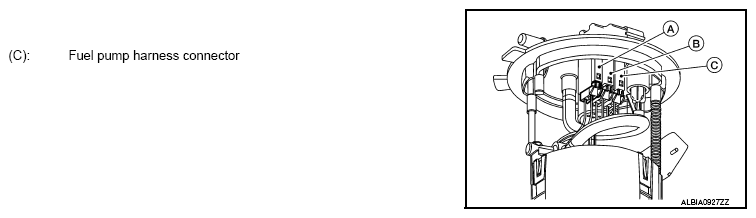

  Fig 1: Identifying Red, White, Double Black Connector And Fuel Pump Harness Connector
  Courtesy of NISSAN NORTH AMERICA, INC.
Release the two clips and remove the fuel temperature sensor from the pump assembly.

Fig 2: Removing Fuel Temperature Sensor From Pump Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Release the tab (A) and slide the level sensor unit module and float arm assembly (B) up to remove.

Fig 3: Removing Slide Level Sending Unit Module And Float Arm Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
