Connector End Views

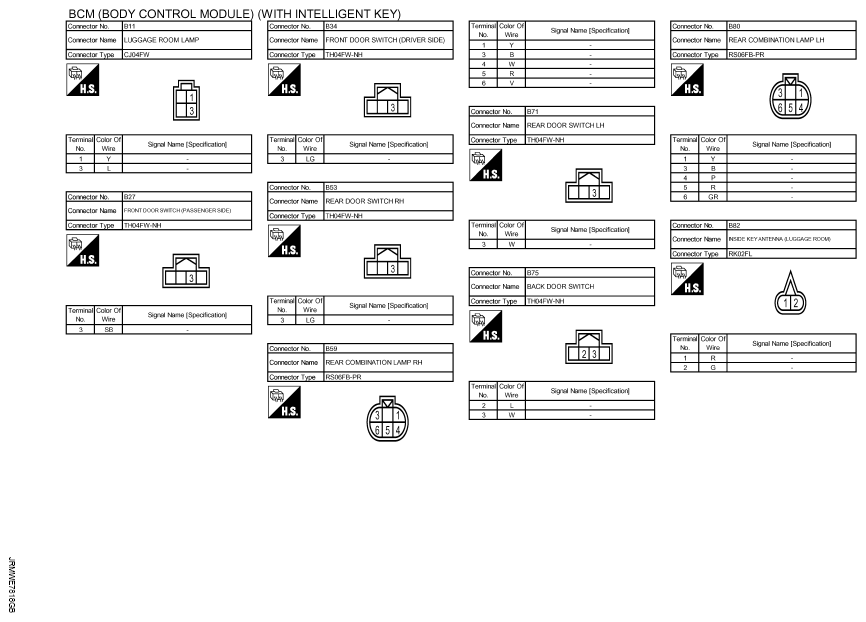

Fig 1: BCM Connector End Views - With Intelligent Key (1 Of 8)
G09520260Courtesy of NISSAN NORTH AMERICA, INC.

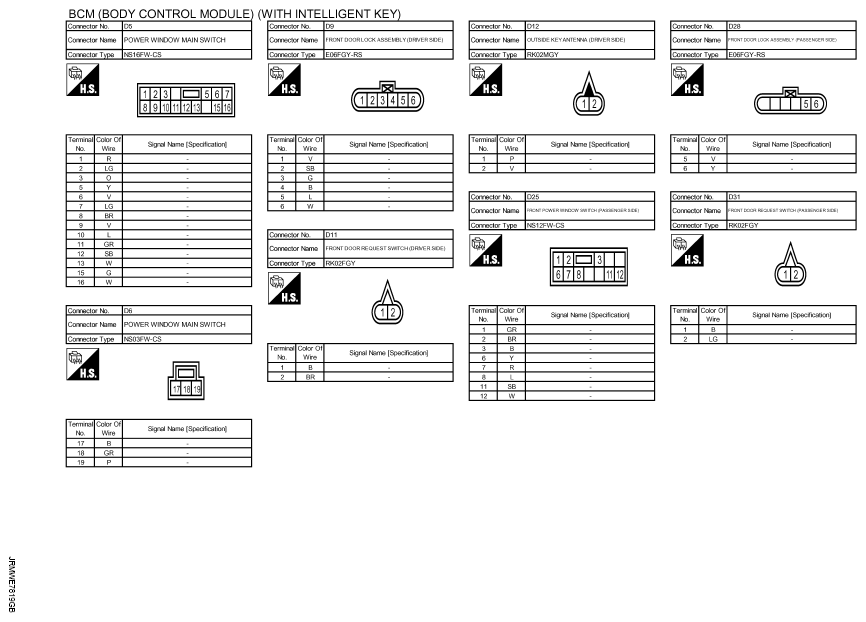

Fig 2: BCM Connector End Views - With Intelligent Key (2 Of 8)
G09520261Courtesy of NISSAN NORTH AMERICA, INC.

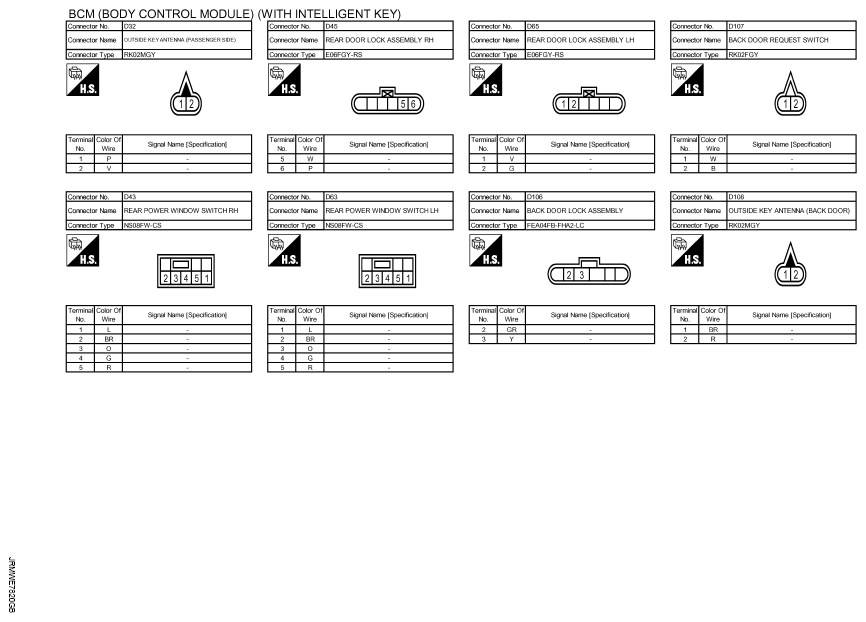

Fig 3: BCM Connector End Views - With Intelligent Key (3 Of 8)
G09520262Courtesy of NISSAN NORTH AMERICA, INC.

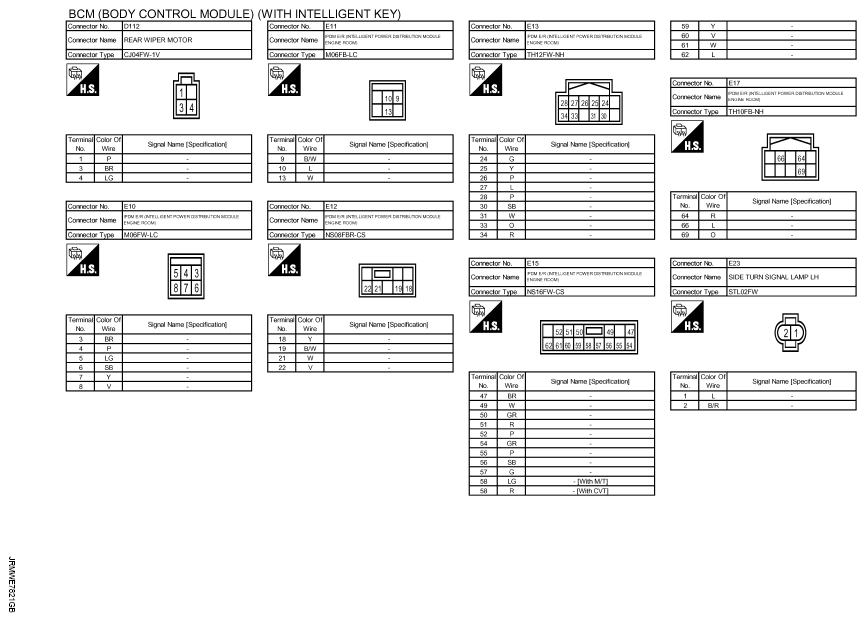

Fig 4: BCM Connector End Views - With Intelligent Key (4 Of 8)
G09520263Courtesy of NISSAN NORTH AMERICA, INC.

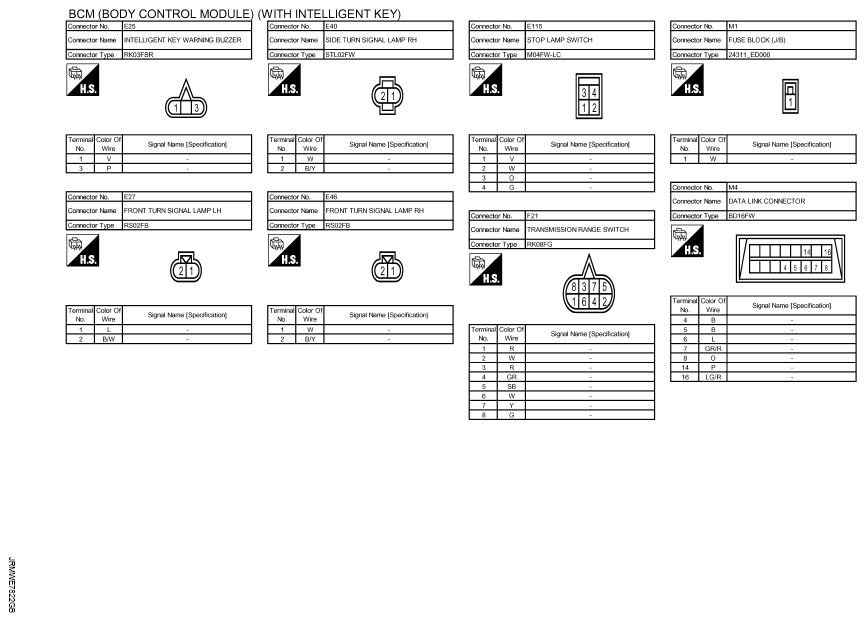

Fig 5: BCM Connector End Views - With Intelligent Key (5 Of 8)
G09520264Courtesy of NISSAN NORTH AMERICA, INC.

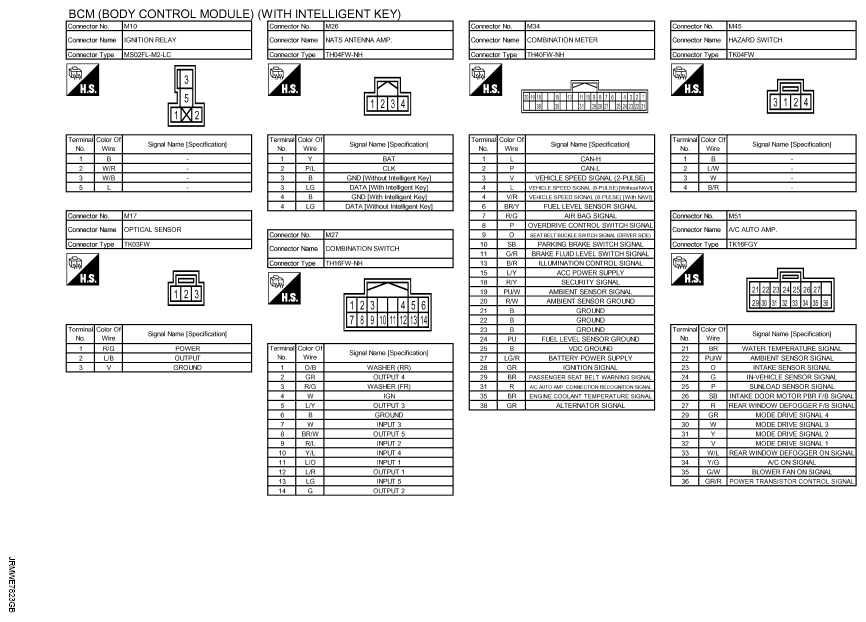

Fig 6: BCM Connector End Views - With Intelligent Key (6 Of 8)
G09520265Courtesy of NISSAN NORTH AMERICA, INC.

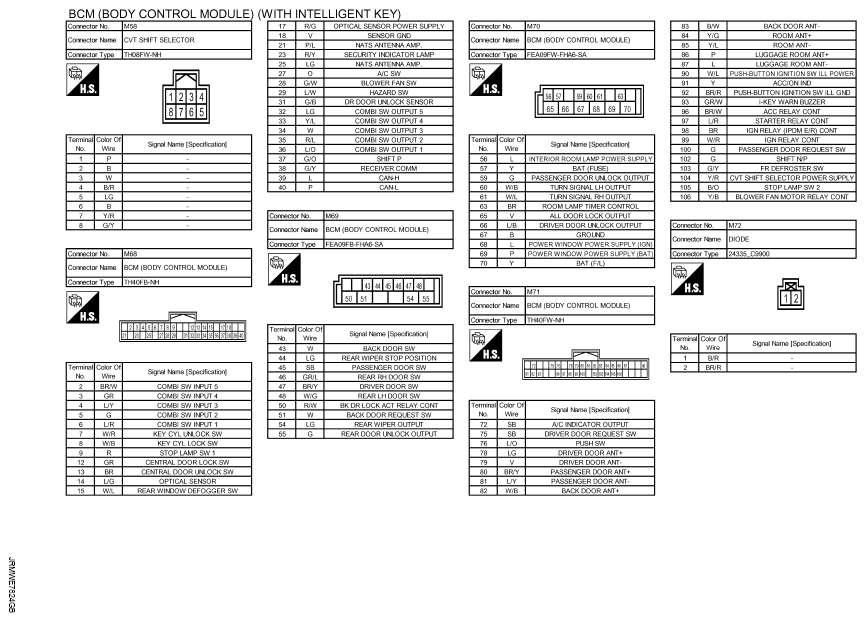

Fig 7: BCM Connector End Views - With Intelligent Key (7 Of 8)
G09520266Courtesy of NISSAN NORTH AMERICA, INC.

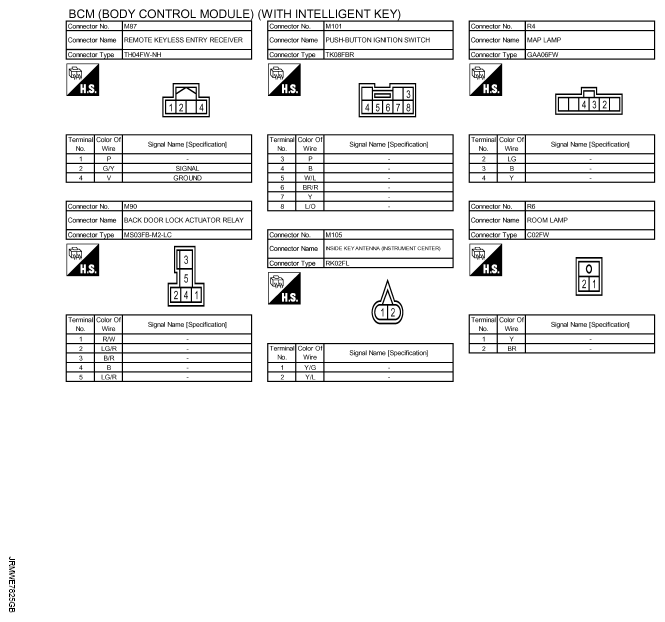

Fig 8: BCM Connector End Views - With Intelligent Key (8 Of 8)
G09520267Courtesy of NISSAN NORTH AMERICA, INC.
