Terminal Layout

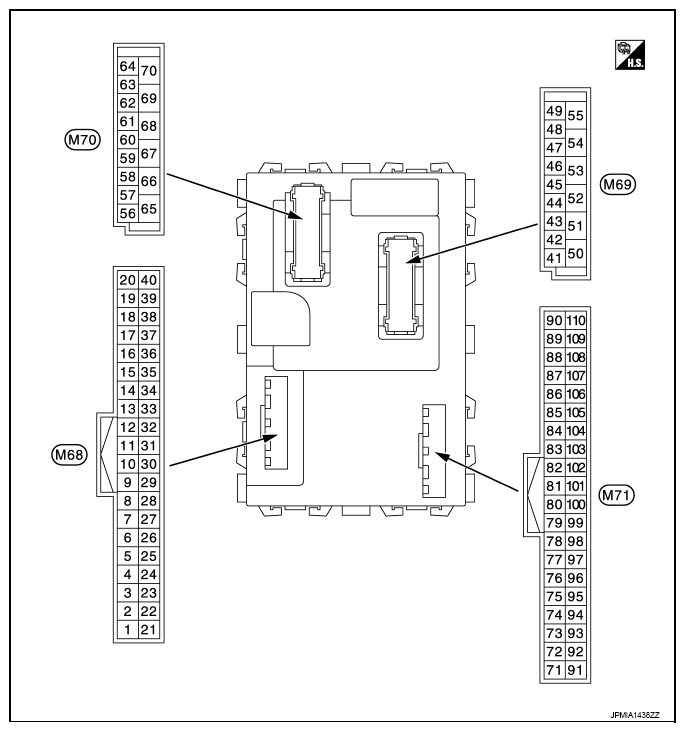

Fig 1: Body Control Module Connector End Views
G09520193Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: Connector color
  • M68, M70: Black
  • M69, M71: White
