Connector End Views

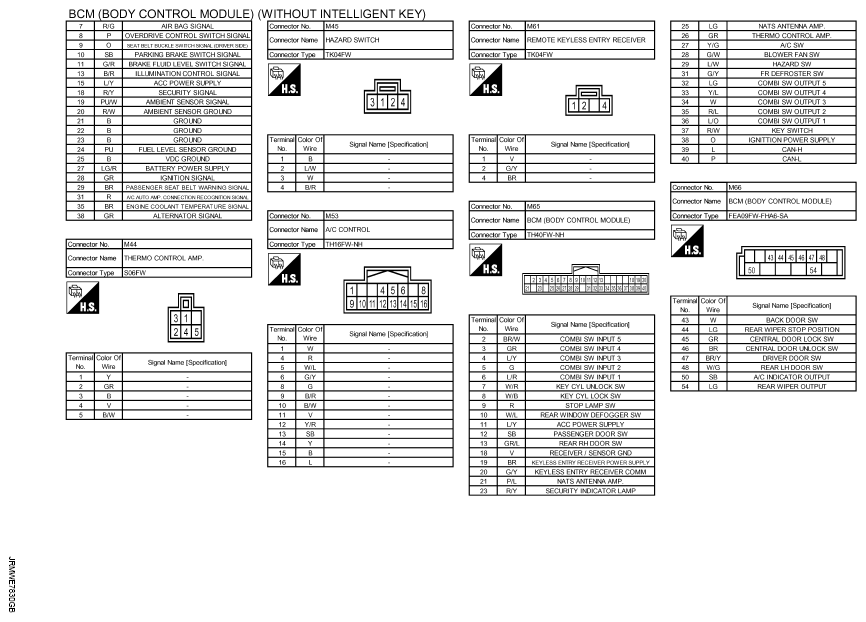

Fig 1: BCM Connector End Views - Without Intelligent Key (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

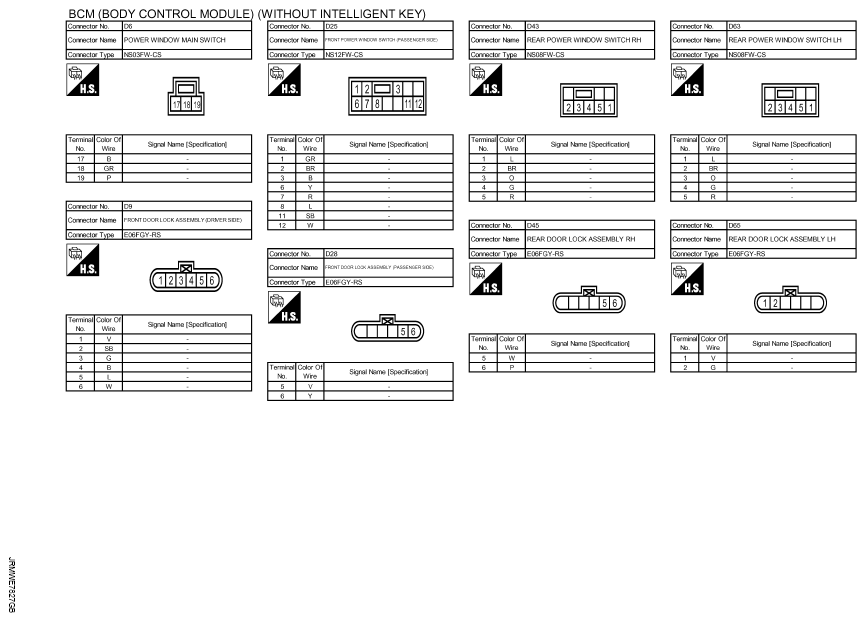

Fig 2: BCM Connector End Views - Without Intelligent Key (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

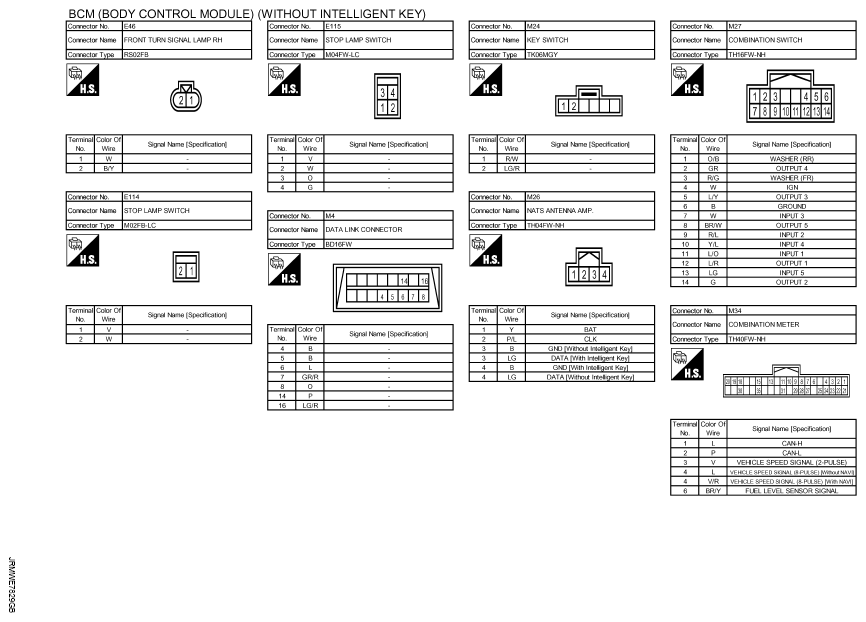

Fig 3: BCM Connector End Views - Without Intelligent Key (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

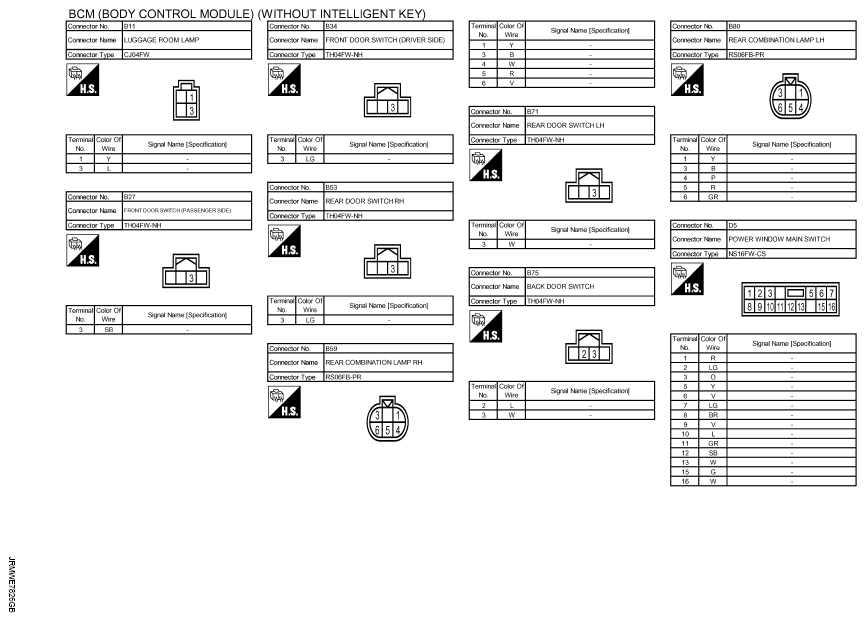

Fig 4: BCM Connector End Views - Without Intelligent Key (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

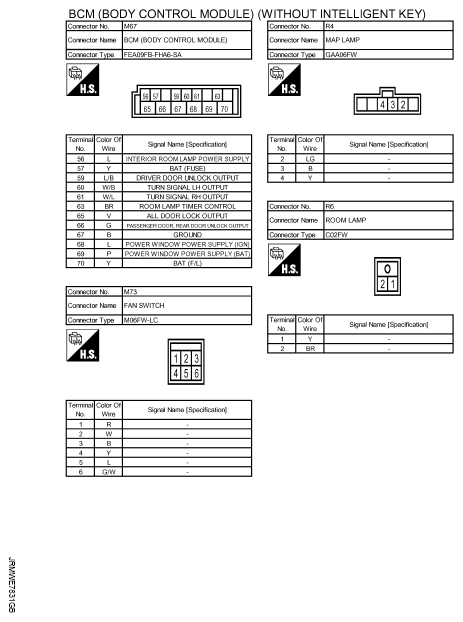

Fig 5: BCM Connector End Views - Without Intelligent Key (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

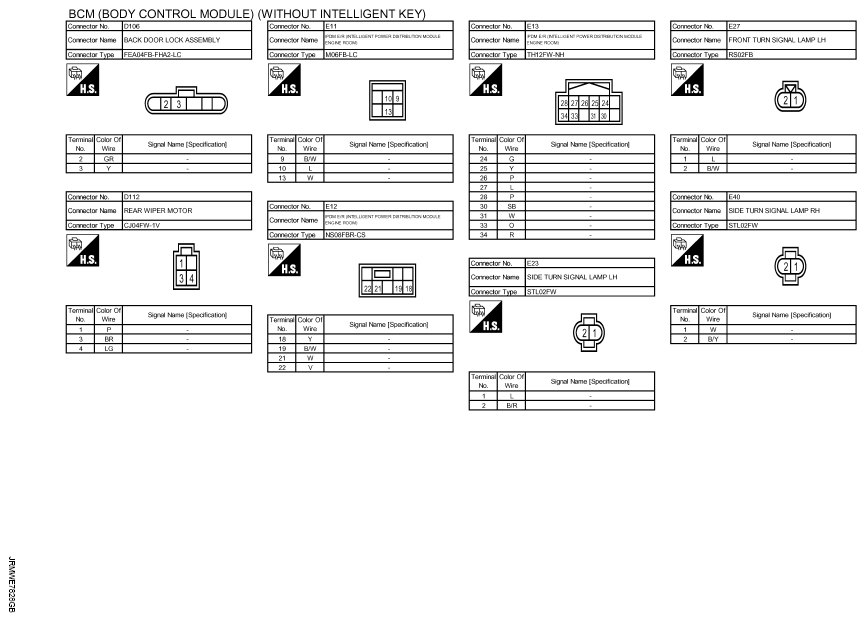

Fig 6: BCM Connector End Views - Without Intelligent Key (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.
