Power Window Control
>>
Ecu Diagnosis Information
>>
BCM (Body Control Module)
>>
Without Intelligent Key
>>
Terminal Layout
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Terminal Layout

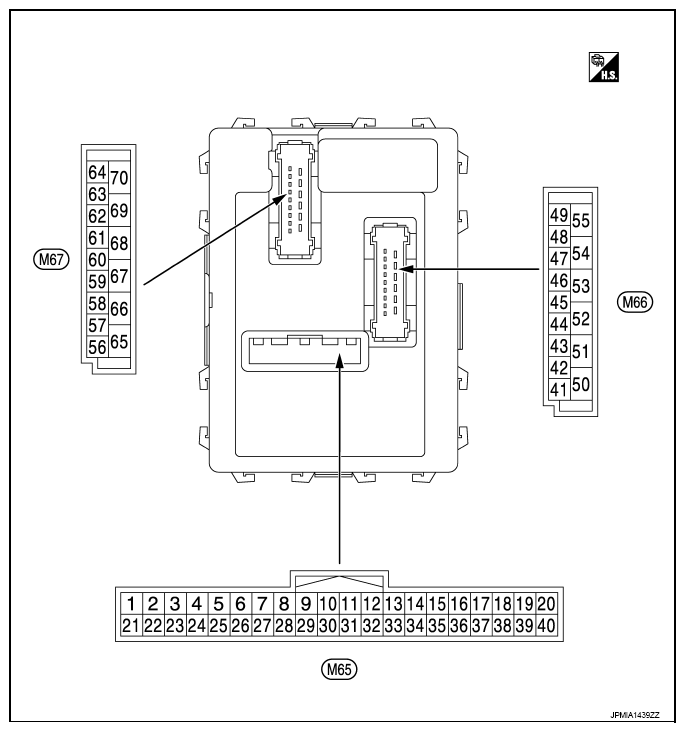

Fig 1: Body Control Module Connector End Views
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
M65, M66: White
M67: Black
Courtesy of NISSAN NORTH AMERICA, INC.
