Connector End Views

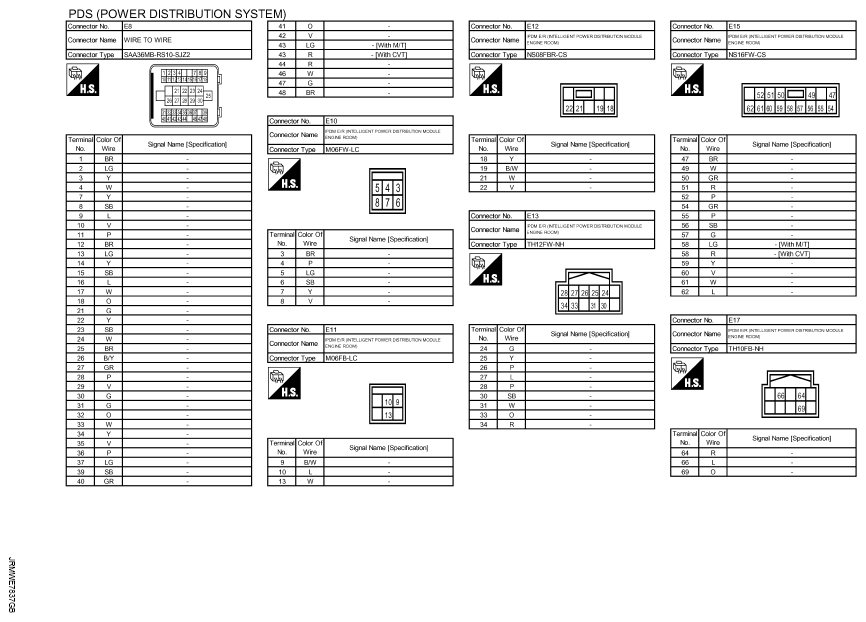

Fig 1: Power Distribution System Connector End Views (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

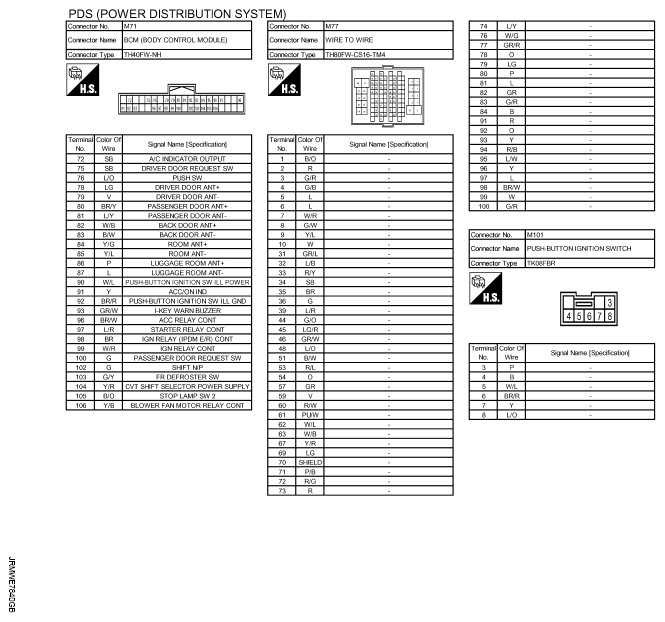

Fig 2: Power Distribution System Connector End Views (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

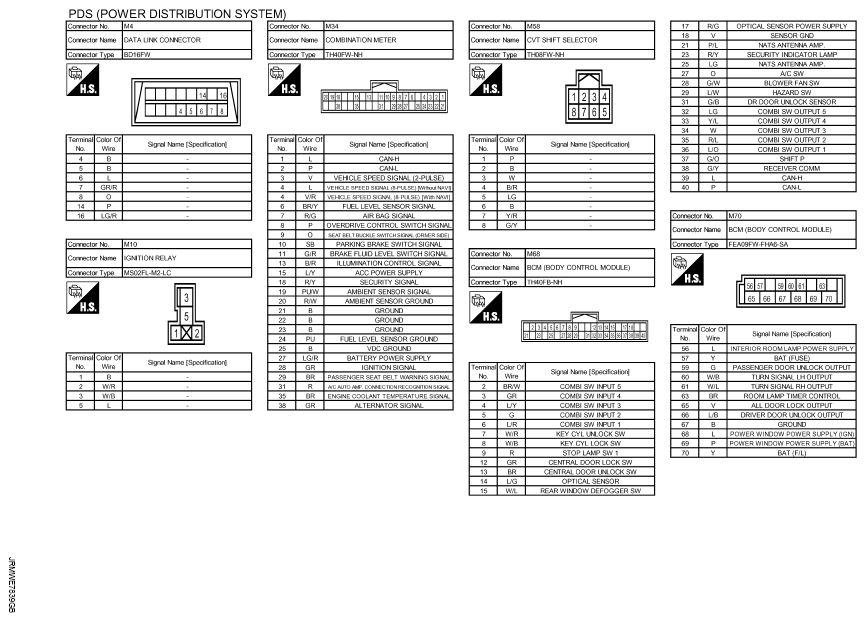

Fig 3: Power Distribution System Connector End Views (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

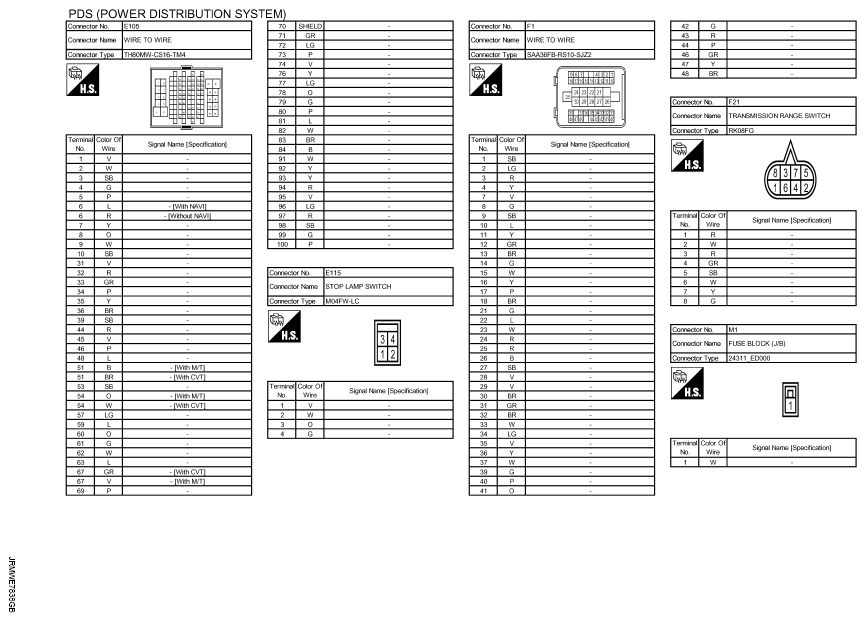

Fig 4: Power Distribution System Connector End Views (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
