IGNITION TIMING: Special Repair Requirement

CHECK IGNITION TIMING
1. Attach timing light to No. 1 ignition coil (1) wire as shown below.

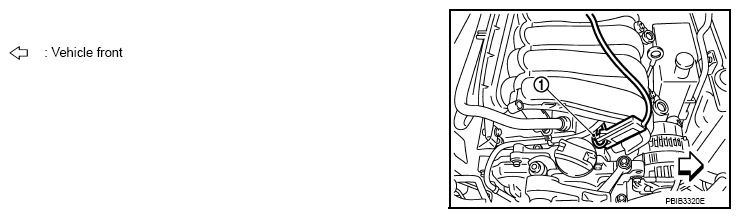

  Fig 1: Identifying Ignition Coil Of Wire
  Courtesy of NISSAN NORTH AMERICA, INC.
2. Check ignition timing.

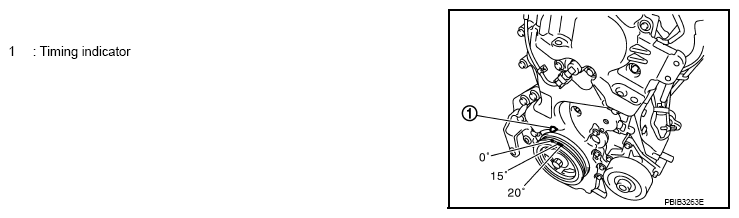

  Fig 2: Identifying Timing Indicator
  Courtesy of NISSAN NORTH AMERICA, INC.

  : INSPECTION END
