Component Parts Location

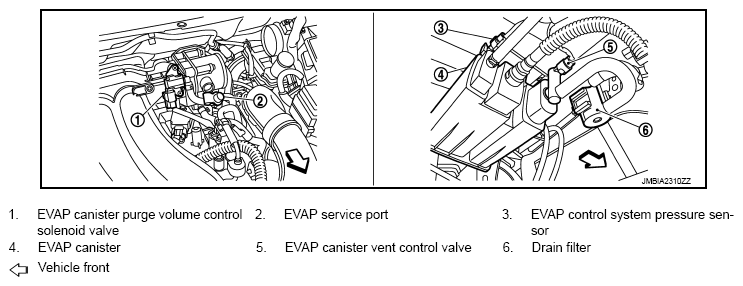

Fig 1: Engine Control System Components Location (1 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

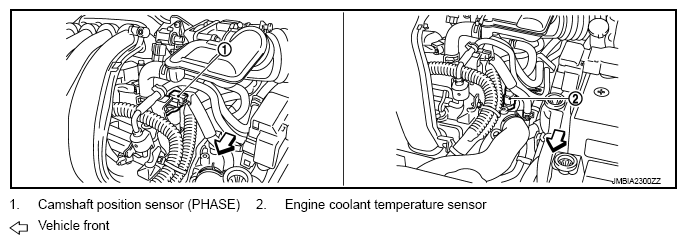

Fig 2: Engine Control System Components Location (2 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

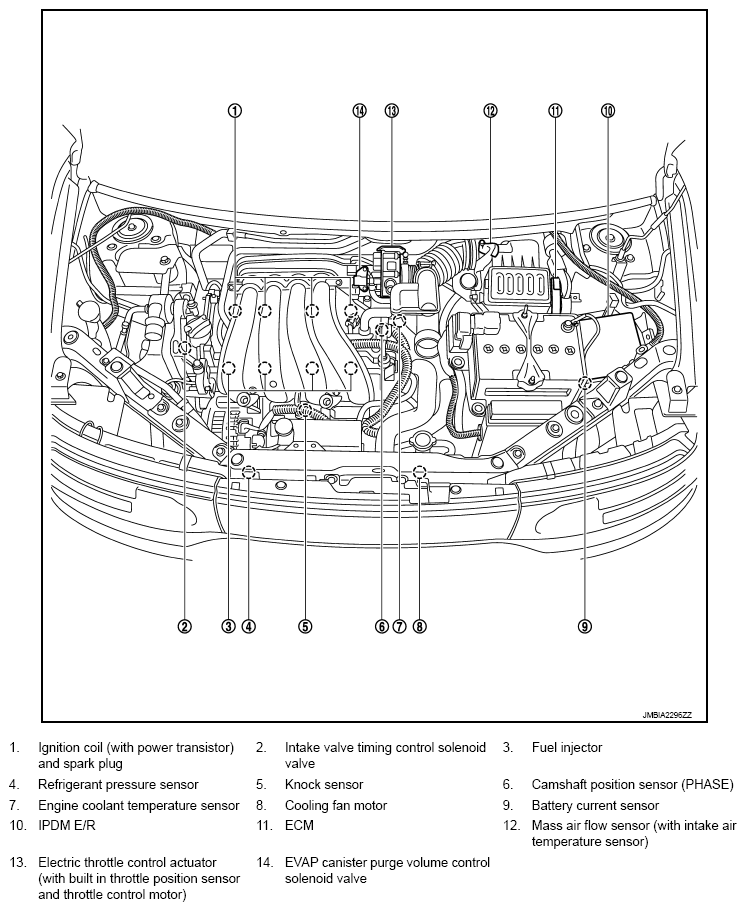

Fig 3: Engine Control System Components Location (3 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Engine Control System Components Location (4 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Engine Control System Components Location (5 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Engine Control System Components Location (6 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Engine Control System Components Location (7 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Engine Control System Components Location (8 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Engine Control System Components Location (9 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Engine Control System Components Location (10 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Engine Control System Components Location (11 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Engine Control System Components Location (12 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Engine Control System Components Location (13 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Engine Control System Components Location (14 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Engine Control System Components Location (15 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Engine Control System Components Location (16 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.
