Component Parts Location

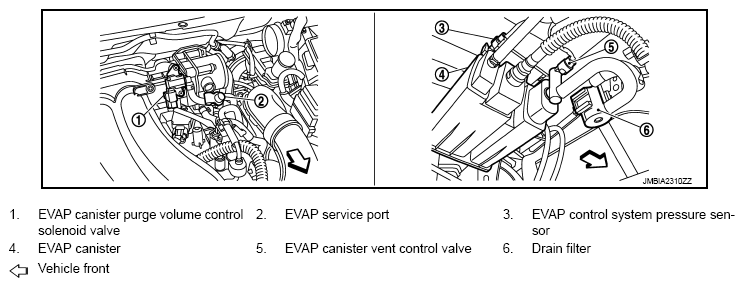

Fig 1: Evaporative Emission System Components Location (1 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

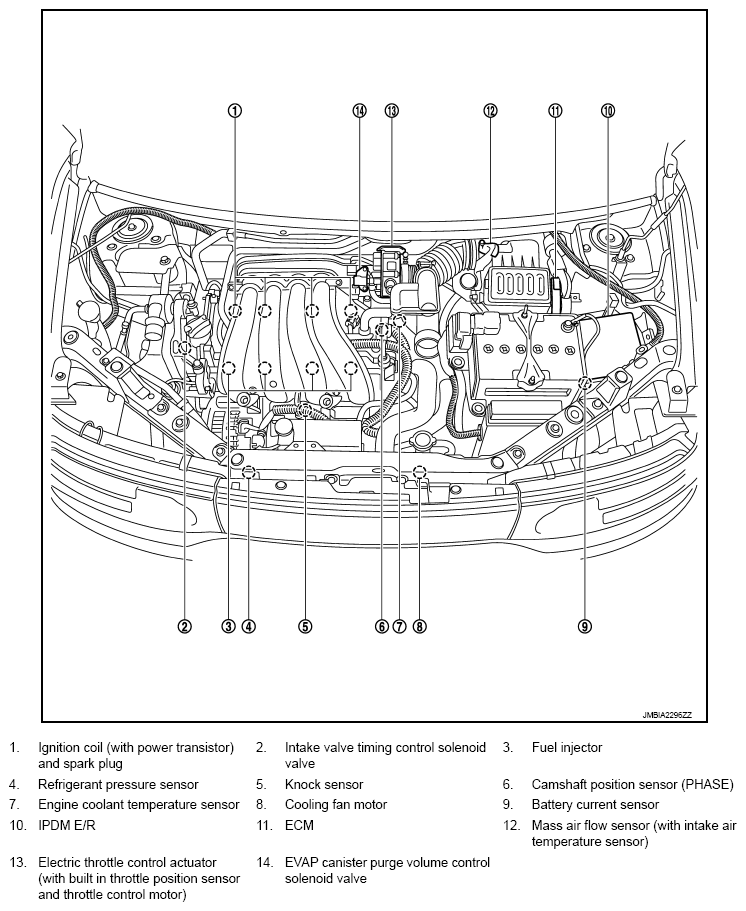

Fig 2: Evaporative Emission System Components Location (2 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

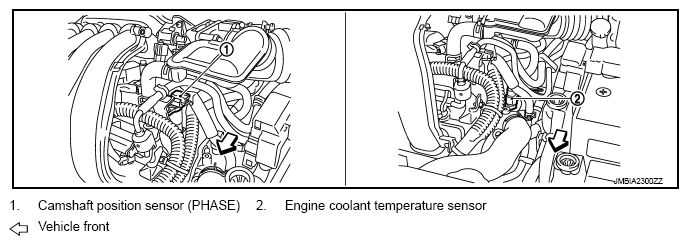

Fig 3: Evaporative Emission System Components Location (3 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Evaporative Emission System Components Location (4 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Evaporative Emission System Components Location (5 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Evaporative Emission System Components Location (6 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Evaporative Emission System Components Location (7 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Evaporative Emission System Components Location (8 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Evaporative Emission System Components Location (9 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Evaporative Emission System Components Location (10 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Evaporative Emission System Components Location (11 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Evaporative Emission System Components Location (12 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Evaporative Emission System Components Location (13 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Evaporative Emission System Components Location (14 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Evaporative Emission System Components Location (15 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Evaporative Emission System Components Location (16 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.
