Connector End Views

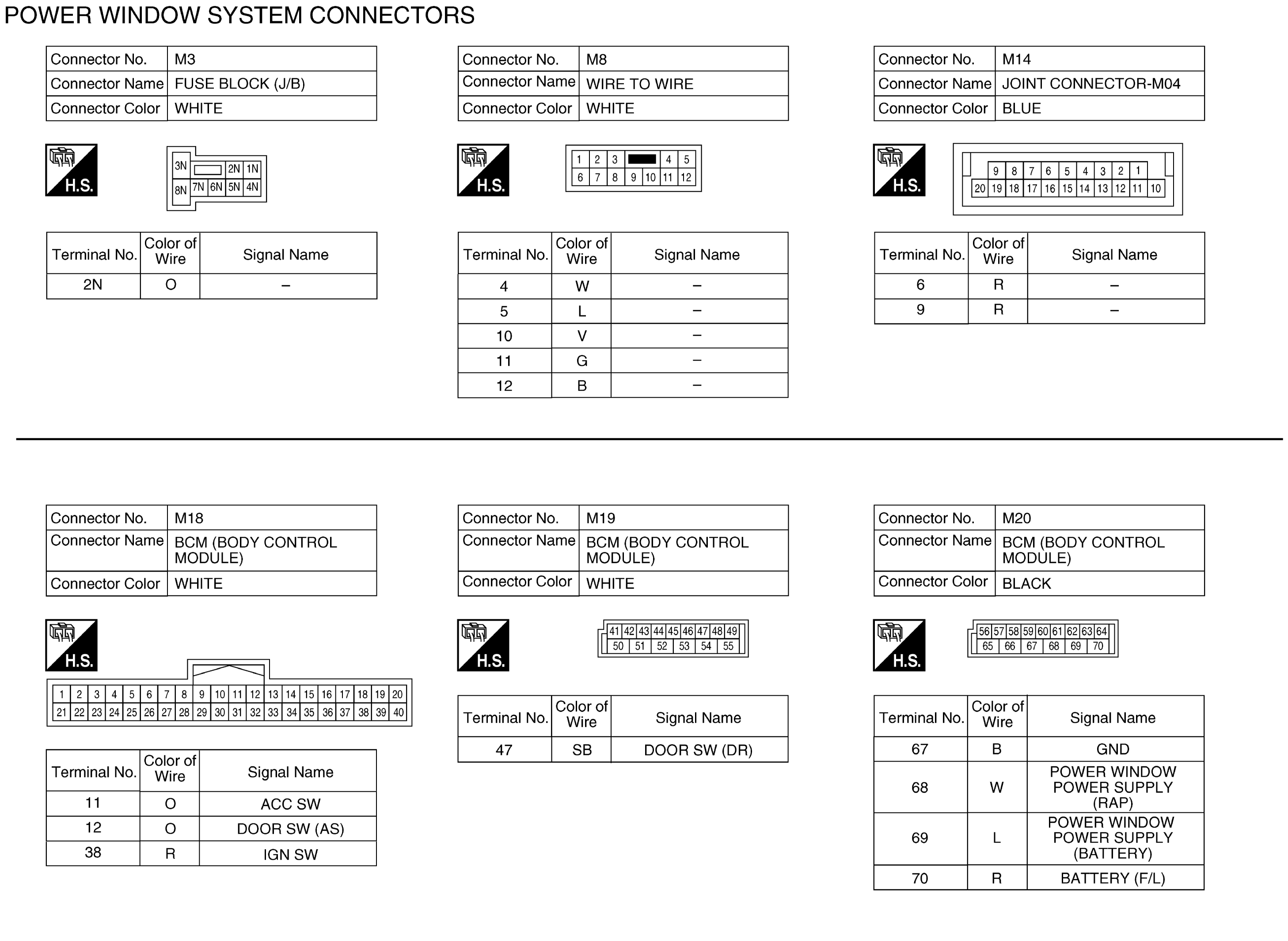

Fig 1: Power Window System Connector End Views (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Power Window System Connector End Views (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Power Window System Connector End Views (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Power Window System Connector End Views (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.
