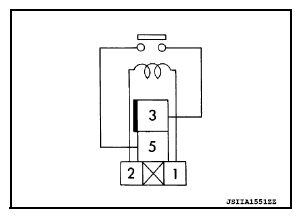

CHECK POWER WINDOW RELAY Check power window relay.
| Terminal |
Condition |
Continuity |
| Power window relay |
| 3 |
5 |
12V direct current supply between terminals 1 and 2. |
Yes |
| No current supply |
No |
Is the inspection result normal?
YES: Inspection End.
NO: Replace power window relay.
Courtesy of NISSAN NORTH AMERICA, INC.
