Connector End Views

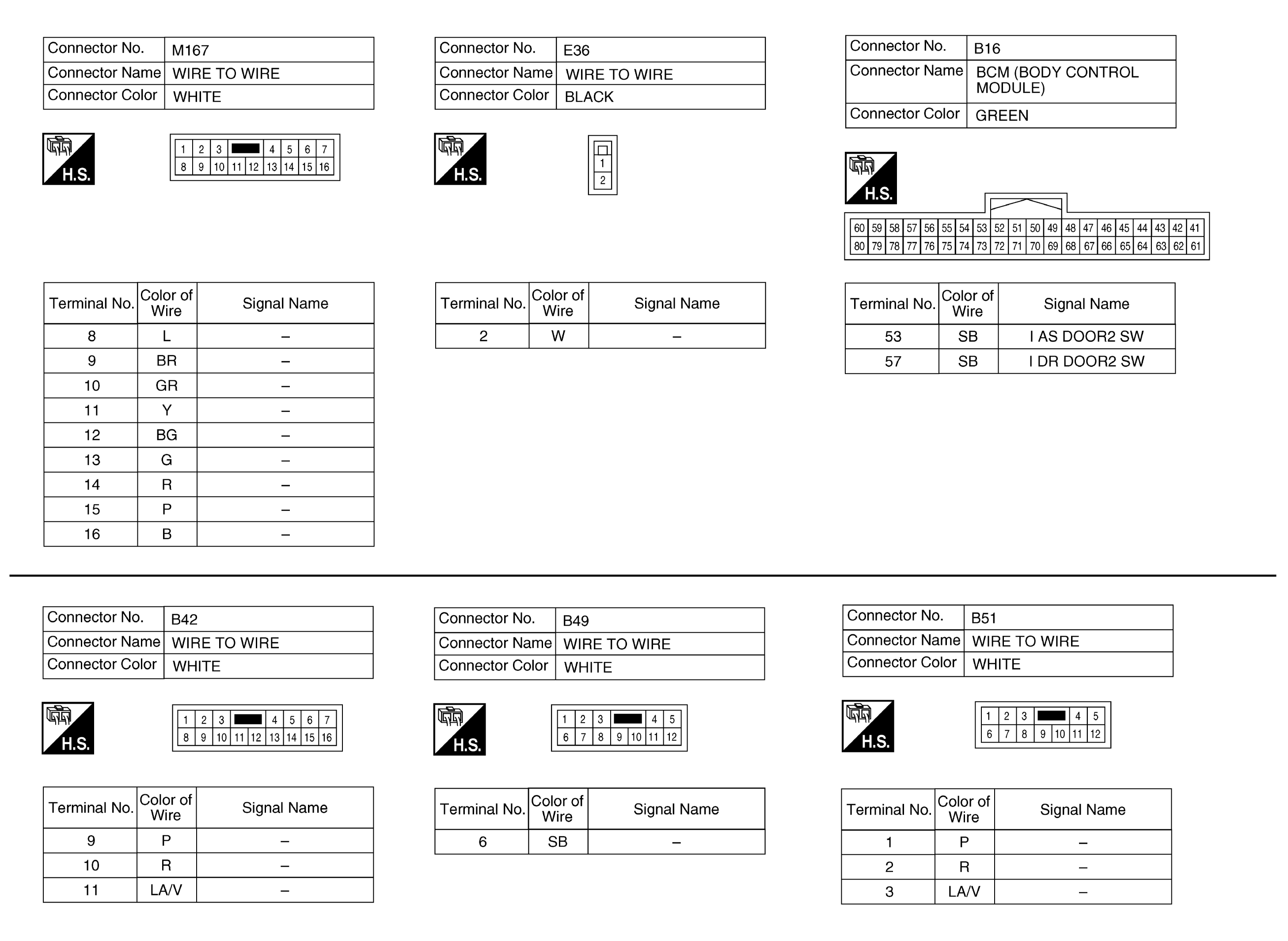

Fig 1: Power Window System Connector End Views (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

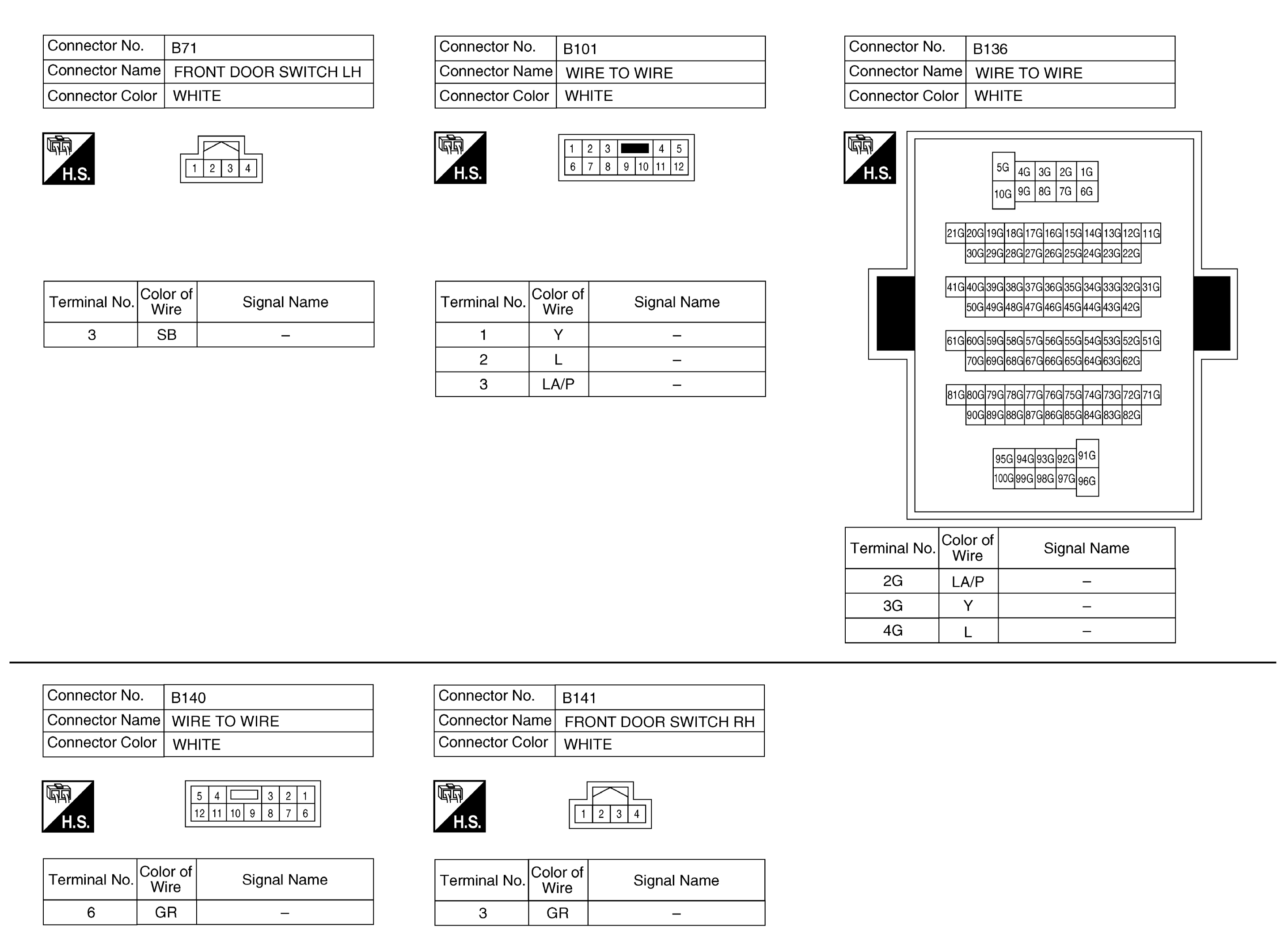

Fig 2: Power Window System Connector End Views (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

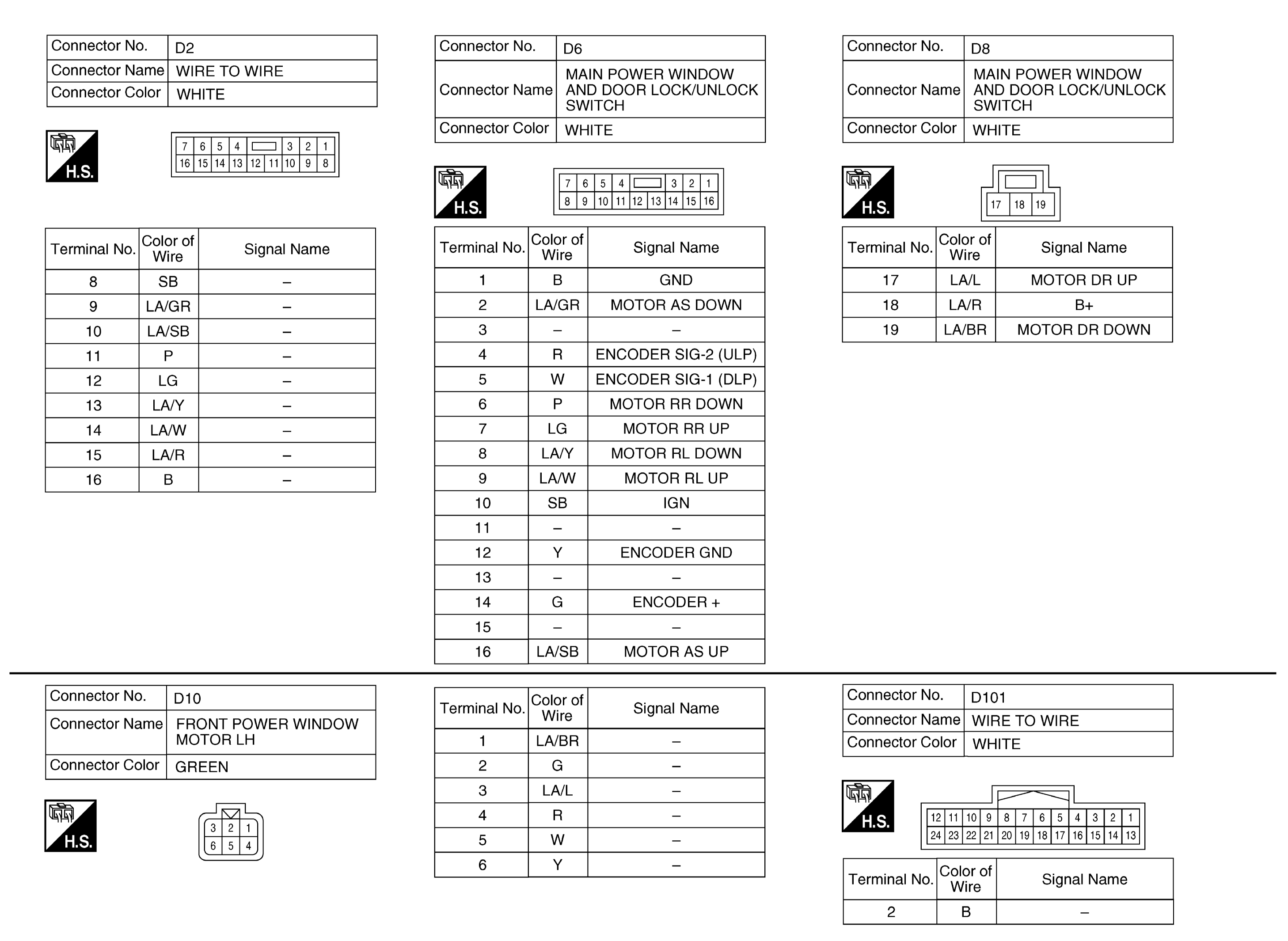

Fig 3: Power Window System Connector End Views (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

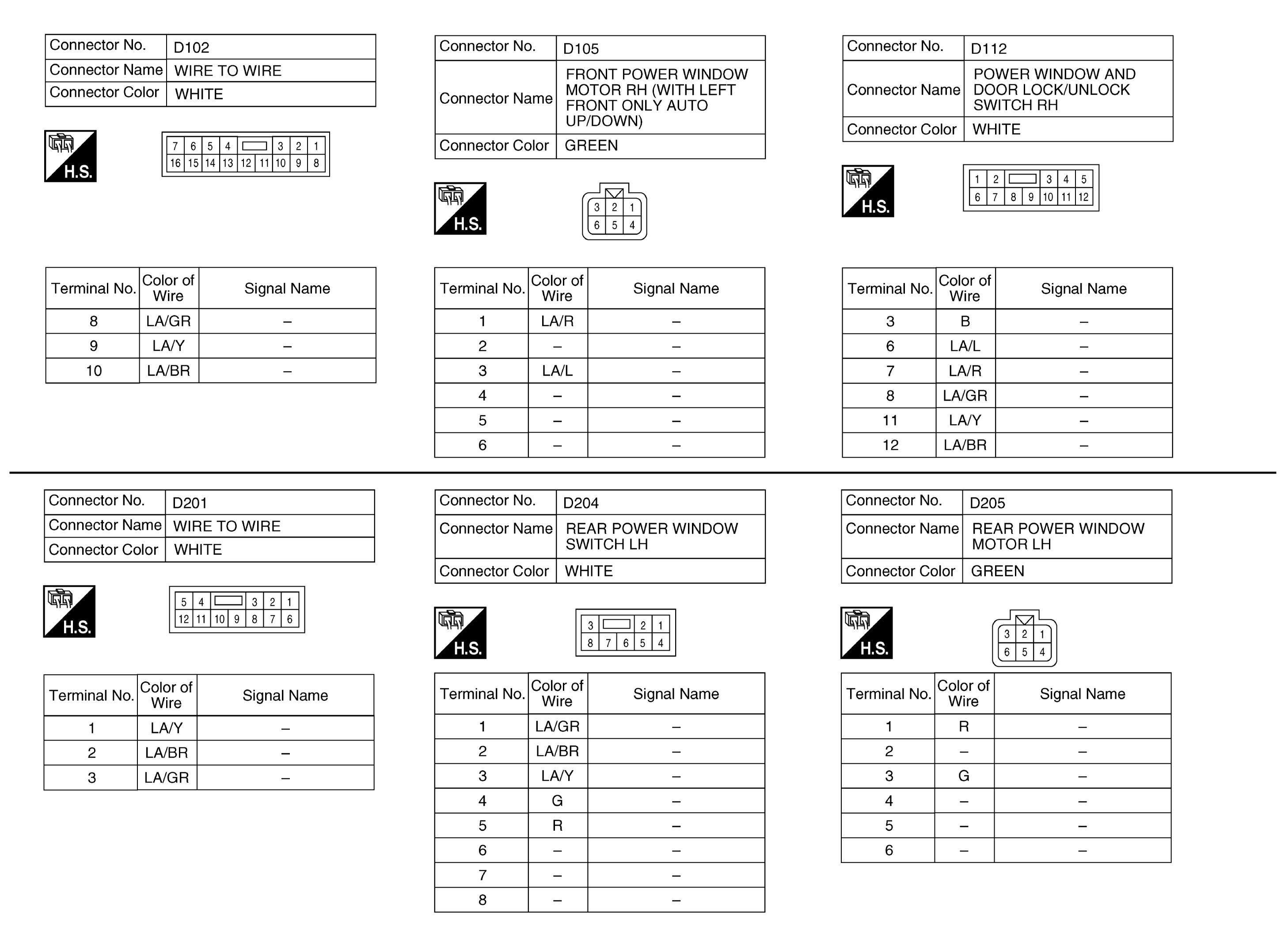

Fig 4: Power Window System Connector End Views (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

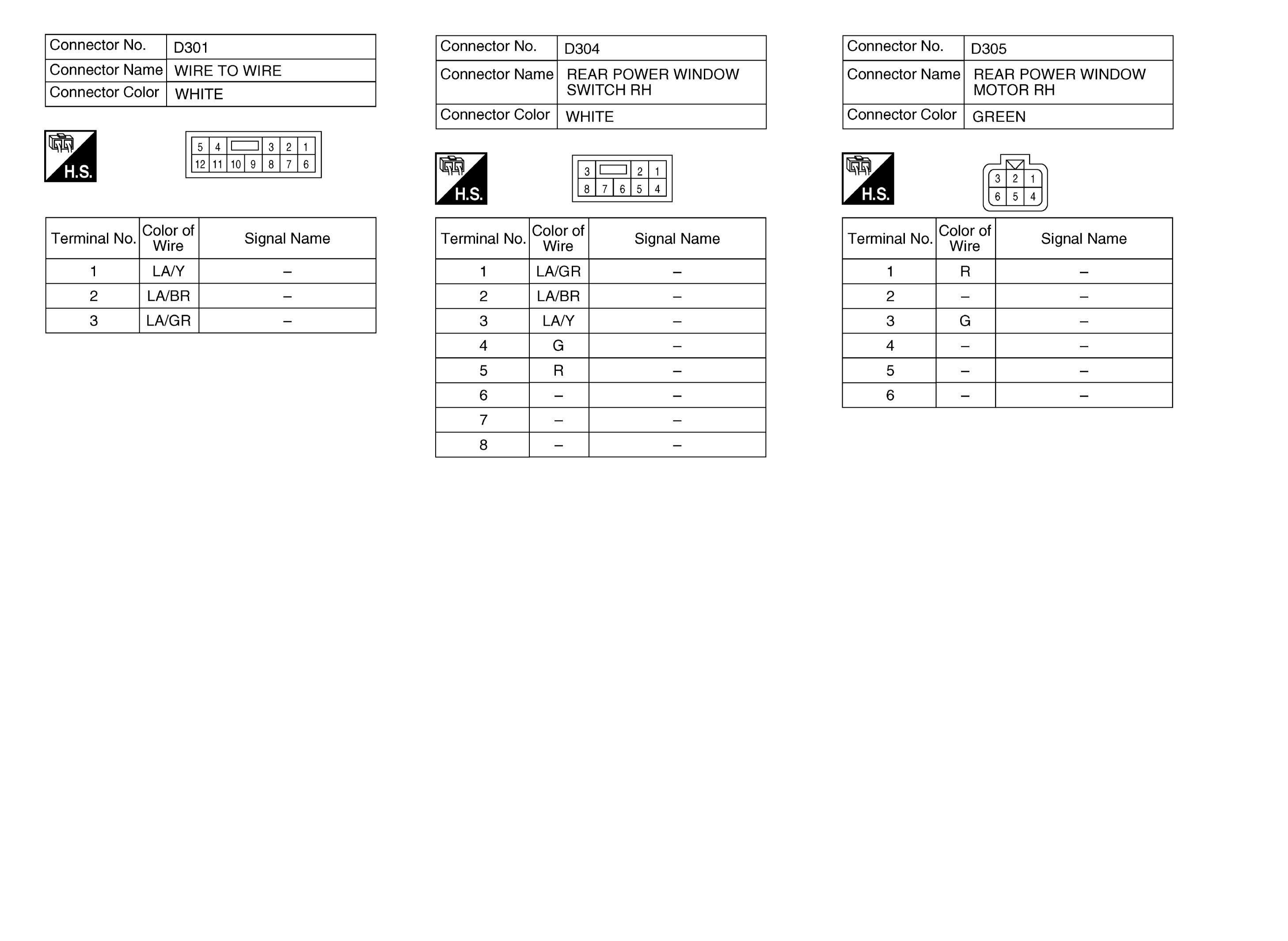

Fig 5: Power Window System Connector End Views (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

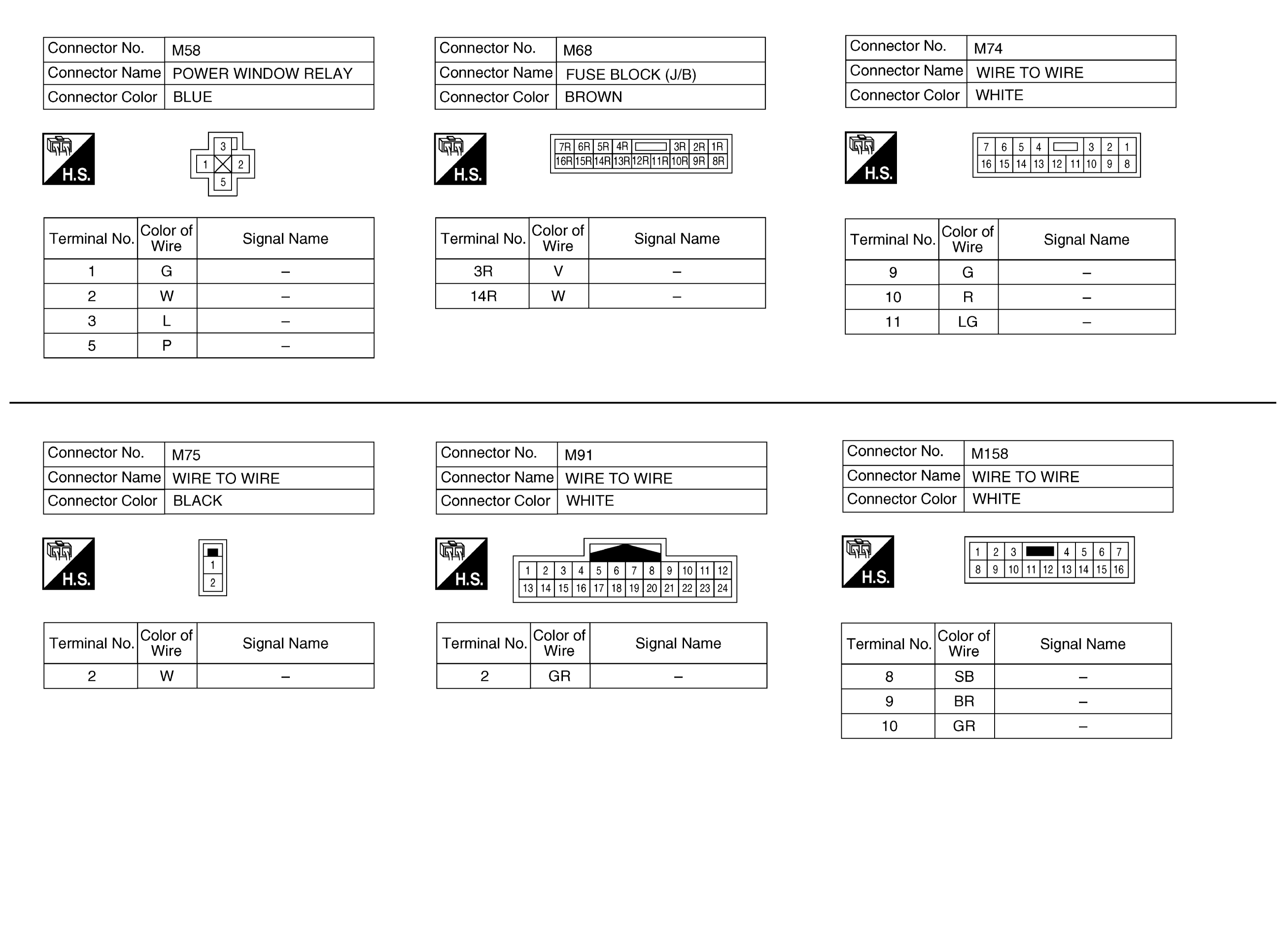

Fig 6: Power Window System Connector End Views (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

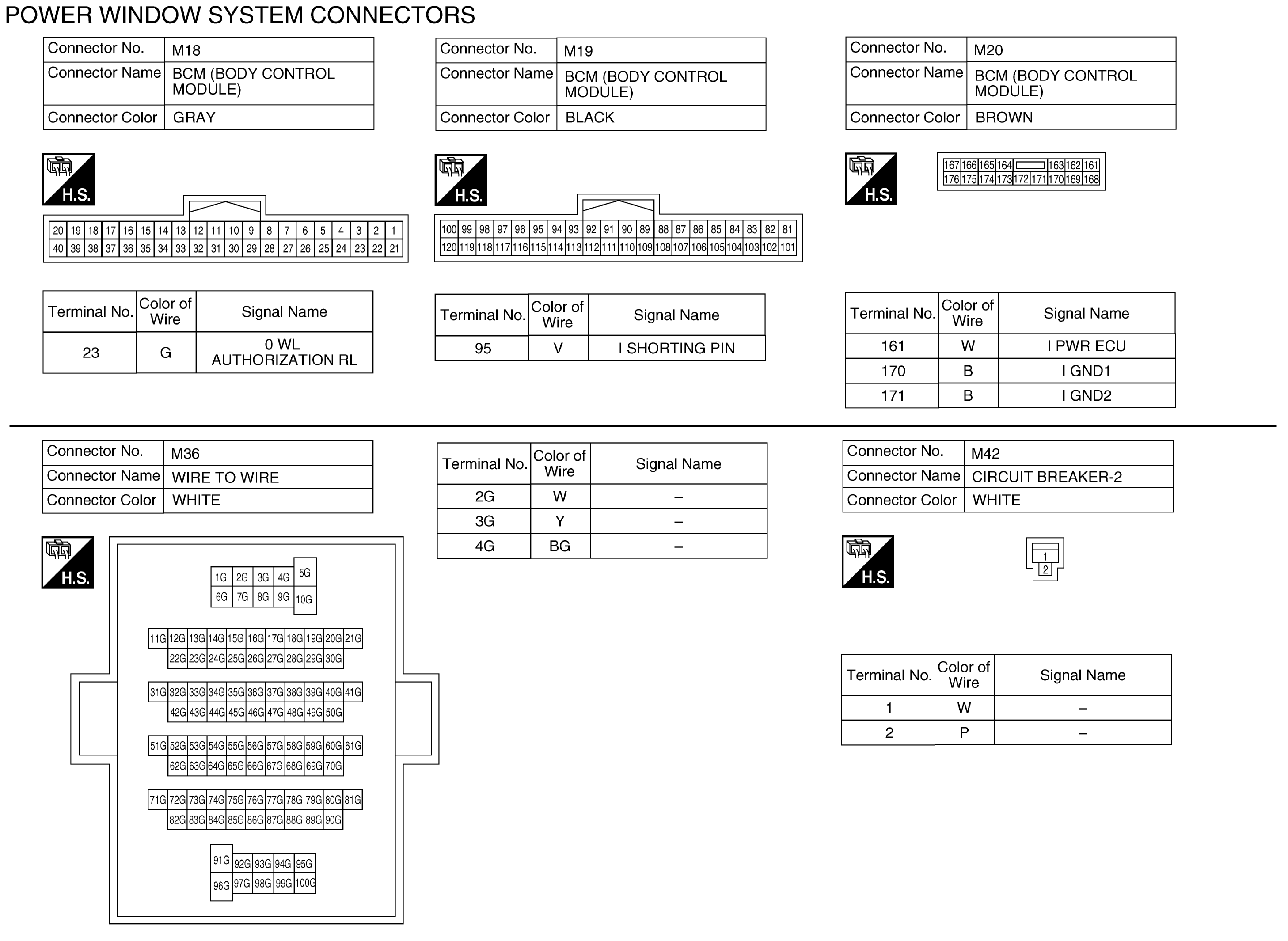

Fig 7: Power Window System Connector End Views (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
