Accelerator Control

Unit: mm (in)

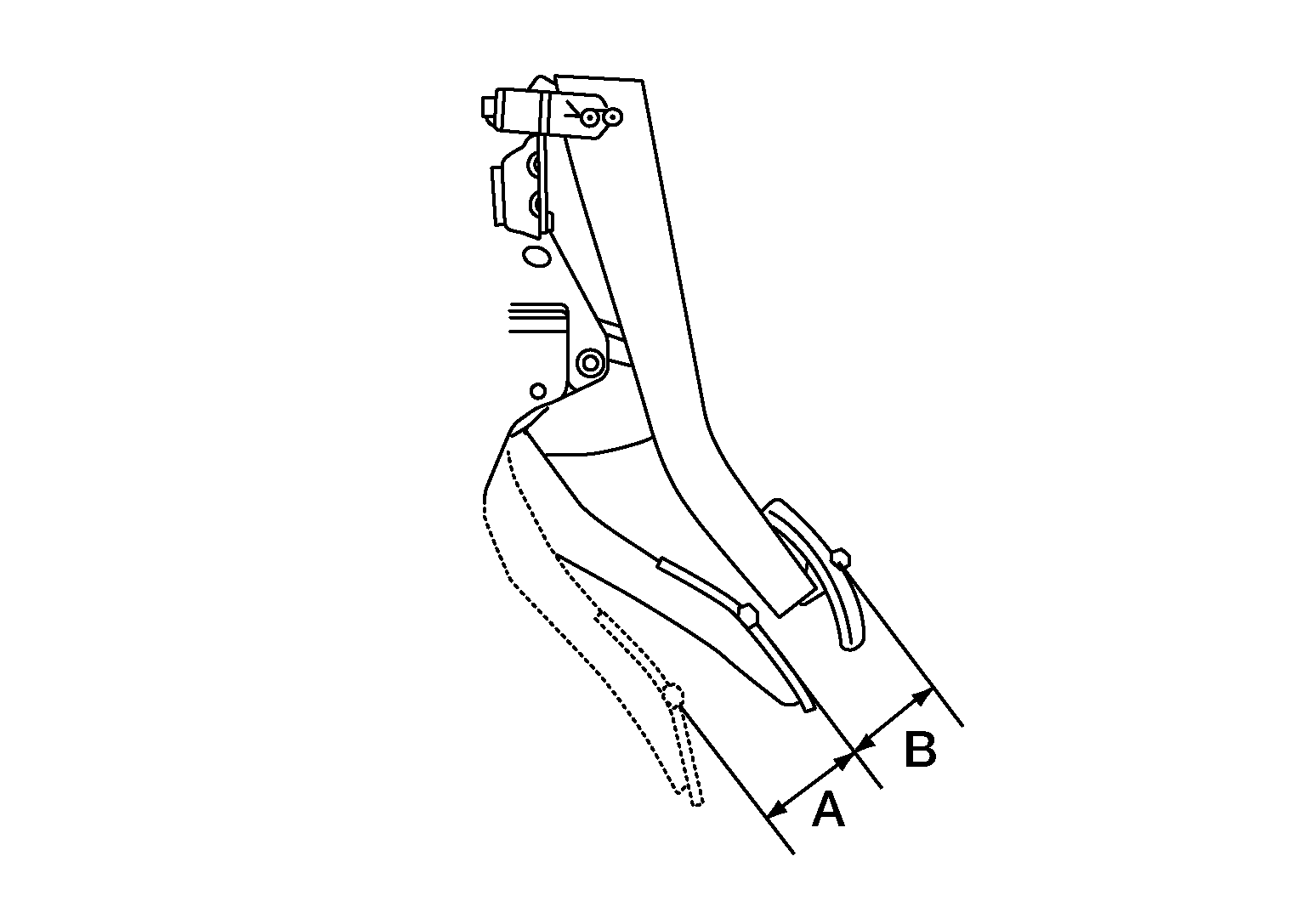

G09155832
Accelerator pedal stroke (A) 49.6 - 52.4 (1.95 - 2.06)
Pedal height difference between accelerator and brake (B) 35 - 45 (1.38 - 1.77)
