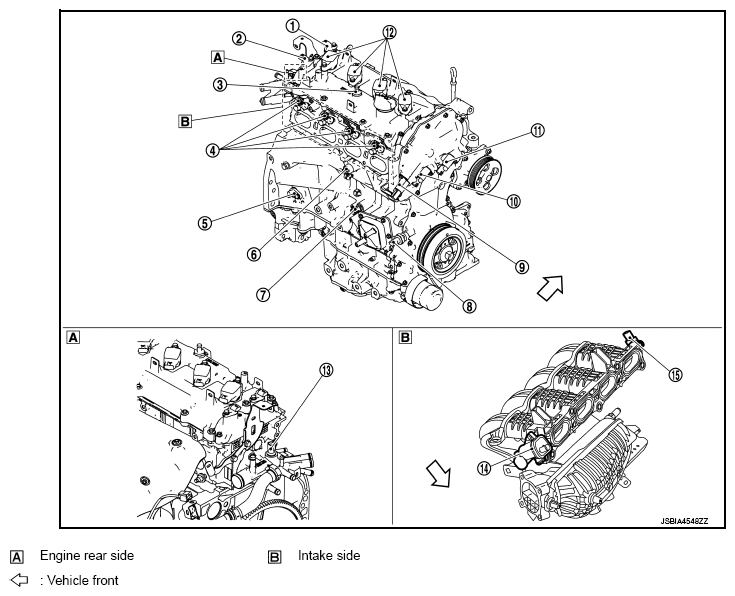

| (1) |
Exhaust valve timing control position sensor |
"EXHAUST VALVE TIMING CONTROL POSITION SENSOR " |
| (2) |
Camshaft position sensor (PHASE) |
"CAMSHAFT POSITION SENSOR (PHASE) " |
| (3) |
PCV valve |
The positive crankcase ventilation (PCV) valve is provided to conduct crankcase blow-by gas to the intake manifold. |
| (4) |
Fuel injector |
"FUEL INJECTOR " |
| (5) |
Crankshaft position sensor (POS) |
"CRANKSHAFT POSITION SENSOR (POS) " |
| (6) |
Knock sensor |
"KNOCK SENSOR " |
| (7) |
Engine oil temperature sensor |
"ENGINE OIL TEMPERATURE SENSOR " |
| (8) |
Engine oil pressure sensor |
"ENGINE OIL PRESSURE SENSOR " |
| (9) |
Intake valve timing intermediate lock control solenoid valve |
"INTAKE VALVE TIMING INTERMEDIATE LOCK CONTROL SOLENOID VALVE " |
| (10) |
Intake valve timing control solenoid valve |
"INTAKE VALVE TIMING CONTROL SOLENOID VALVE " |
| (11) |
Exhaust valve timing control solenoid valve |
"EXHAUST VALVE TIMING CONTROL SOLENOID VALVE " |
| (12) |
Ignition coil (with power transistor) |
"IGNITION COIL WITH POWER TRANSISTOR " |
| (13) |
Engine coolant temperature sensor |
"ENGINE COOLANT TEMPERATURE SENSOR " |
| (14) |
Intake manifold runner control valve position sensor |
"INTAKE MANIFOLD RUNNER CONTROL VALVE " |
| (15) |
Intake manifold runner control valve actuator |
