Intake Valve Timing Intermediate Lock Control Solenoid Valve

Intake valve timing intermediate lock control solenoid valve is activated by ON/OFF signals from the ECM.

The intake valve timing intermediate lock control solenoid valve opens/closes the path of oil pressure acting on the lock key in the camshaft sprocket (INT).

• When the solenoid valve becomes ON, oil pressure to the lock key is trained to perform intermediate lock.
• When the solenoid valve becomes OFF, oil pressure is acted on the lock key to release the intermediate lock.

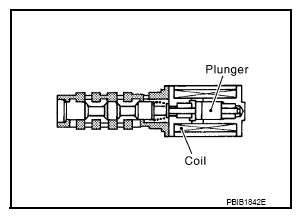

  Fig 1: Identifying Intake Valve Timing Intermediate Lock Control Solenoid Valve Plunger And Coil

  Courtesy of NISSAN NORTH AMERICA, INC.
