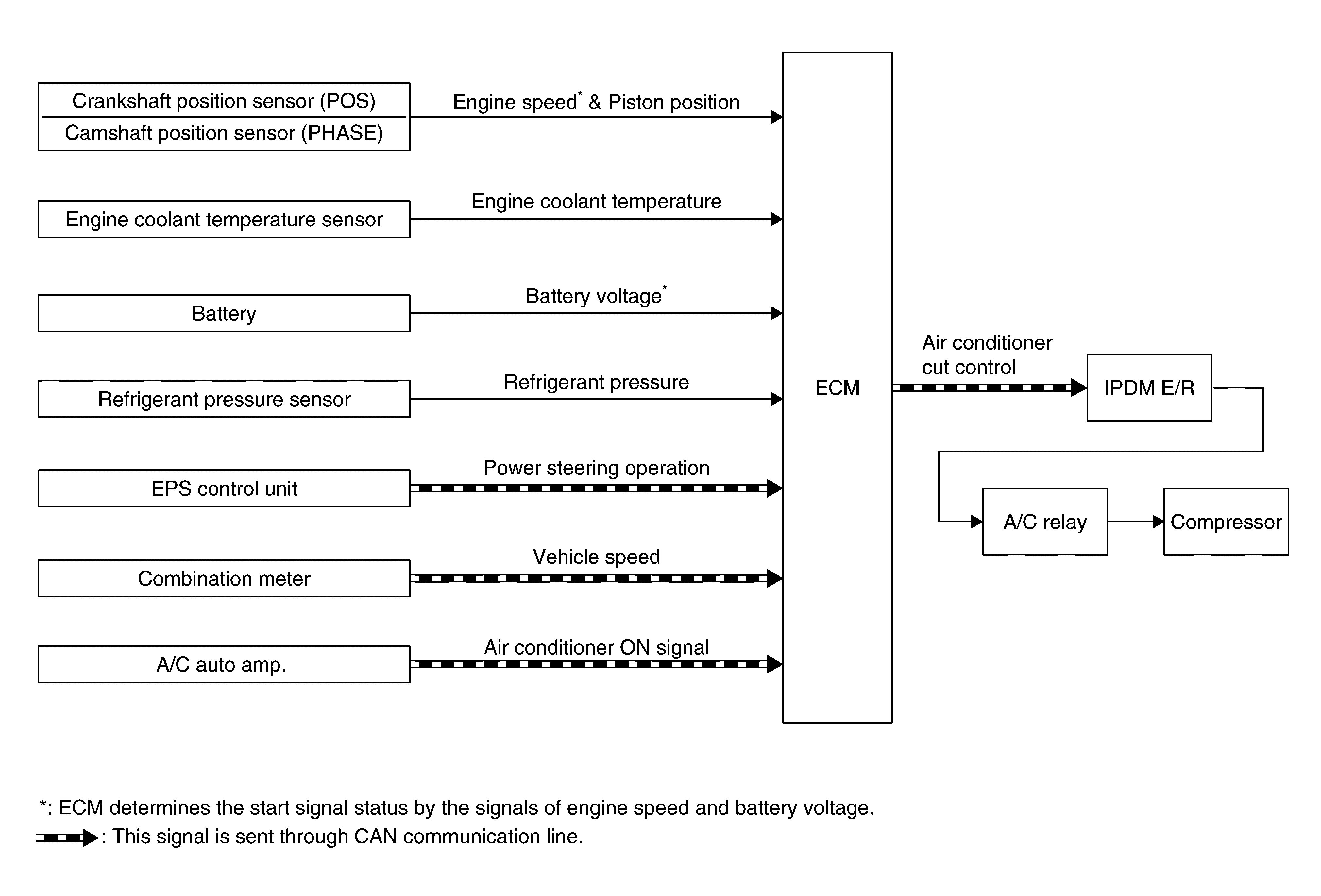

Home >> Nissan-Datsun >> 2014 >> Rogue SL, FWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (Introduction) >> System Description >> System >> Air Conditioning Cut Control >> AIR CONDITIONING CUT CONTROL: System Description >> System Diagram
