Connector End Views

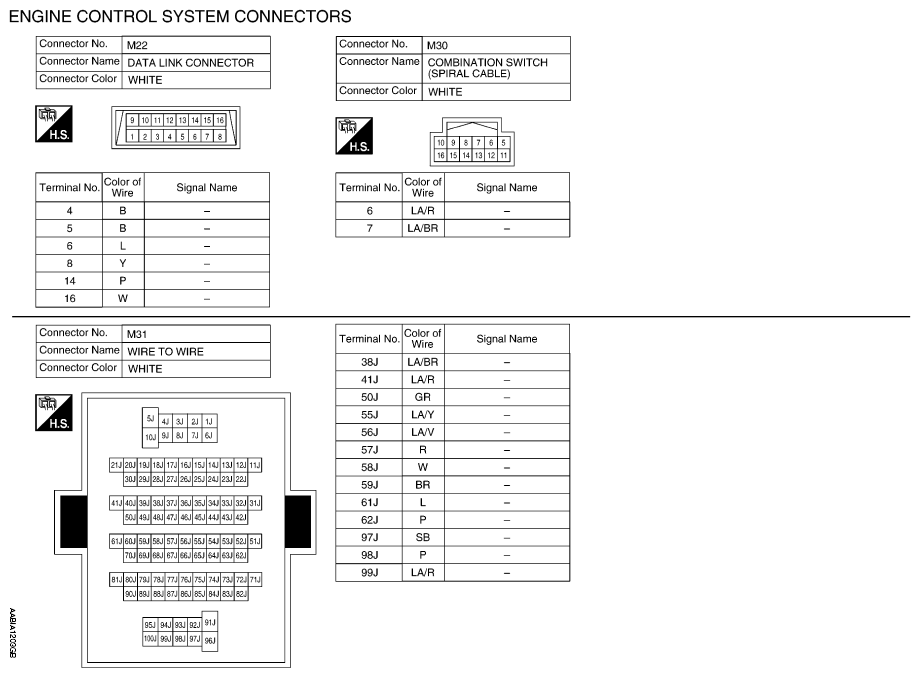

Fig 1: Engine Control System Connector End Views (1 Of 15)
G09155621Courtesy of NISSAN NORTH AMERICA, INC.

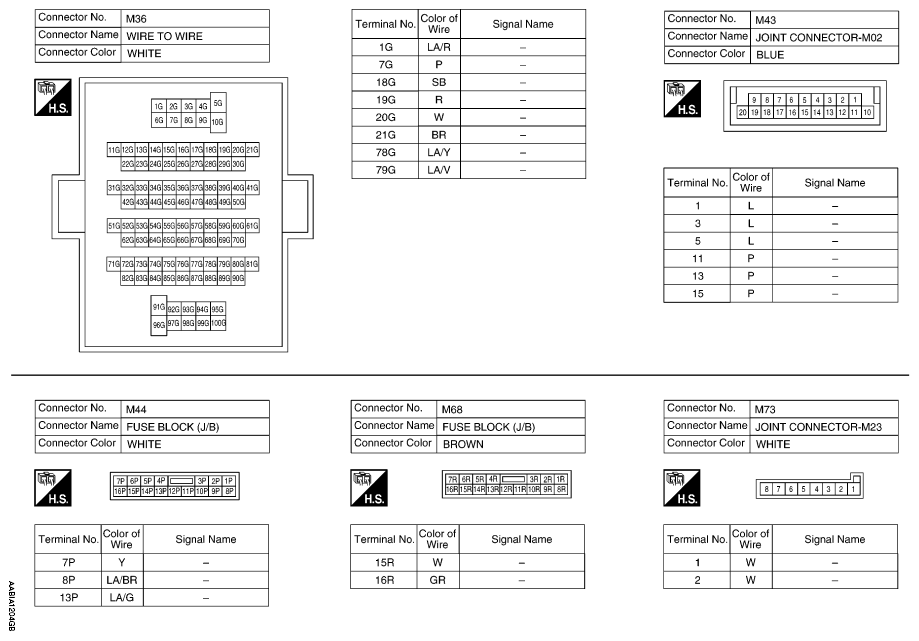

Fig 2: Engine Control System Connector End Views (2 Of 15)
G09155622Courtesy of NISSAN NORTH AMERICA, INC.

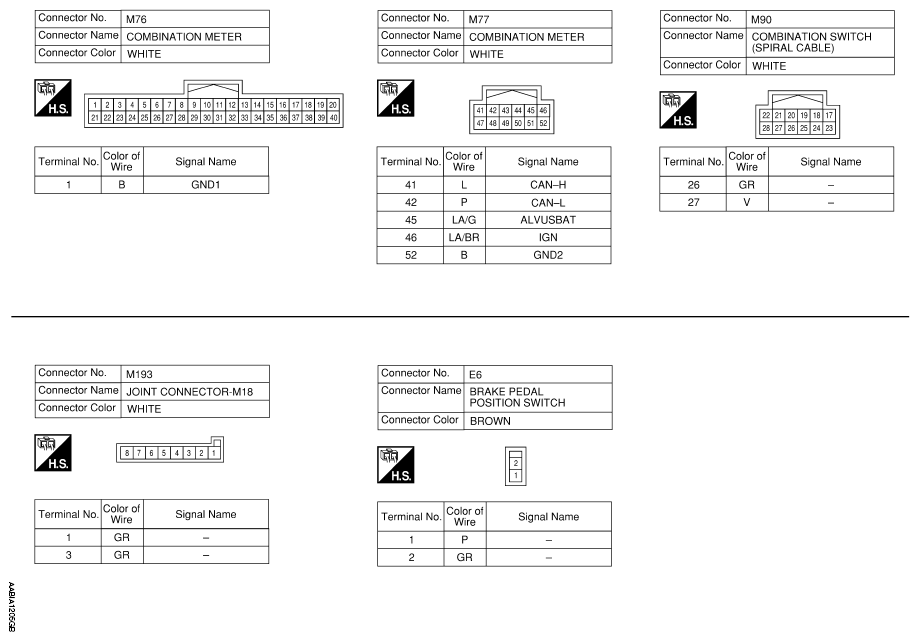

Fig 3: Engine Control System Connector End Views (3 Of 15)
G09155623Courtesy of NISSAN NORTH AMERICA, INC.

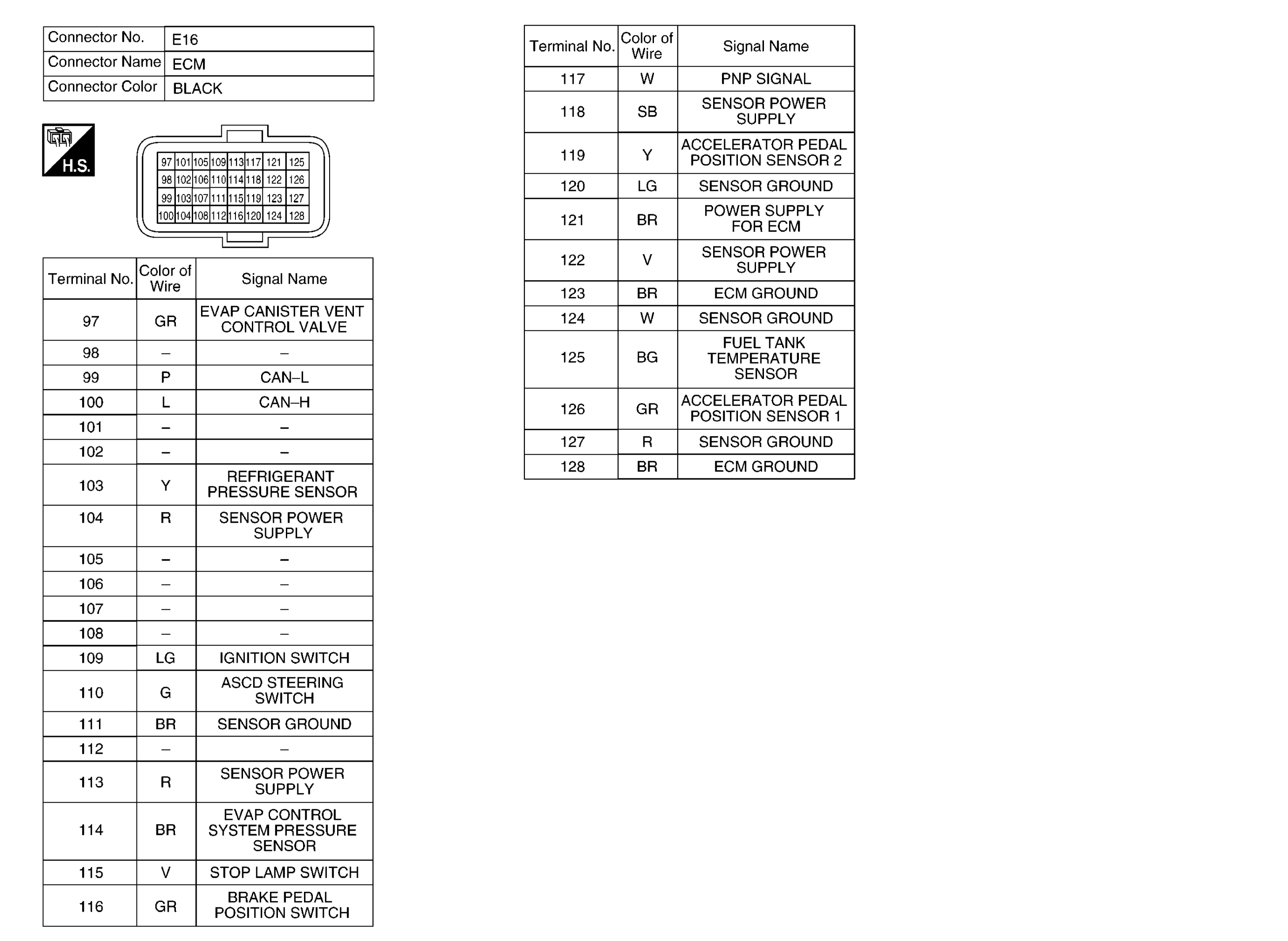

Fig 4: Engine Control System Connector End Views (4 Of 15)
G09155624Courtesy of NISSAN NORTH AMERICA, INC.

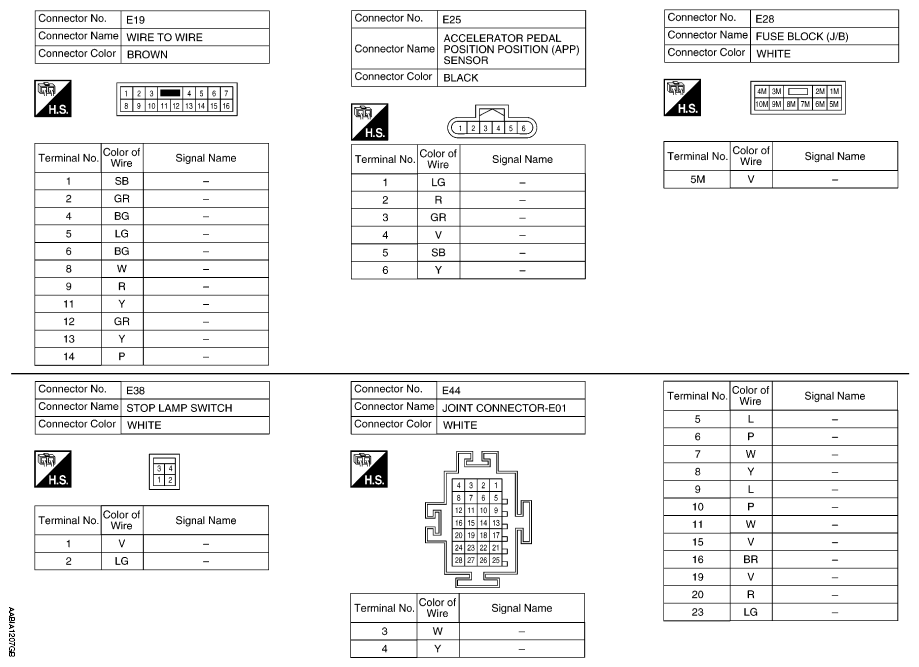

Fig 5: Engine Control System Connector End Views (5 Of 15)
G09155625Courtesy of NISSAN NORTH AMERICA, INC.

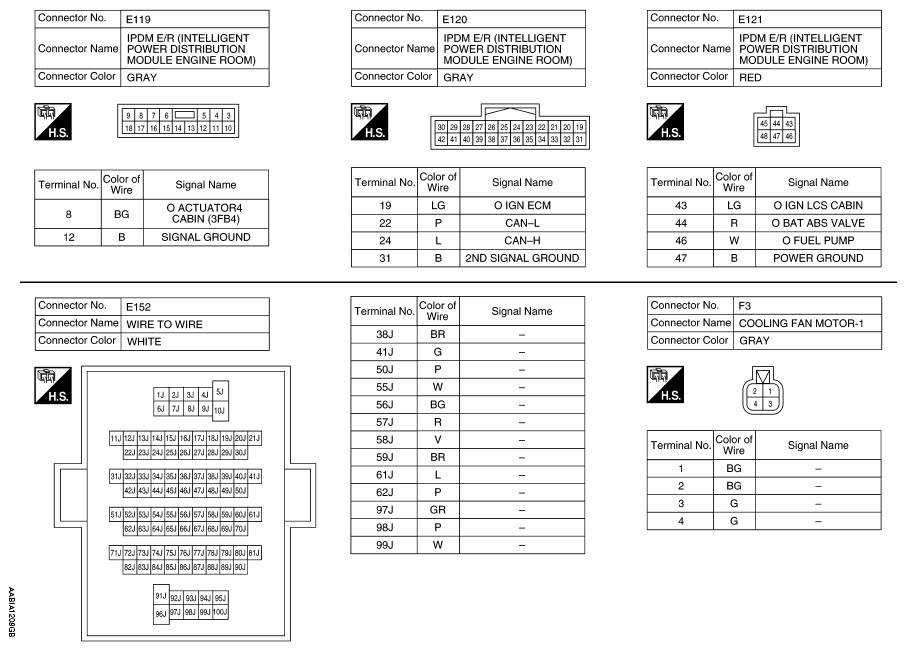

Fig 6: Engine Control System Connector End Views (6 Of 15)
G09155626Courtesy of NISSAN NORTH AMERICA, INC.

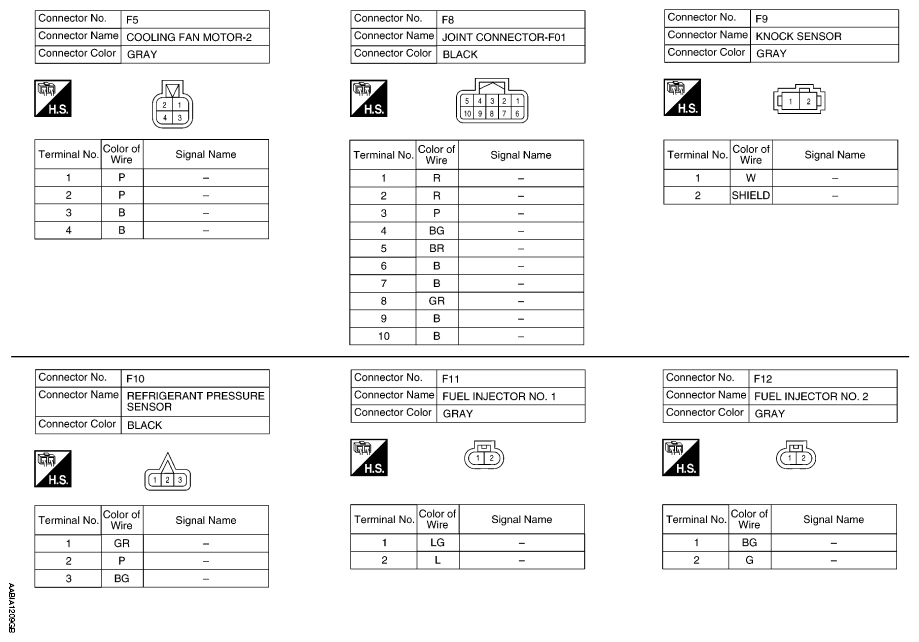

Fig 7: Engine Control System Connector End Views (7 Of 15)
G09155627Courtesy of NISSAN NORTH AMERICA, INC.

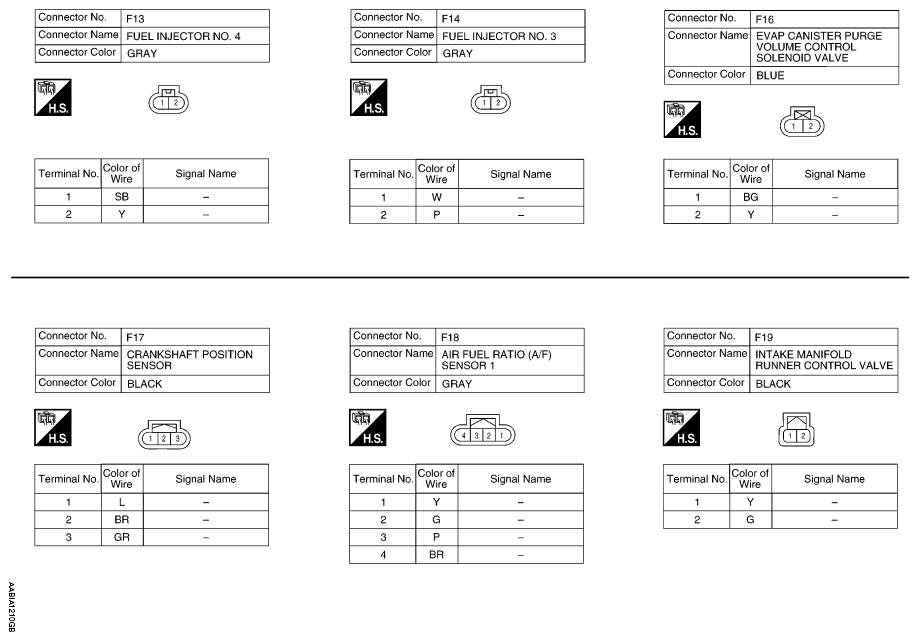

Fig 8: Engine Control System Connector End Views (8 Of 15)
G09155628Courtesy of NISSAN NORTH AMERICA, INC.

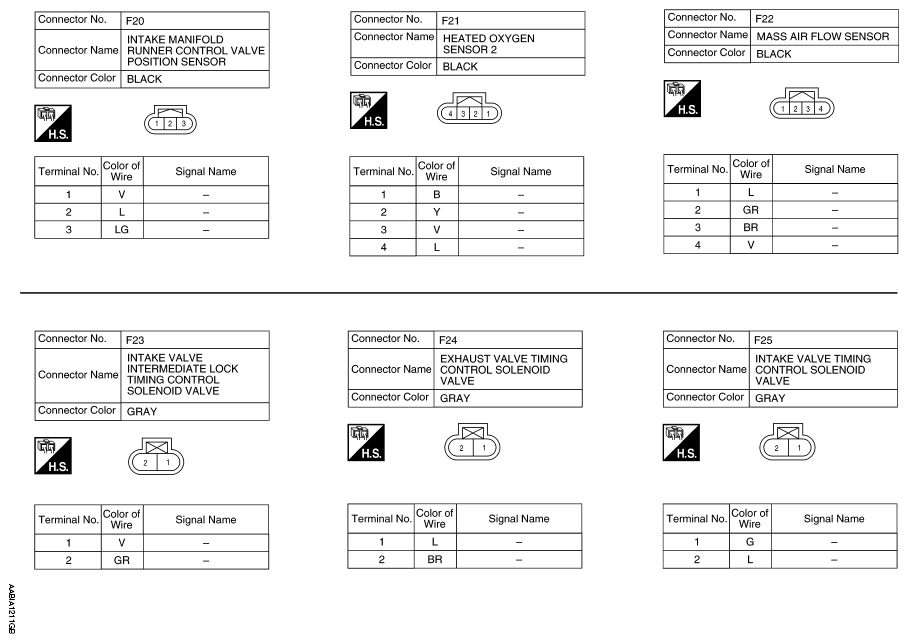

Fig 9: Engine Control System Connector End Views (9 Of 15)
G09155629Courtesy of NISSAN NORTH AMERICA, INC.

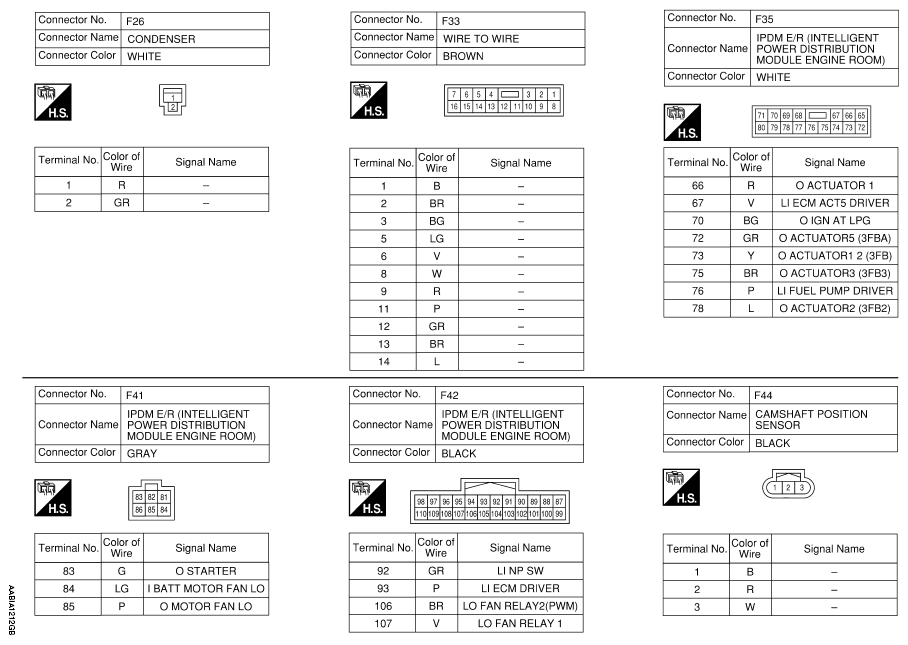

Fig 10: Engine Control System Connector End Views (10 Of 15)
G09155630Courtesy of NISSAN NORTH AMERICA, INC.

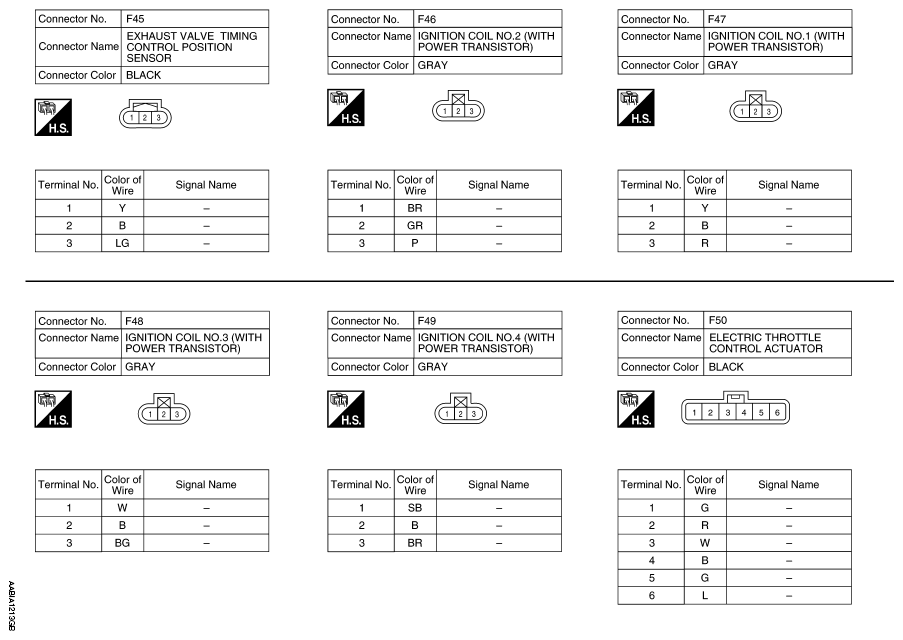

Fig 11: Engine Control System Connector End Views (11 Of 15)
G09155631Courtesy of NISSAN NORTH AMERICA, INC.

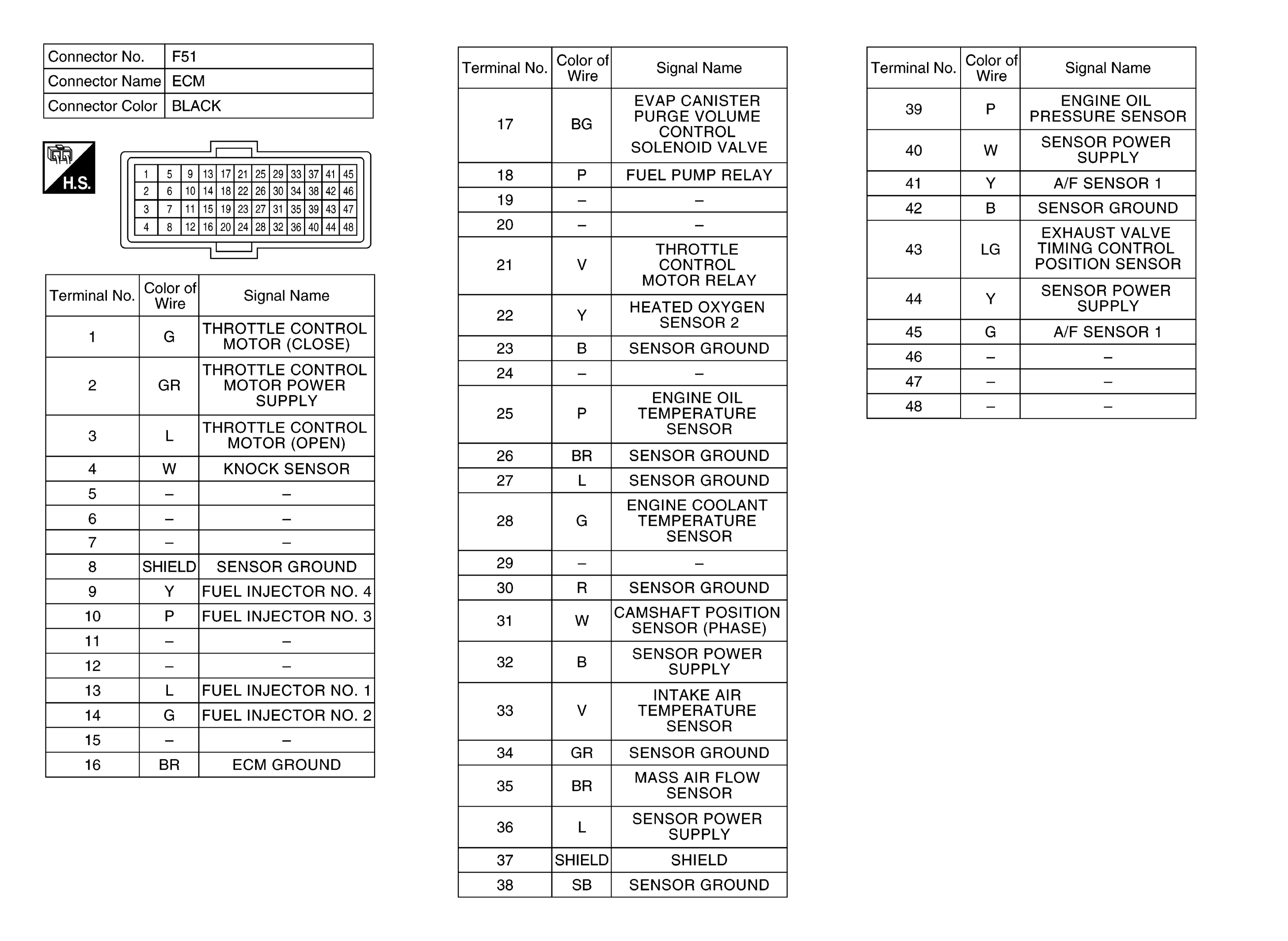

Fig 12: Engine Control System Connector End Views (12 Of 15)
G09155632Courtesy of NISSAN NORTH AMERICA, INC.

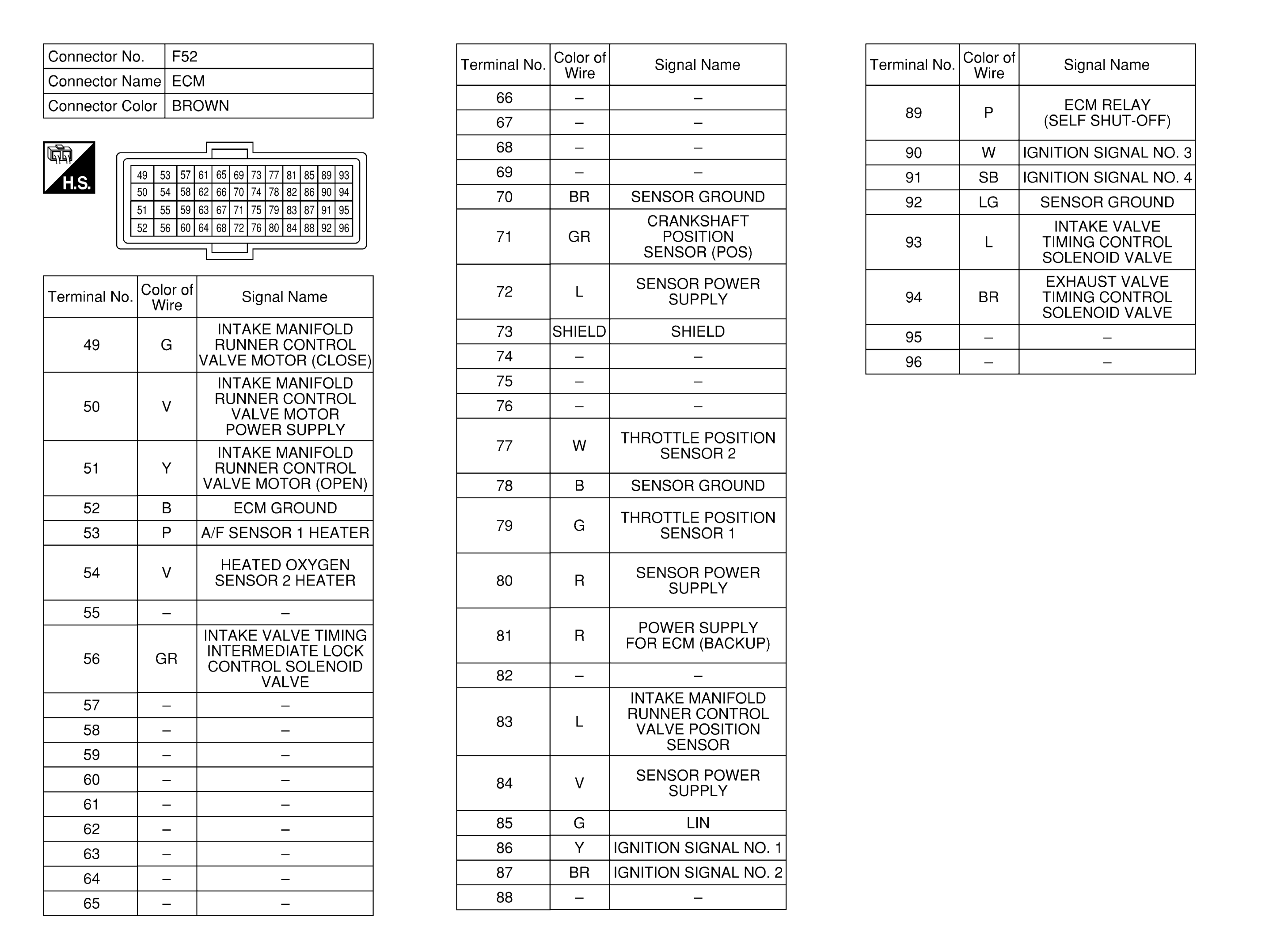

Fig 13: Engine Control System Connector End Views (13 Of 15)
G09155633Courtesy of NISSAN NORTH AMERICA, INC.

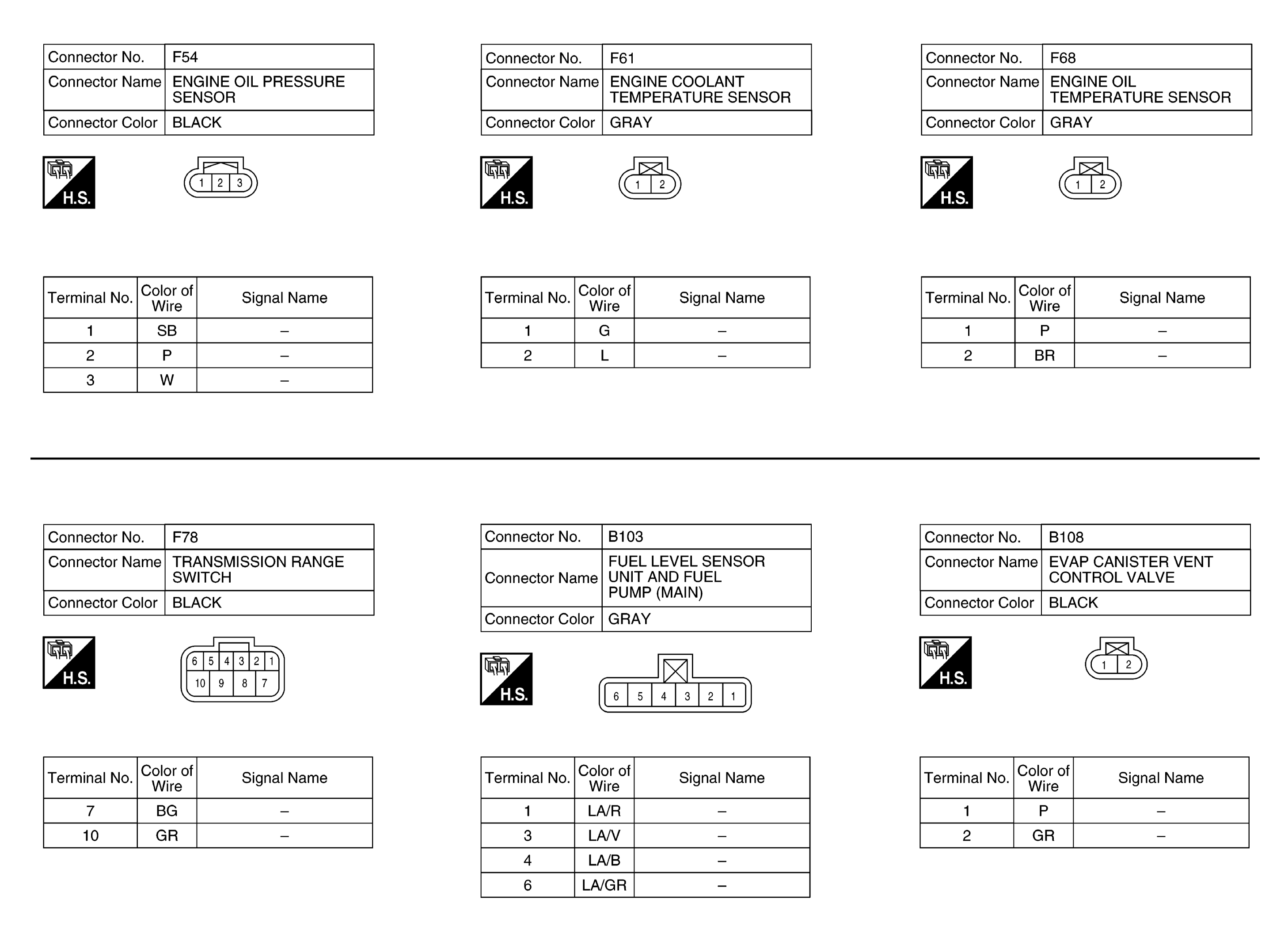

Fig 14: Engine Control System Connector End Views (14 Of 15)
G09155634Courtesy of NISSAN NORTH AMERICA, INC.

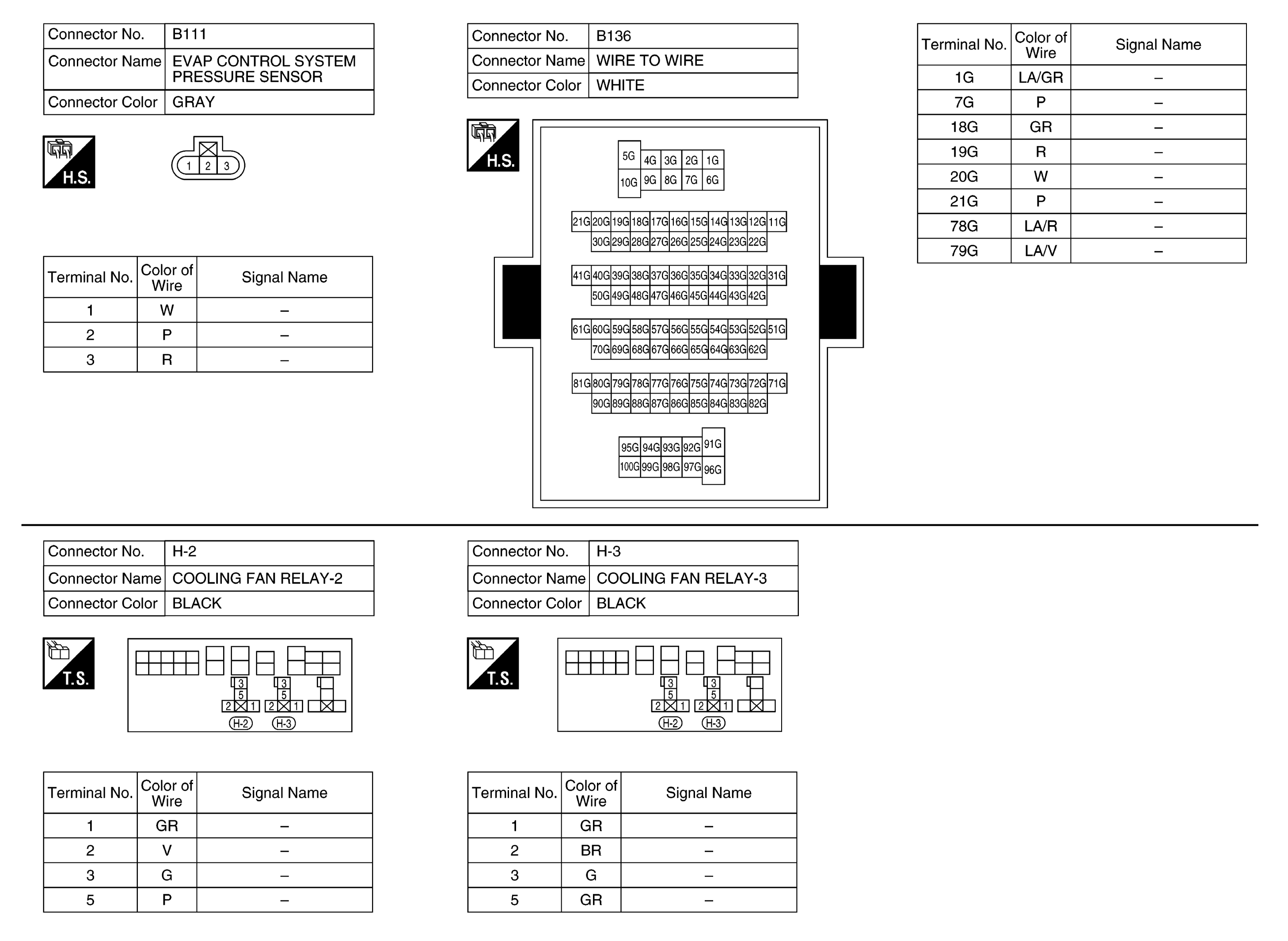

Fig 15: Engine Control System Connector End Views (15 Of 15)
G09155635Courtesy of NISSAN NORTH AMERICA, INC.
