IGNITION TIMING: Special Repair Requirement

CHECK IGNITION TIMING

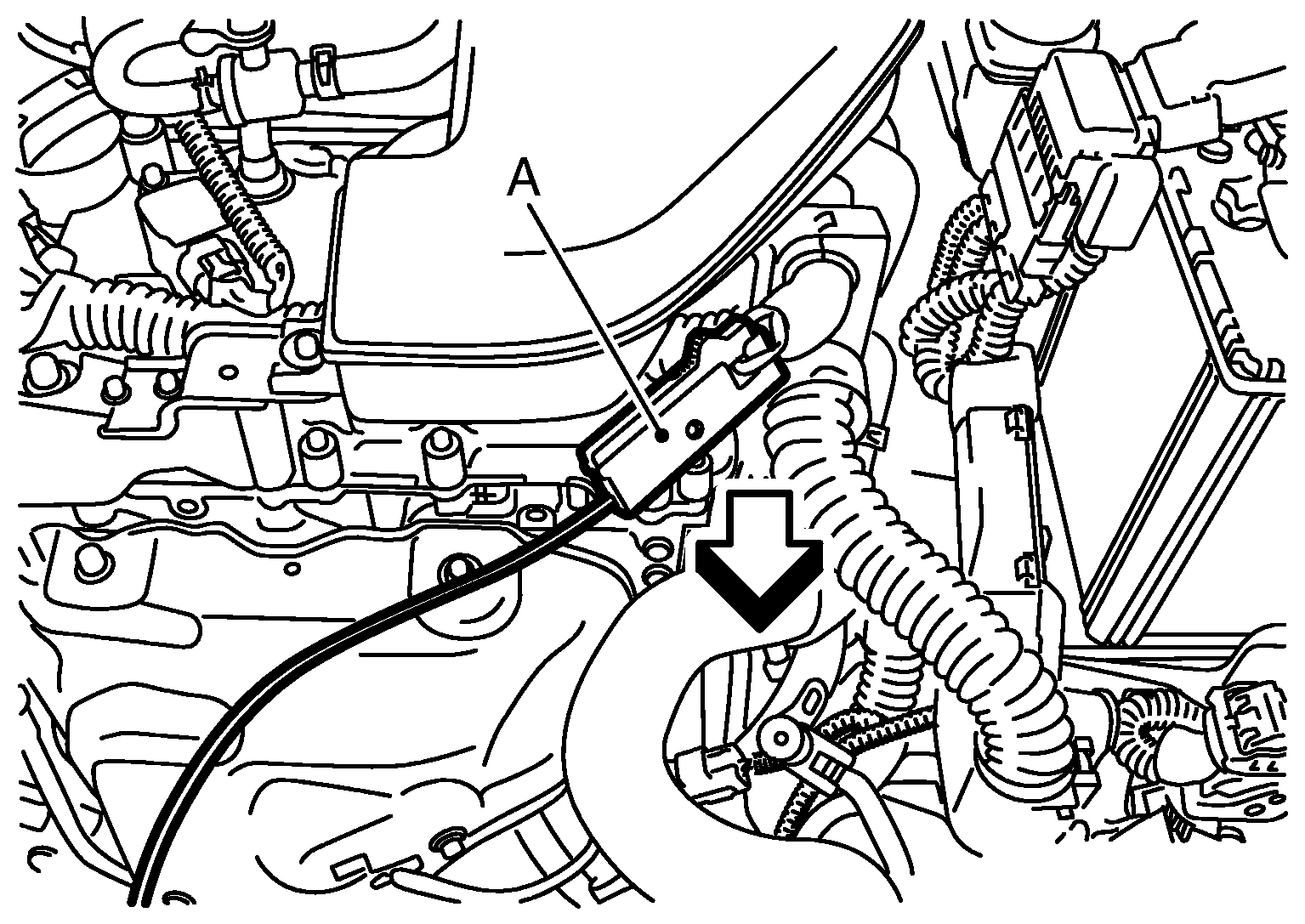

1. Attach timing light (A) to No. 1 ignition coil wire as shown below.
  - <==: Vehicle front

    Fig 1: Identifying Timing Light
    Courtesy of NISSAN NORTH AMERICA, INC.
2. Check ignition timing.
  - Timing indicator (1)
    : INSPECTION END

    Fig 2: Checking Ignition Timing With Timing Light
    Courtesy of NISSAN NORTH AMERICA, INC.
