System Diagram: Notes

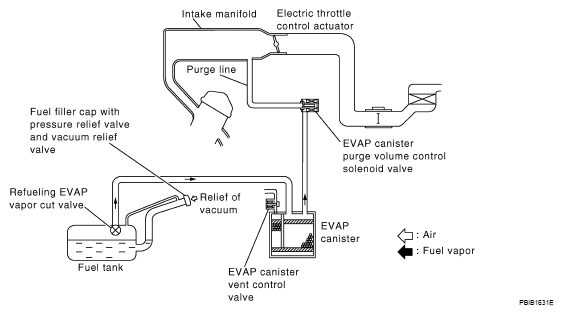

Fig 1: Evaporative Emission System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
