Component Parts Location

Fig 1: Intake Valve Timing Control Components Location (1 Of 12)
G09610999Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Intake Valve Timing Control Components Location (2 Of 12)
G09611000Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Intake Valve Timing Control Components Location (3 Of 12)
G09611001Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: Intake Valve Timing Control Components Location (4 Of 12)
G09611002Courtesy of NISSAN NORTH AMERICA, INC.

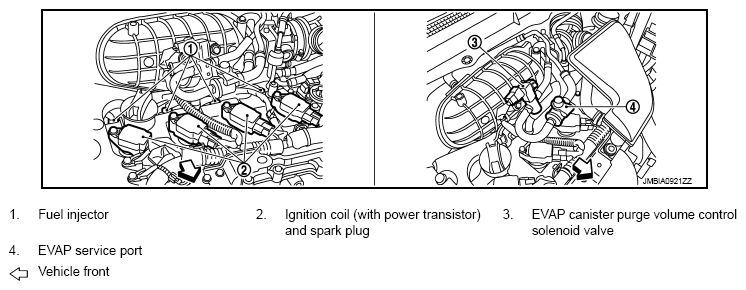

Fig 5: Intake Valve Timing Control Components Location (5 Of 12)
G09611003Courtesy of NISSAN NORTH AMERICA, INC.

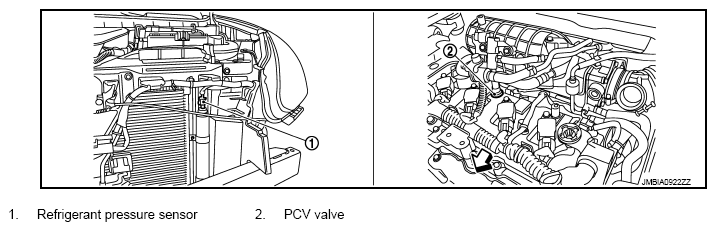

Fig 6: Intake Valve Timing Control Components Location (6 Of 12)
G09611004Courtesy of NISSAN NORTH AMERICA, INC.

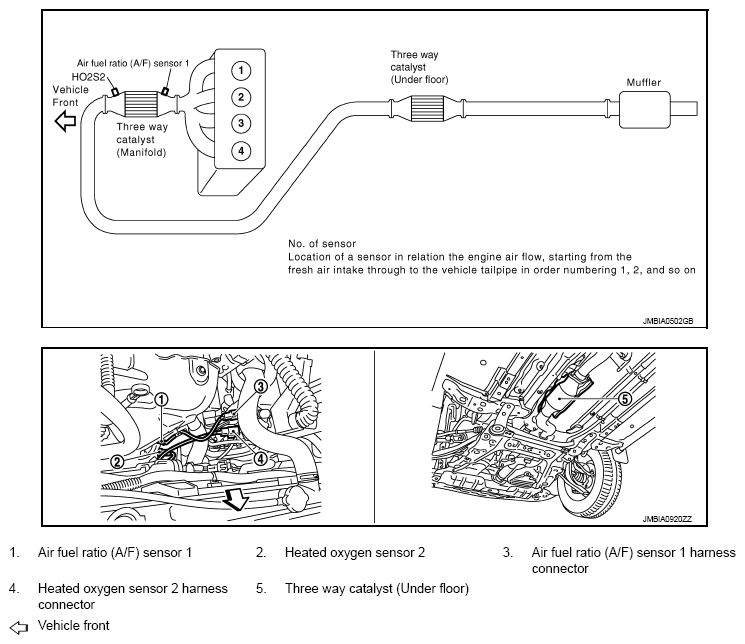

Fig 7: Intake Valve Timing Control Components Location (7 Of 12)
G09611005Courtesy of NISSAN NORTH AMERICA, INC.
Fig 8: Intake Valve Timing Control Components Location (8 Of 12)
G09611006Courtesy of NISSAN NORTH AMERICA, INC.
Fig 9: Intake Valve Timing Control Components Location (9 Of 12)
G09611007Courtesy of NISSAN NORTH AMERICA, INC.
Fig 10: Intake Valve Timing Control Components Location (10 Of 12)
G09611008Courtesy of NISSAN NORTH AMERICA, INC.
Fig 11: Intake Valve Timing Control Components Location (11 Of 12)
G09611009Courtesy of NISSAN NORTH AMERICA, INC.
Fig 12: Intake Valve Timing Control Components Location (12 Of 12)
G09611010Courtesy of NISSAN NORTH AMERICA, INC.
