Component Description
- Air bag sensor are prepared for operation while the ignition switch is in the ON or START position.
- The operation of supplemental restraint system is different from collision modes applicaitions. For example, the driver air bag module and front passenger air bag module are activated in a frontal collision but not in a side collision.

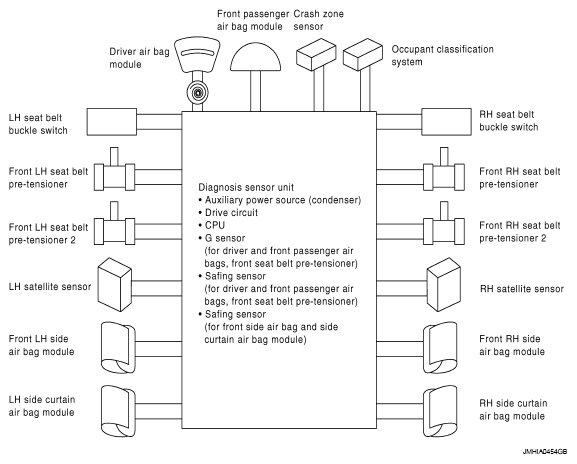

- SRS configurations which are activated for some collision modes are as follows.
SRS configuration Frontal collision Left side collision Right side collision Driver air bag module. x - - Front passenger air bag module. x - - Front LH seat belt pre-tensioner. x - - Front RH seat belt pre-tensioner. x - - Front LH seat belt pre-tensioner 2. x - - Front RH seat belt pre-tensioner 2. x - - Front LH side air bag module. - x - Front RH side air bag module. - - x LH side curtain air bag module. - x - RH side curtain air bag module. - - x x: Application, -: Not application
