Removal and Installation: Removal

  1. Release the pawls using a suitable tool and lift the main power window and door lock/unlock switch and finisher as an assembly and remove.
  2. Disconnect the harness connector from the main power window and door lock/unlock switch.
  3. Release the four pawls (two on each side) using a suitable tool, then separate the main power window and door lock/unlock switch (1) from the main power window and door lock switch finisher (2).

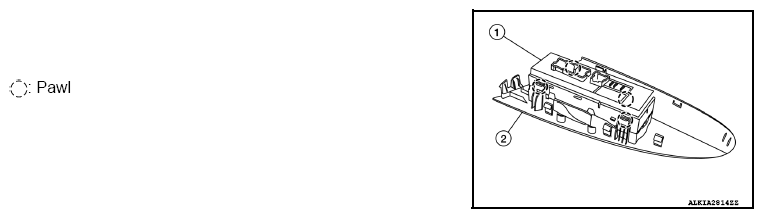

    Fig 1: Identifying Door Lock Switch And Finisher
    G09460275Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not bend back the pawls on the switch finisher too far or breakage may occur.
