Removal and Installation: Removal

  1. Release the pawls using a suitable tool and lift the rear power window switch and finisher as an assembly and remove
  2. Disconnect the harness connector from the rear power window switch.
  3. Release the pawl (one on each side) using a suitable tool, then separate the rear power window switch (1) from the rear power switch finisher (2).

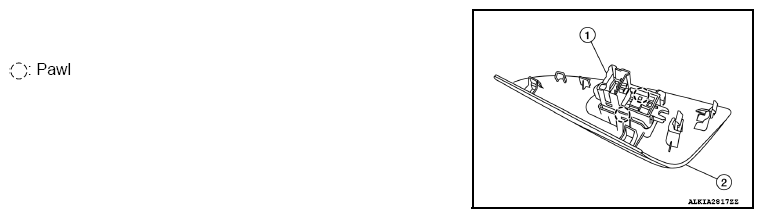

    Fig 1: Identifying Rear Power Switch And Finisher
    G09460277Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not bend back the pawls on the switch finisher too far or breakage may occur.
