Exploded View

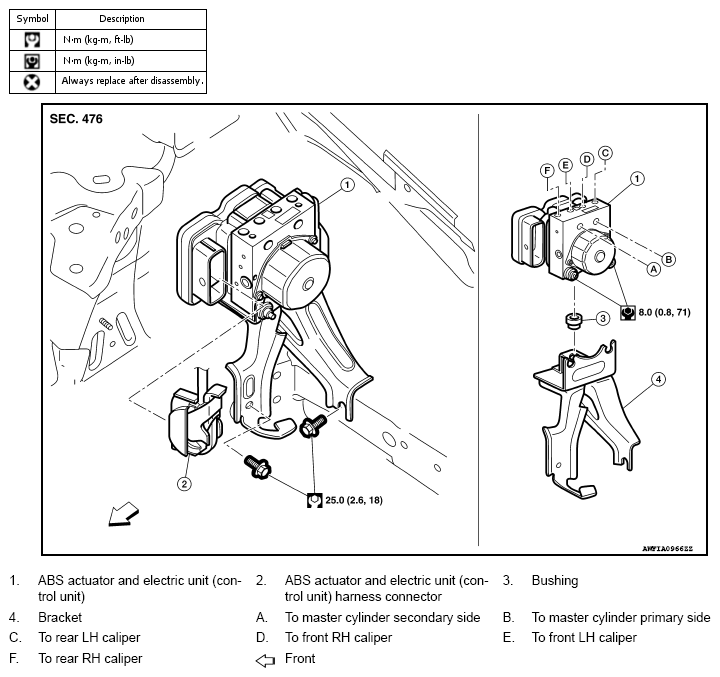

Fig 1: Exploded View Of ABS Actuator And Electric Unit (Control Unit) With Torque Specifications
G09459312Courtesy of NISSAN NORTH AMERICA, INC.
