Connector End Views

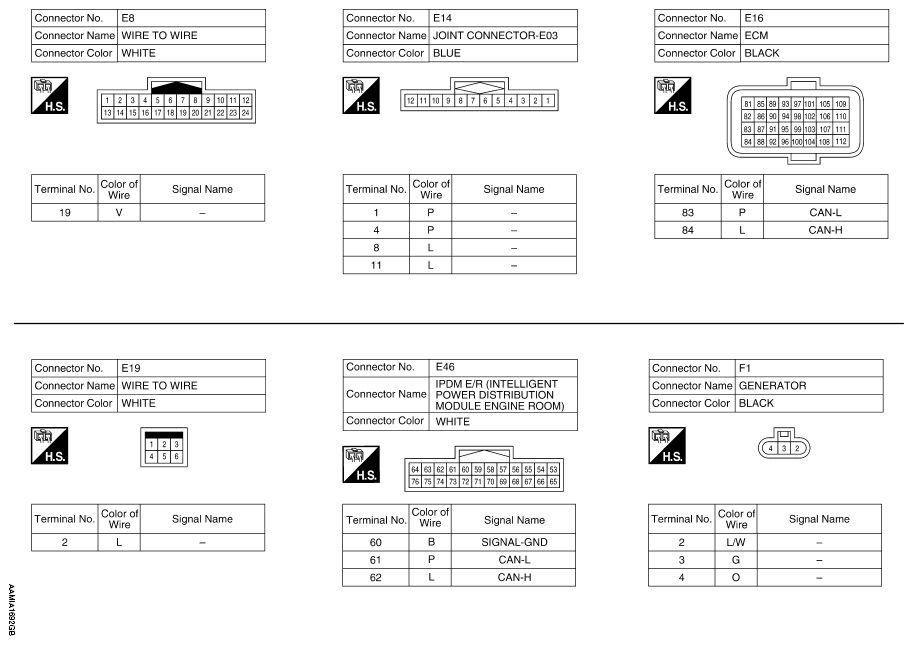

Fig 1: Charging System Connector End View (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

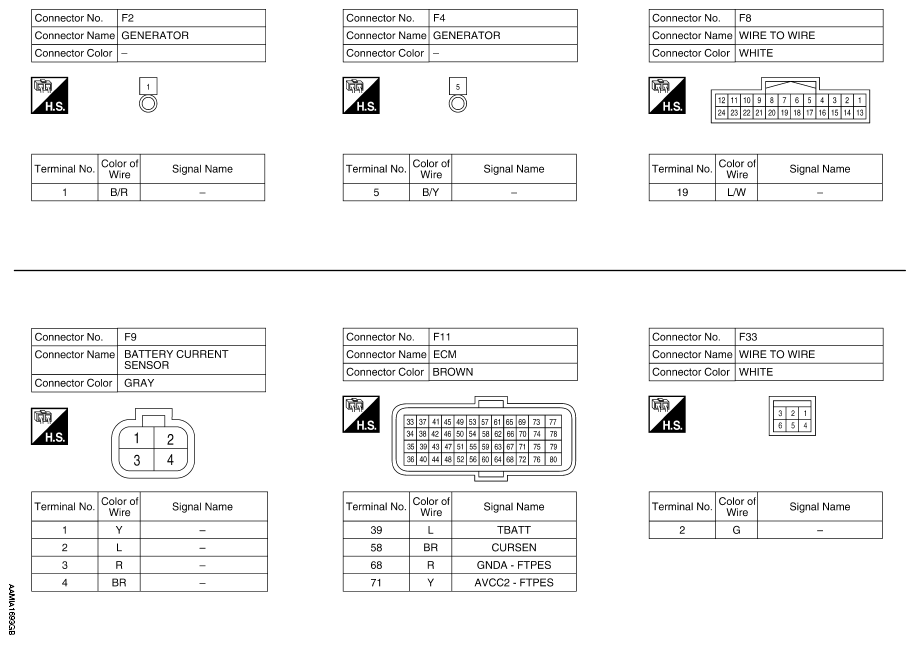

Fig 2: Charging System Connector End View (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

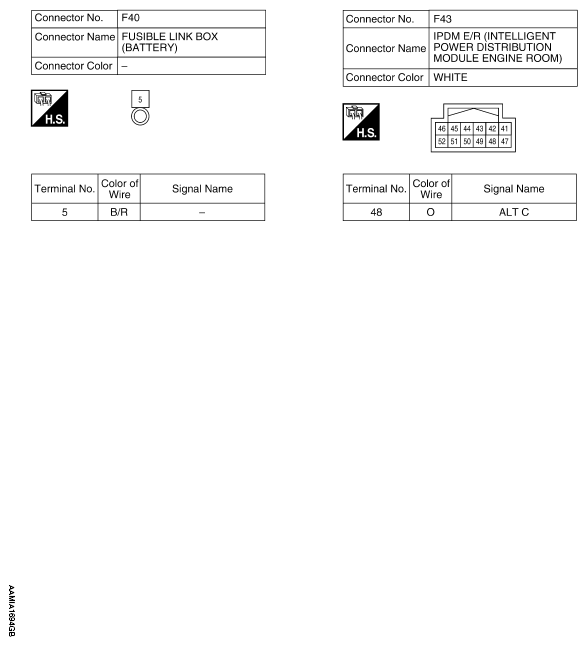

Fig 3: Charging System Connector End View (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

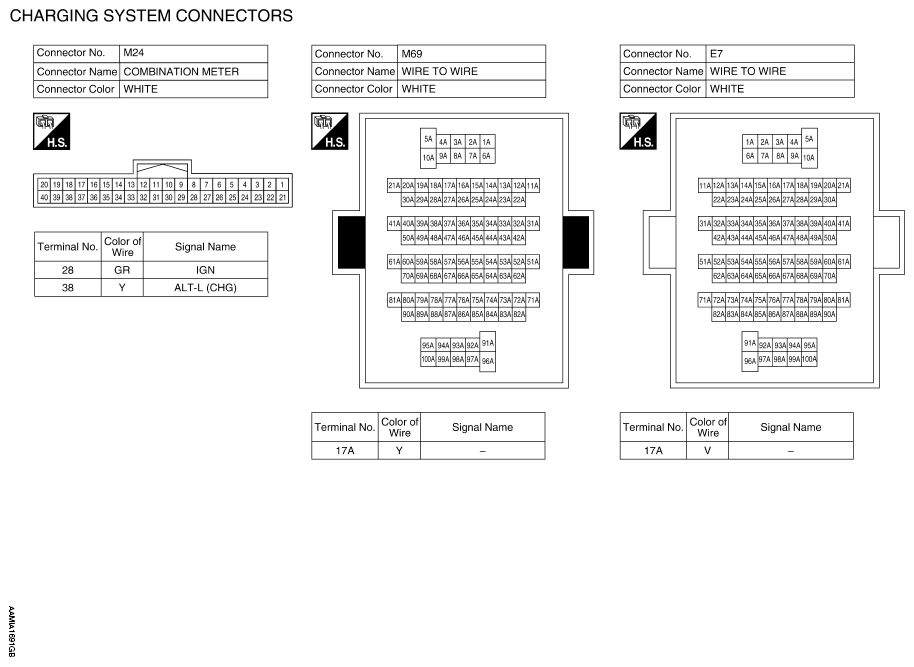

Fig 4: Charging System Connector End View (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
