Disassembly and Assembly: Disassembly

Disconnect fuel level sensor unit/fuel tank temperature sensor harness connectors (1).
NOTE: Hold connector with your fingers, because there is no tab for releasing stopper. Pull it out straight downward.

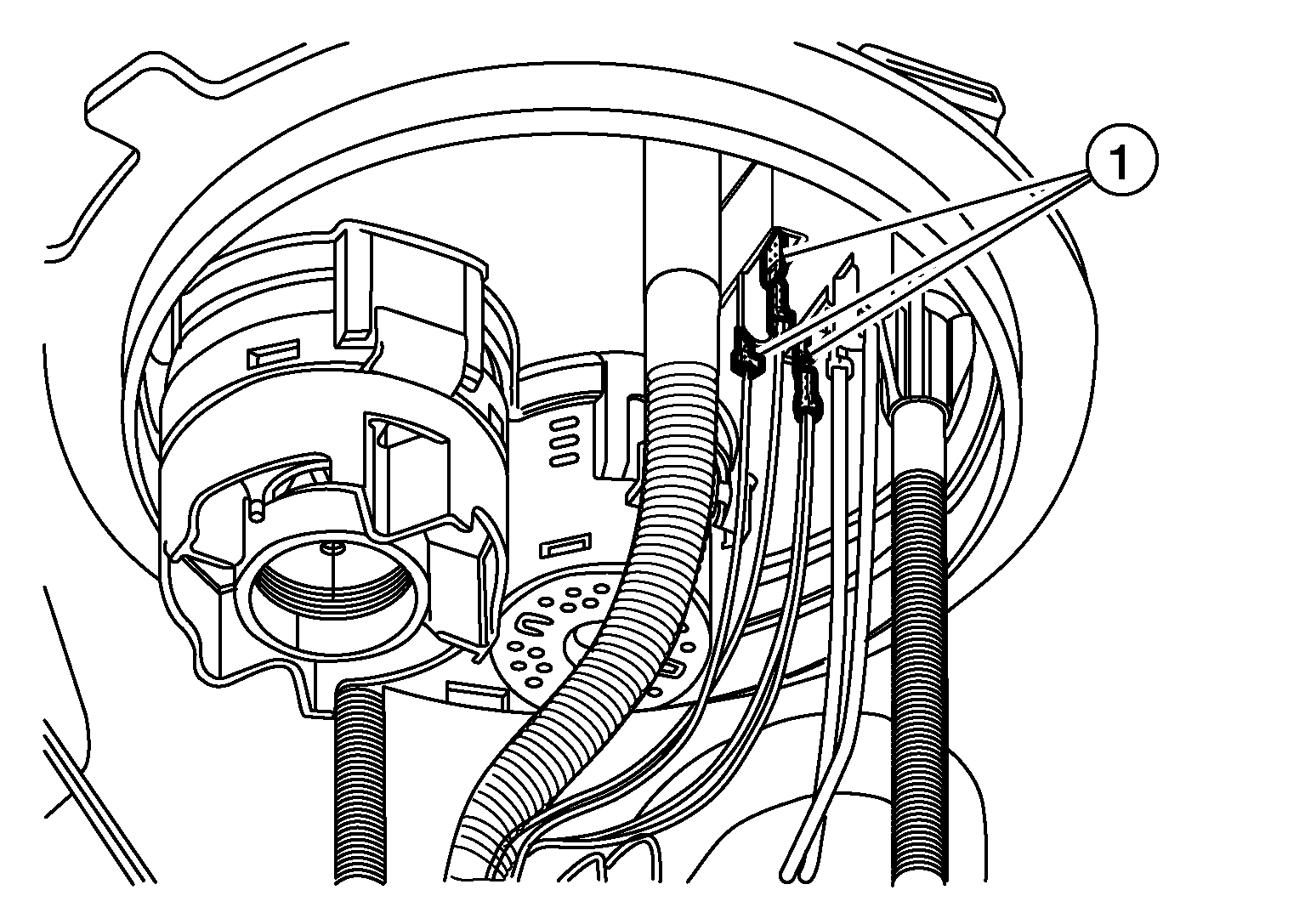

Fig 1: Fuel Level Sensor Unit/Fuel Tank Temperature Sensor Harness Connector End View
Courtesy of NISSAN NORTH AMERICA, INC.
Remove fuel tank temperature sensor (2) from fuel filter and fuel pump assembly (1).

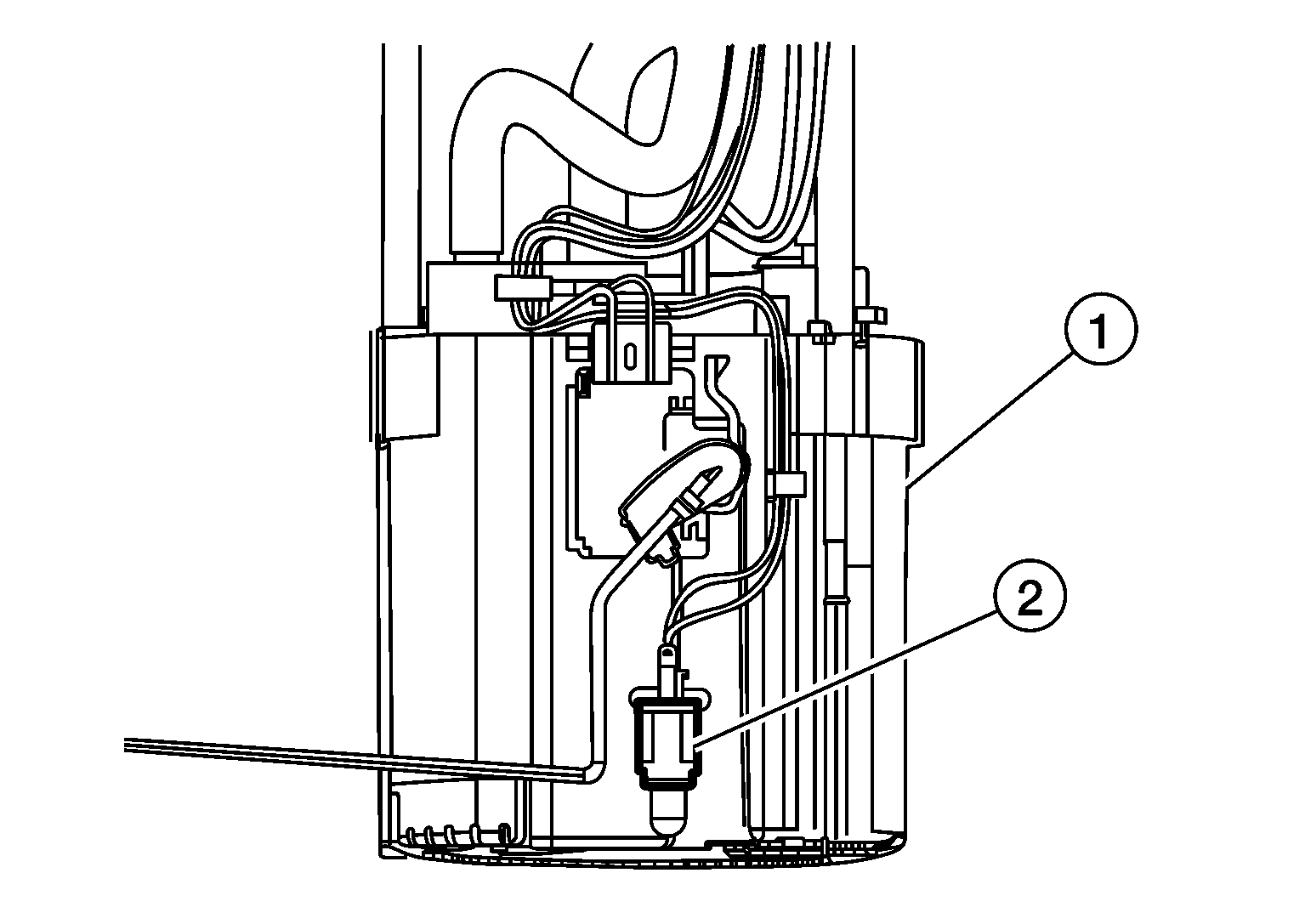

Fig 2: Identifying Fuel Tank Temperature Sensor From Fuel Filter And Fuel Pump Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Using a suitable tool push tab (A) in the direction (<==) shown below and remove fuel level sensor unit (2) from fuel filter and fuel pump assembly (1).
CAUTION:
- Be careful not to damage the fuel level sensor unit.
- Do not disassemble fuel filter and fuel pump assembly.

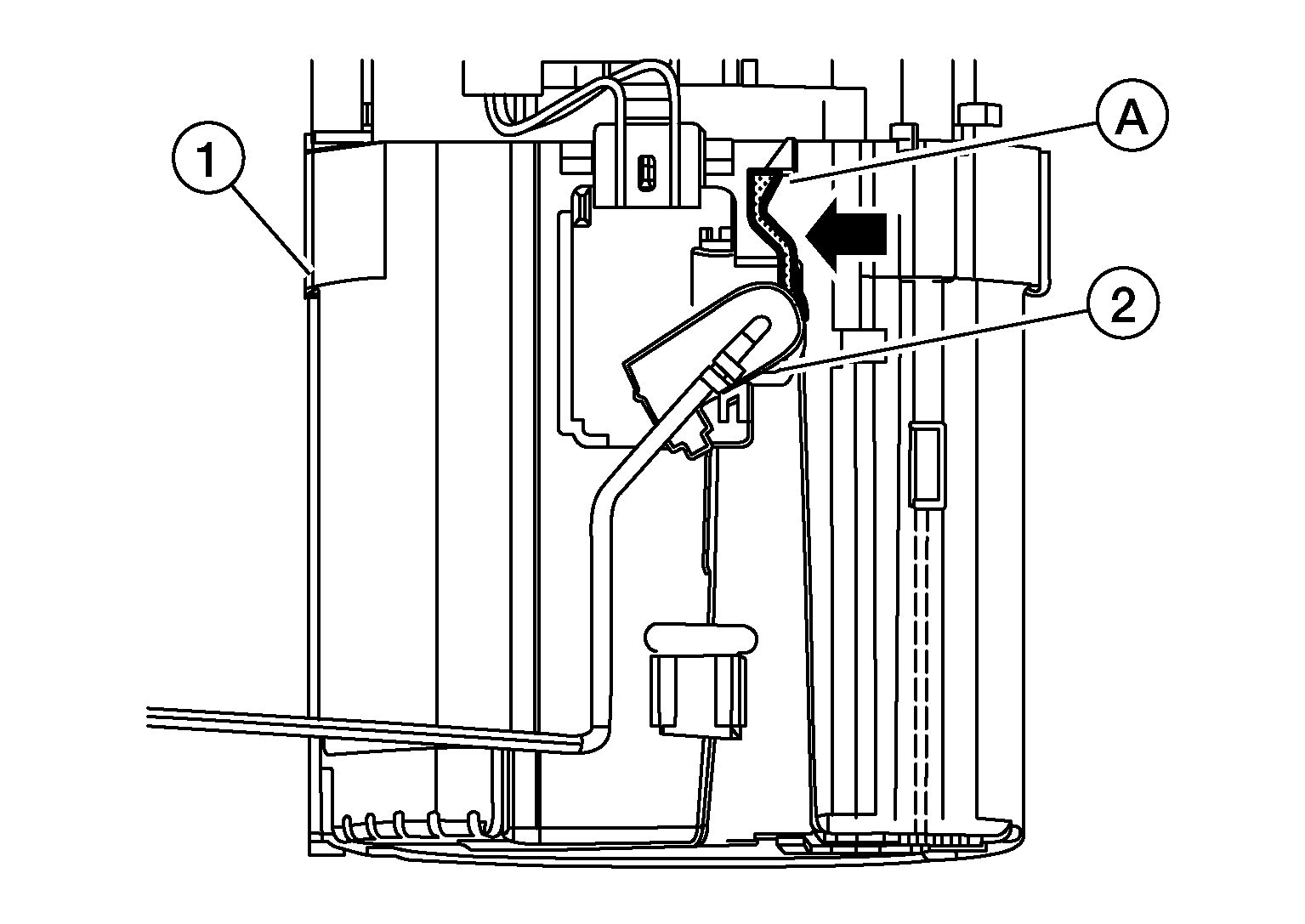

Fig 3: Removing Fuel Level Sensor Unit From Fuel Filter And Fuel Pump Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
