AUTOMATIC SPEED CONTROL DEVICE (ASCD): System Diagram

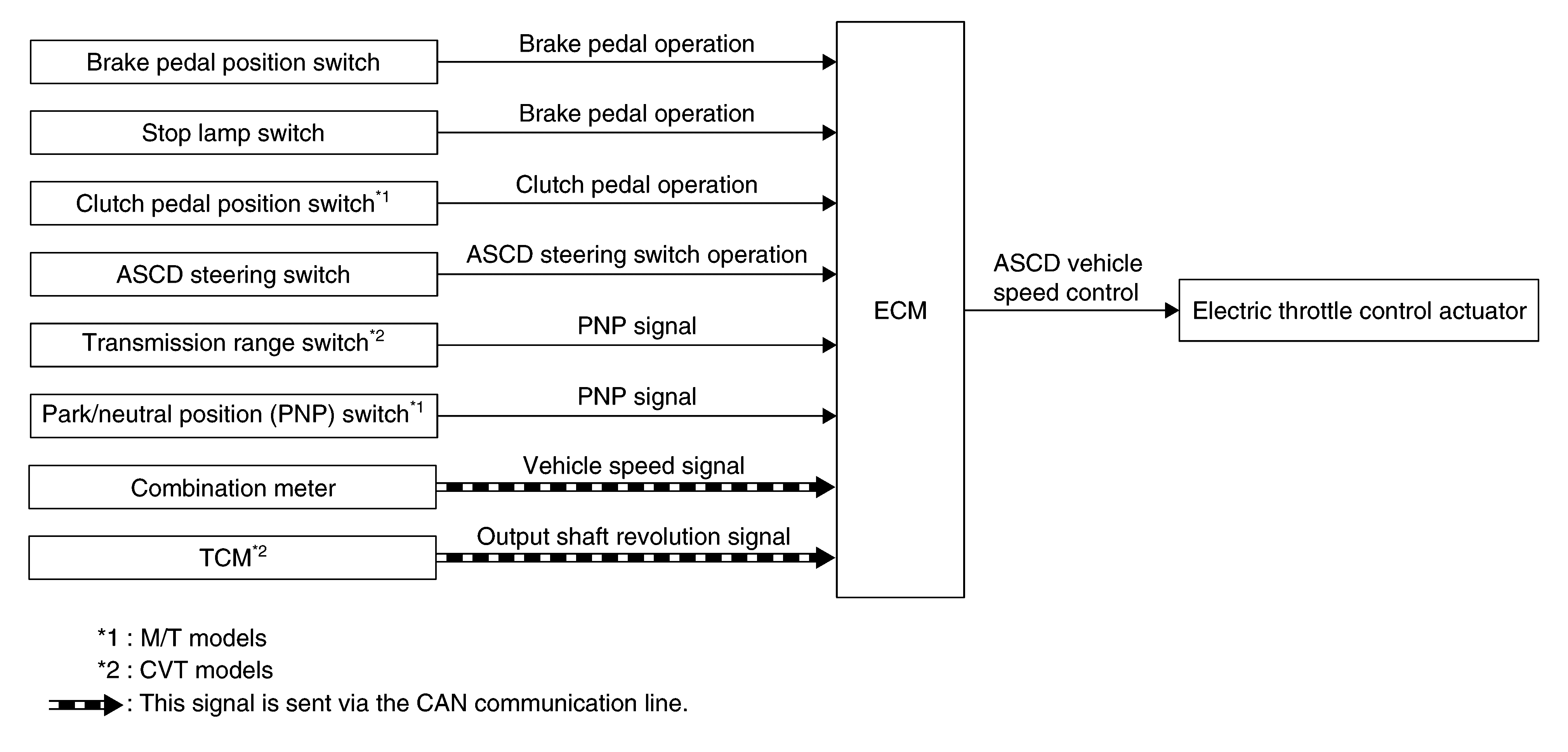

Fig 1: Automatic Speed Control Device (ASCD) System Diagram
G09617607Courtesy of NISSAN NORTH AMERICA, INC.
