Component Parts Location

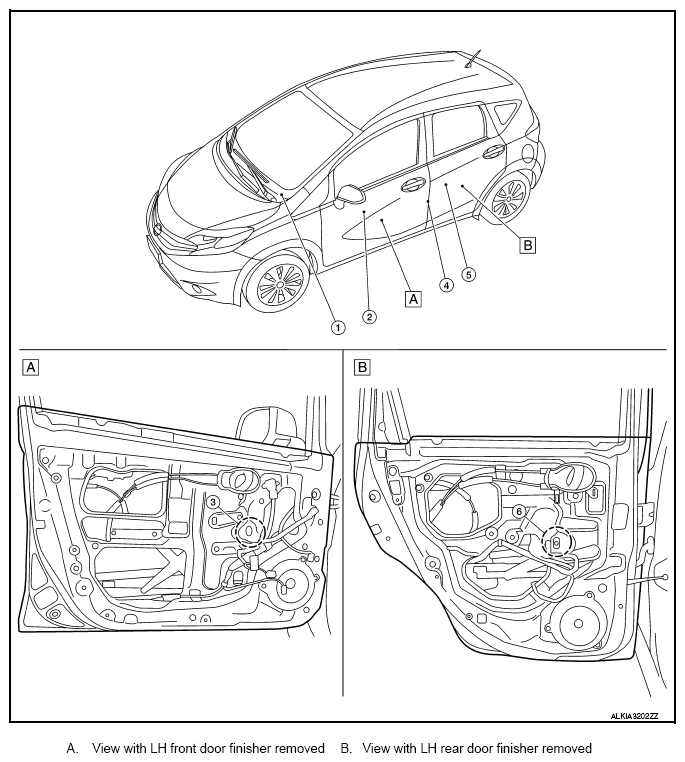

Fig 1: Power Window Control System Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component parts	Function
1.	BCM	Supplies power supply to power window switch. Controls retained power. Refer to "BODY CONTROL SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location.
2.	Power window main switch	Refer to "POWER WINDOW MAIN SWITCH ".
3.	Front power window motor (driver side)	Refer to "POWER WINDOW MOTOR ".
4.	Front door switch (driver side)	Inputs door open/close condition to BCM. Refer to "INTELLIGENT KEY SYSTEM: DOOR SWITCH " for detailed installation location.
5.	Rear power window switch LH	Refer to "POWER WINDOW SWITCH ".
6.	Rear power window motor LH	Refer to "POWER WINDOW MOTOR ".
