Warning Lamp Flash Code Chart

NOTE: Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is eliminated using air bag warning lamp each time repair is finished. If malfunction is still observed, proceed to the next step. When malfunction is eliminated, further repair work is not required.

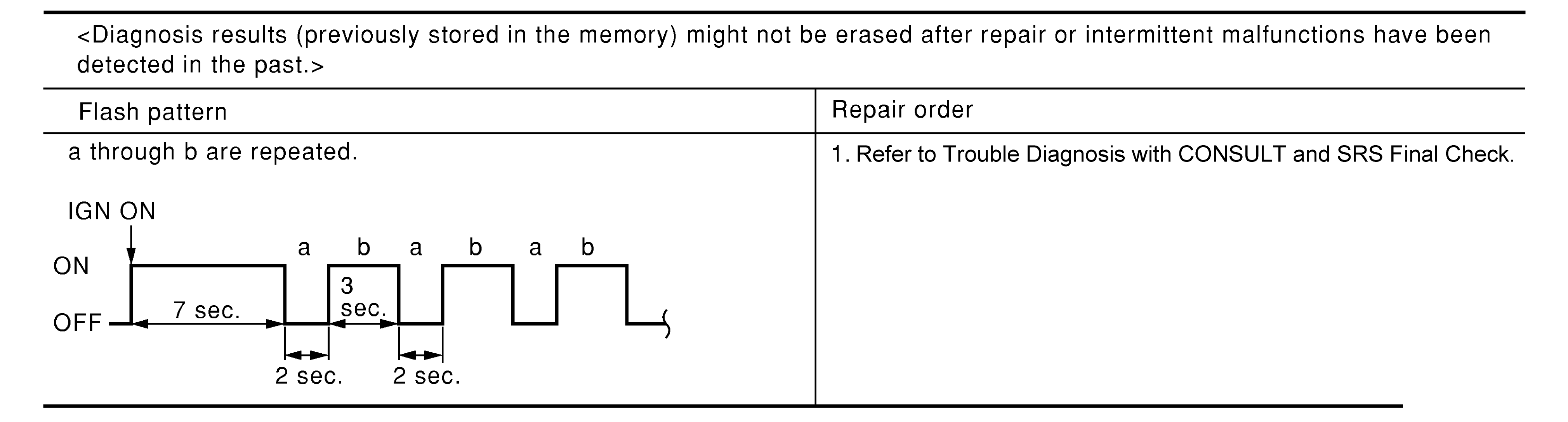

Fig 1: Warning Lamp Blinking Pattern

G08160018

Courtesy of NISSAN NORTH AMERICA, INC.

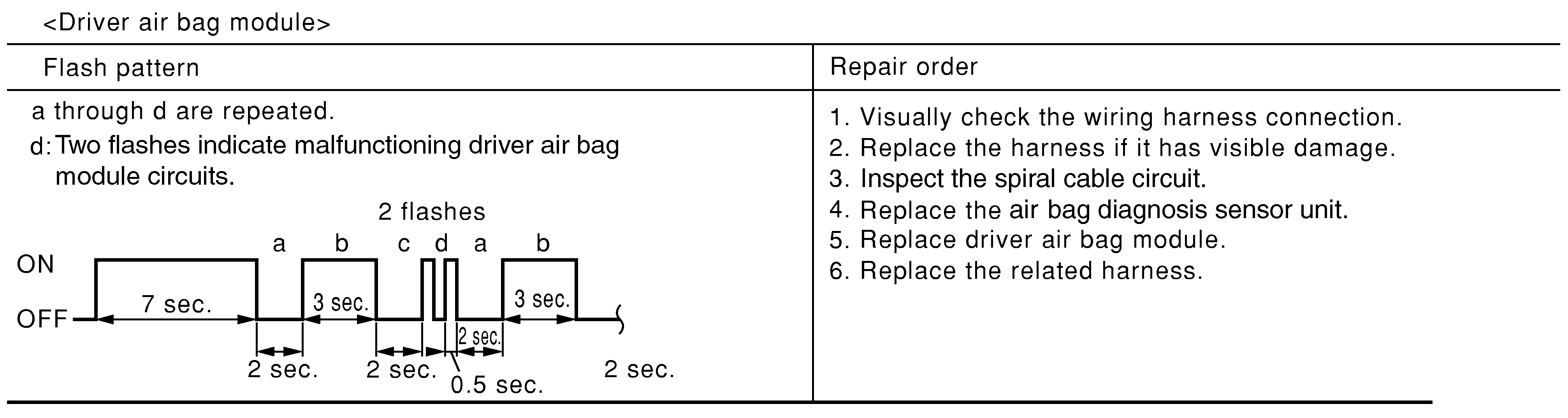

Fig 2: Driver Air Bag Module Blinking Pattern

G08118074

Courtesy of NISSAN NORTH AMERICA, INC.

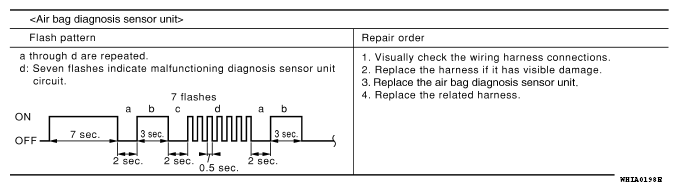

Fig 3: Air Bag Diagnosis Sensor Unit Blinking Pattern

G06556807

Courtesy of NISSAN NORTH AMERICA, INC.

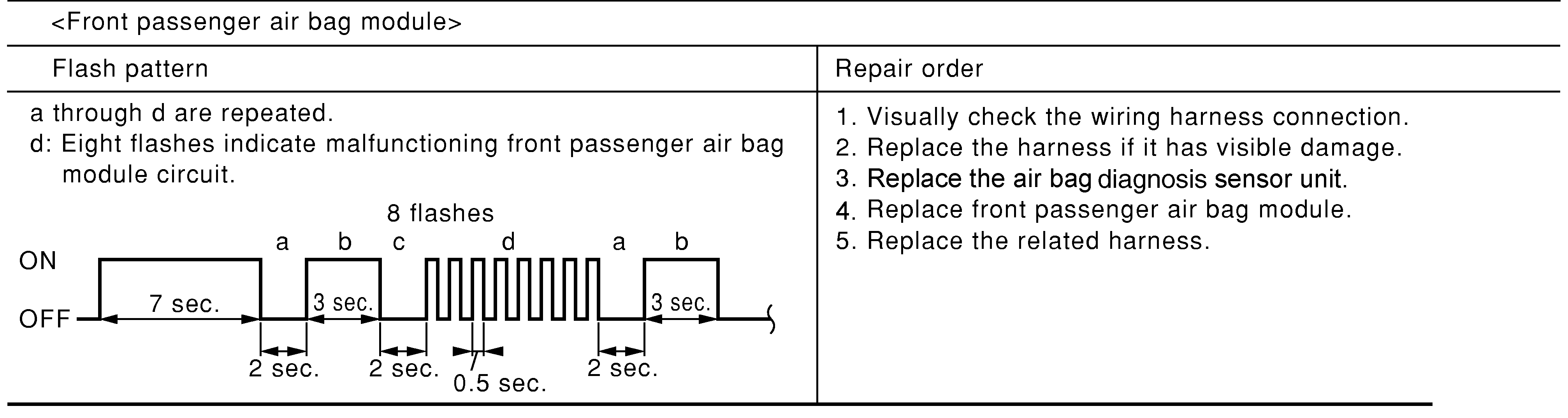

Fig 4: Front Passenger Air Bag Module Blinking Pattern

G08118075

Courtesy of NISSAN NORTH AMERICA, INC.

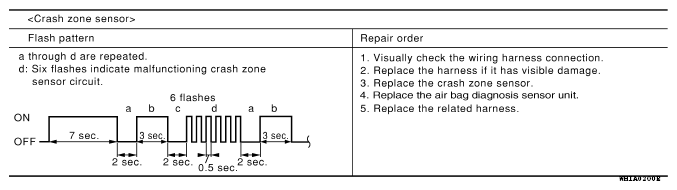

Fig 5: Crash Zone Sensor Blinking Pattern

G06556804

Courtesy of NISSAN NORTH AMERICA, INC.

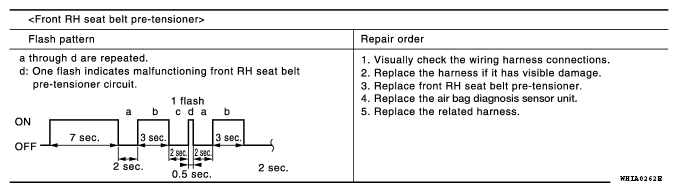

Fig 6: Front RH Seat Belt Pre-Tensioner Blinking Pattern

G06556803

Courtesy of NISSAN NORTH AMERICA, INC.

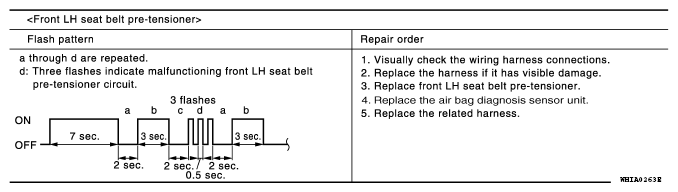

Fig 7: Front LH Seat Belt Pre-Tensioner Blinking Pattern

G06556816

Courtesy of NISSAN NORTH AMERICA, INC.

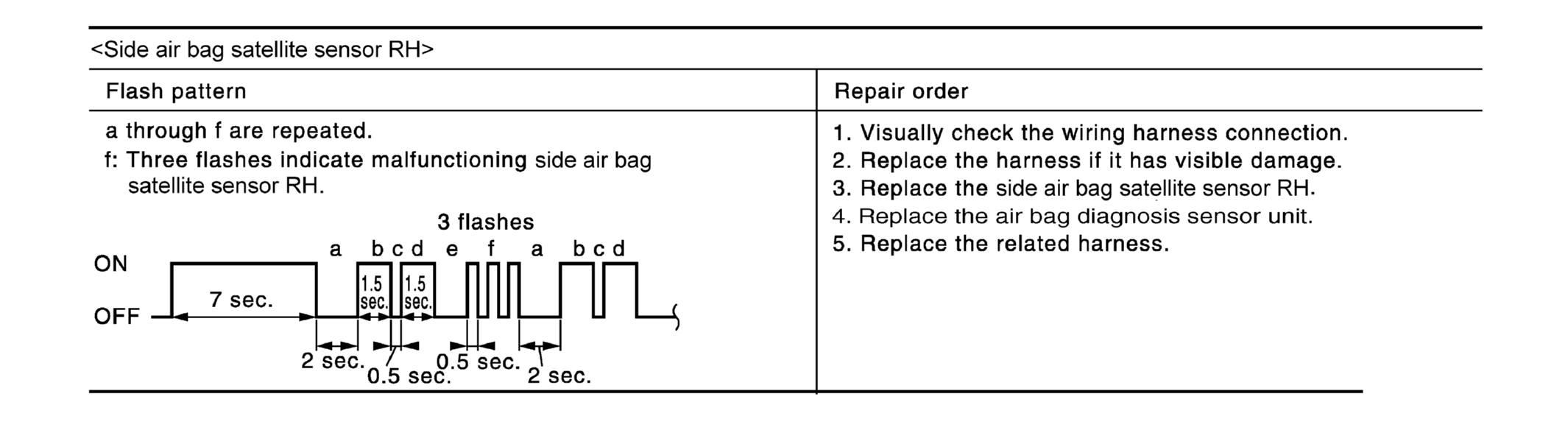

Fig 8: Side Air Bag Satellite - Blinking Pattern (RH)

G08118084

Courtesy of NISSAN NORTH AMERICA, INC.

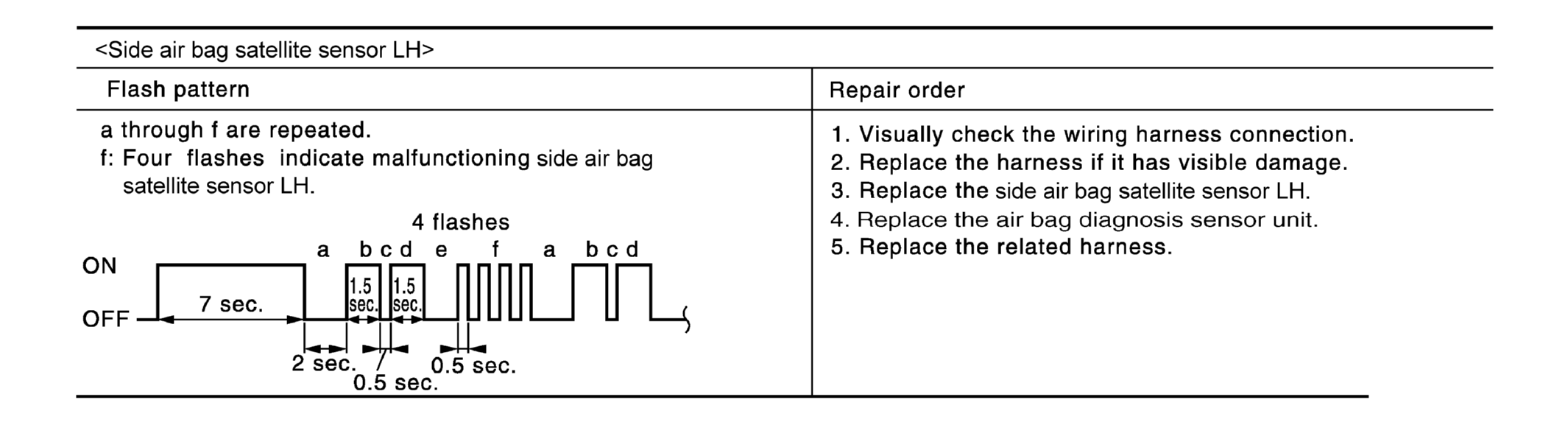

Fig 9: Side Air Bag Satellite - Blinking Pattern (LH)

G08118083

Courtesy of NISSAN NORTH AMERICA, INC.

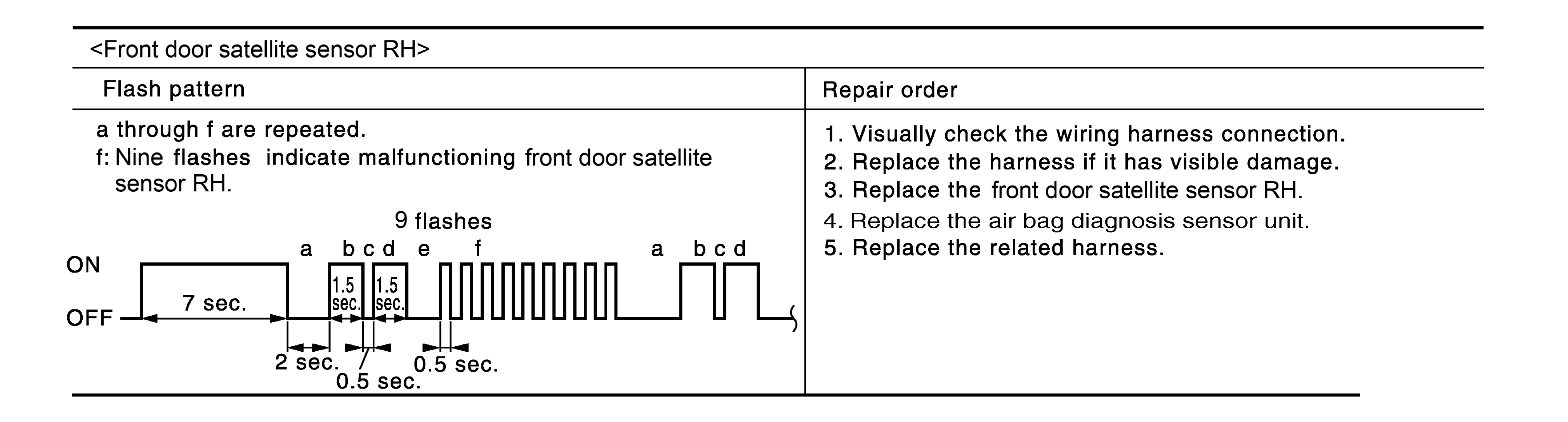

Fig 10: Front Door Satellite Sensor - Blinking Pattern (RH)

G08200382

Courtesy of NISSAN NORTH AMERICA, INC.

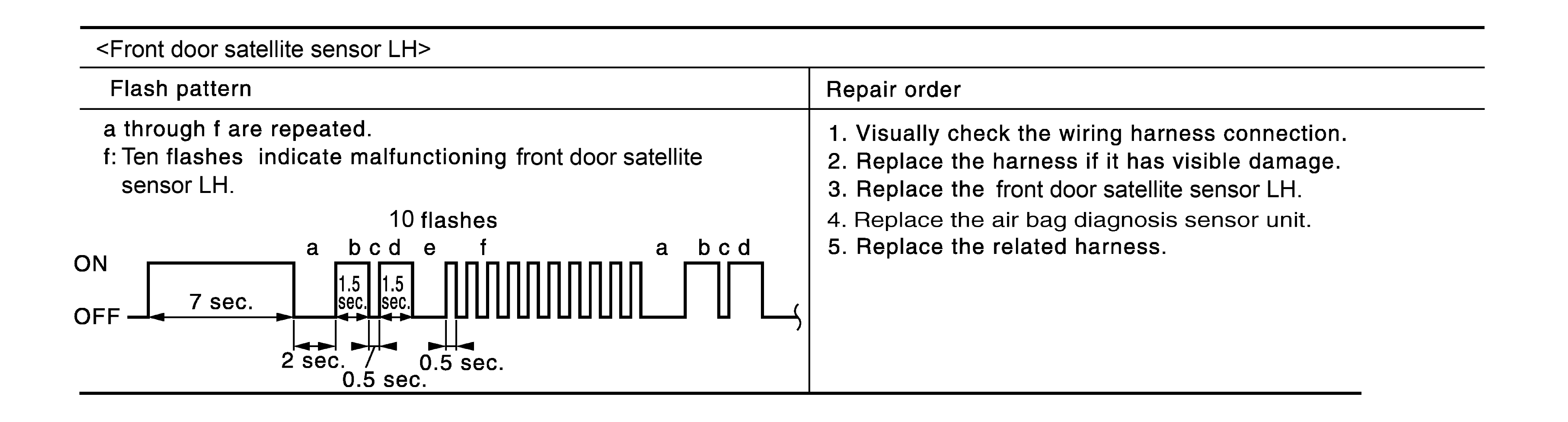

Fig 11: Front Door Satellite Sensor - Blinking Pattern (LH)

G08200383

Courtesy of NISSAN NORTH AMERICA, INC.

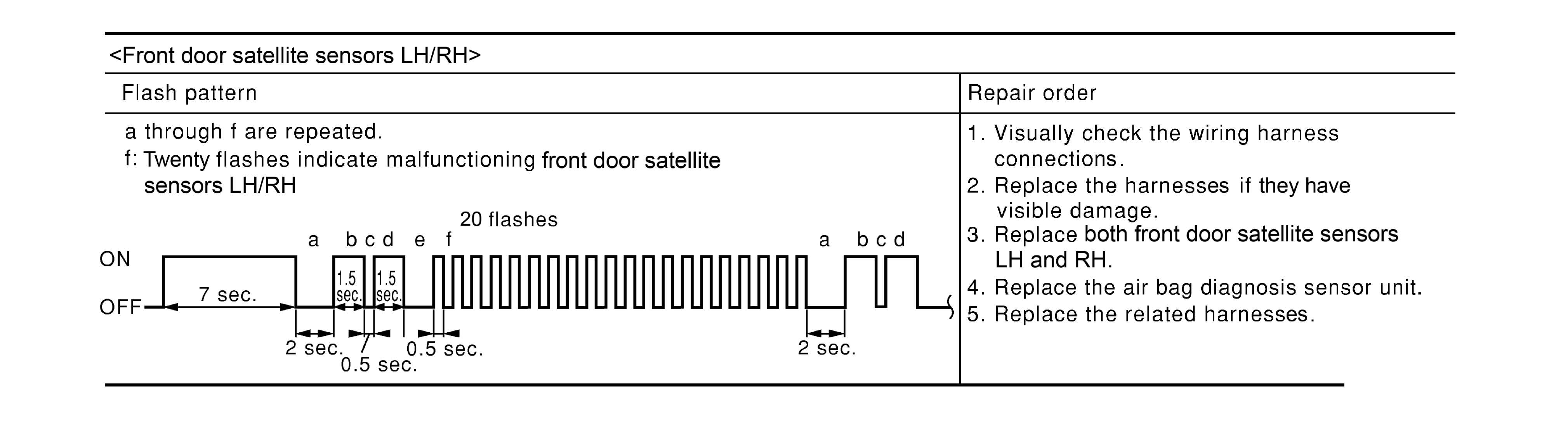

Fig 12: Front Door Satellite Sensor - LH/Blinking Pattern (RH)

G08118087

Courtesy of NISSAN NORTH AMERICA, INC.

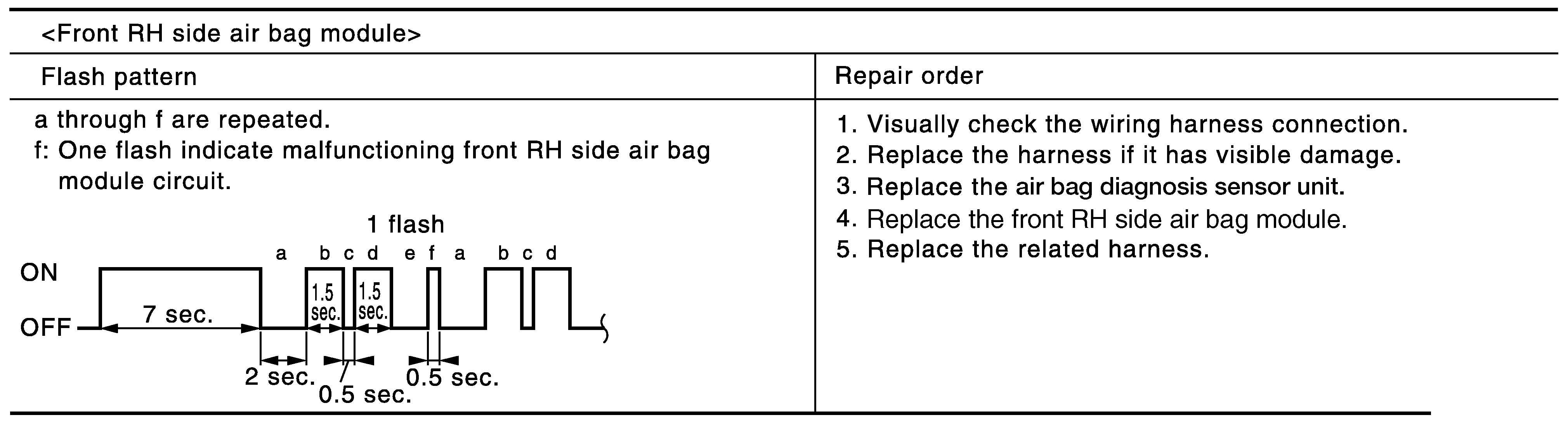

Fig 13: Front RH Side Air Bag Module Blinking Pattern

G08118077

Courtesy of NISSAN NORTH AMERICA, INC.

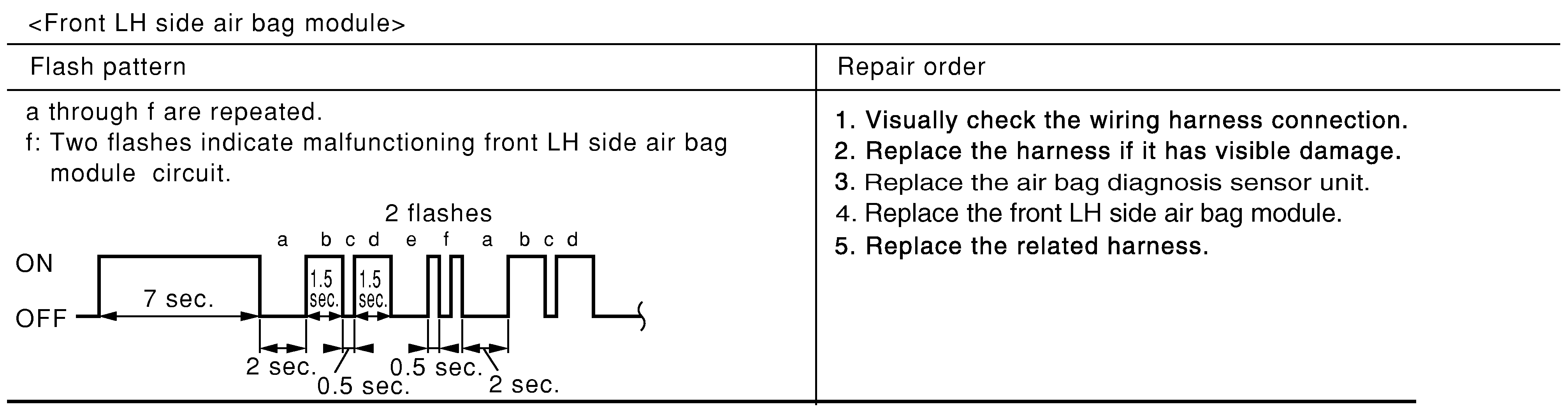

Fig 14: Front LH Side Air Bag Module Blinking Pattern

G08118076

Courtesy of NISSAN NORTH AMERICA, INC.

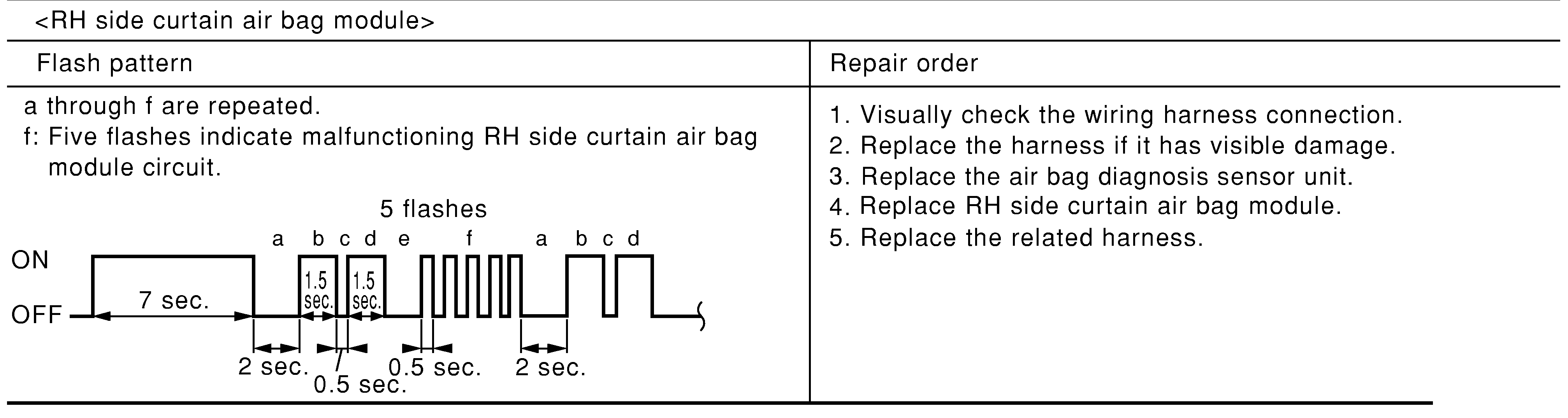

Fig 15: RH Side Curtain Air Bag Module Blinking Pattern

G08118079

Courtesy of NISSAN NORTH AMERICA, INC.

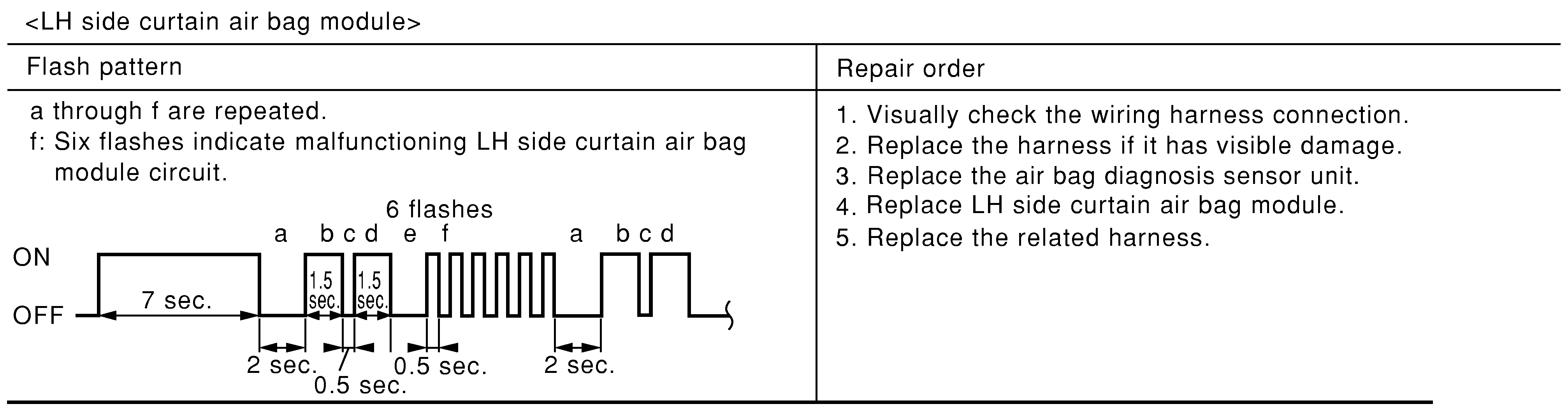

Fig 16: LH Side Curtain Air Bag Module Blinking Pattern

G08118078

Courtesy of NISSAN NORTH AMERICA, INC.

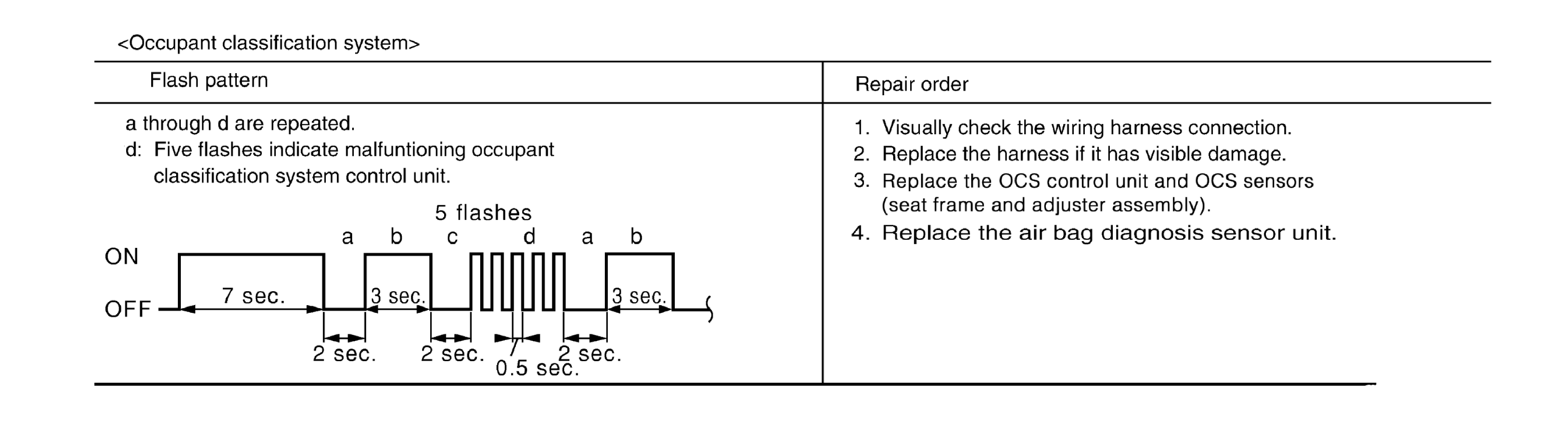

Fig 17: Occupant Classification System Blinking Pattern

G08200389

Courtesy of NISSAN NORTH AMERICA, INC.

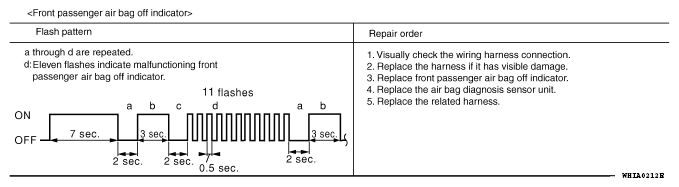

Fig 18: Front Passenger Air Bag Off Indicator Blinking Pattern

G06556808

Courtesy of NISSAN NORTH AMERICA, INC.
