IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End Views

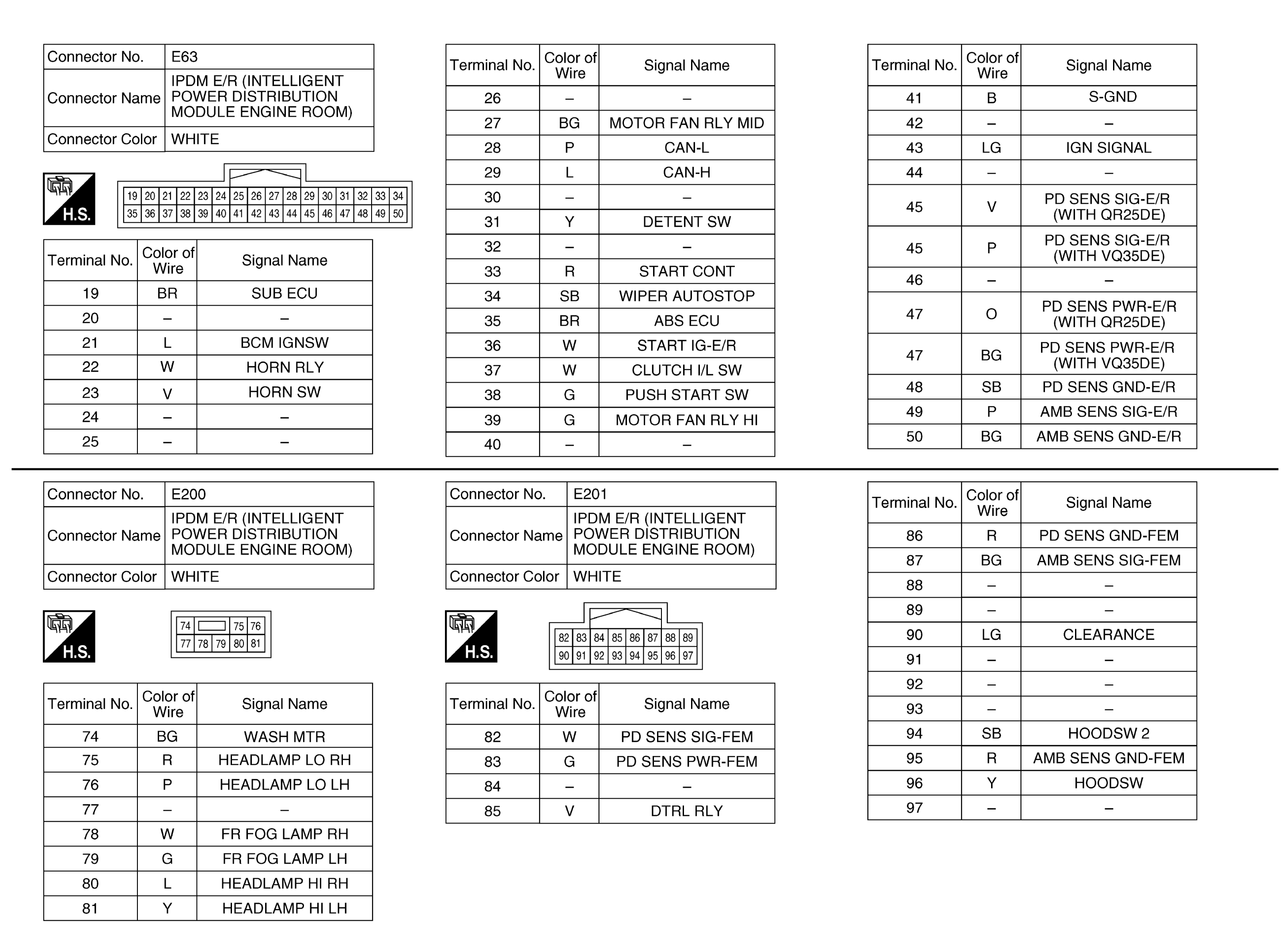

Fig 1: IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End Views (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

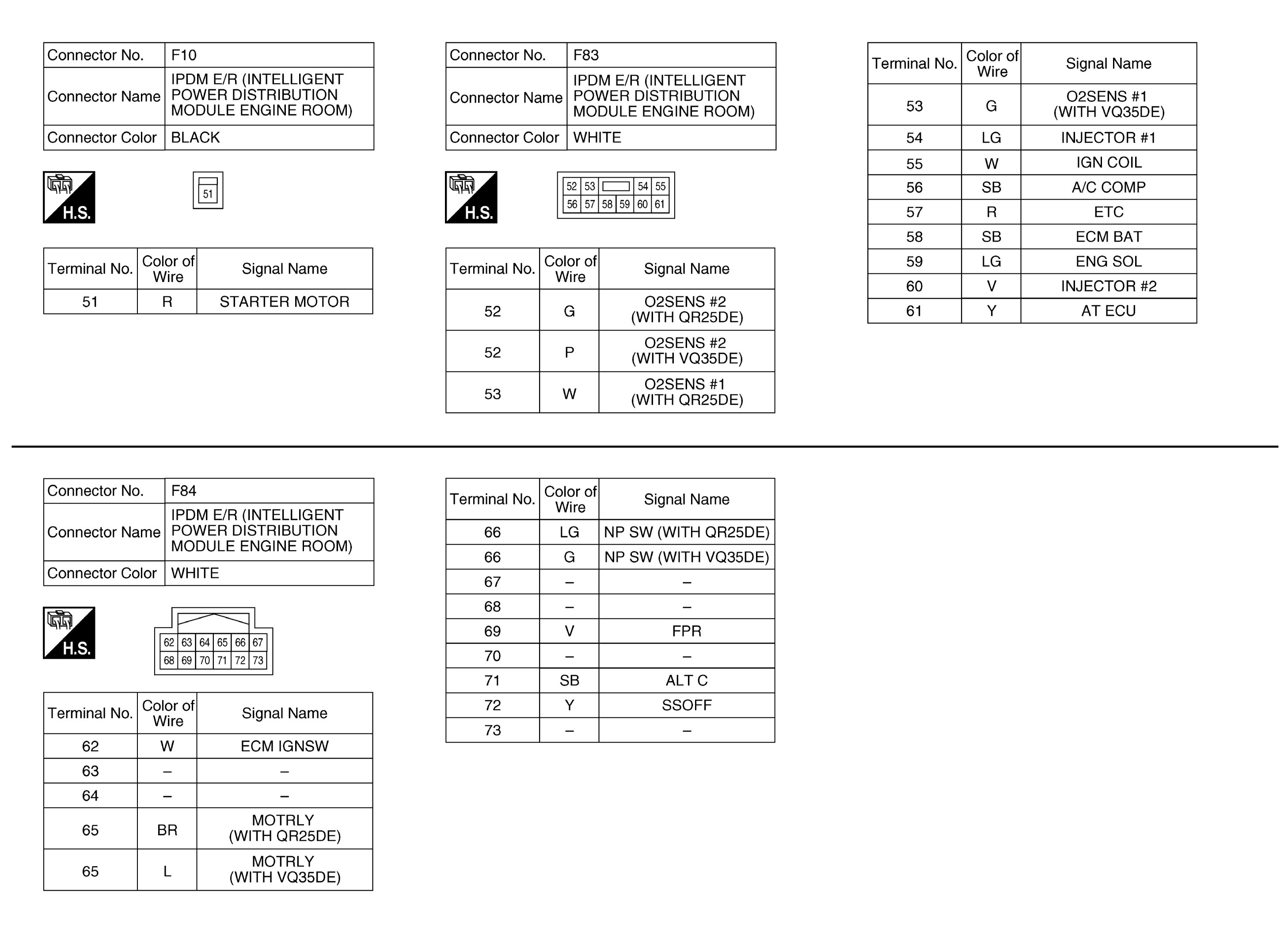

Fig 2: IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End Views (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

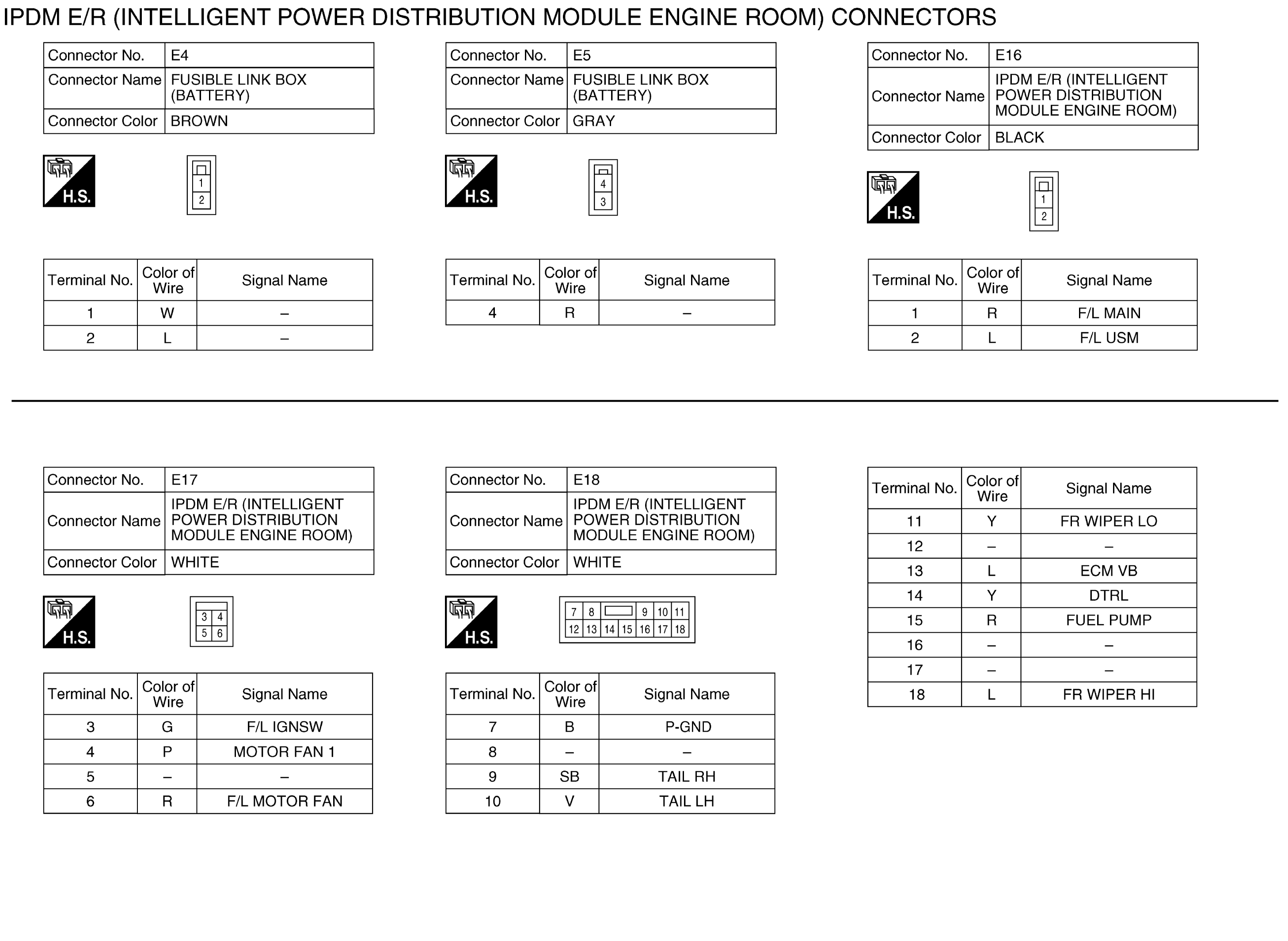

Fig 3: IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End Views (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
