Disassembly And Assembly: Notes

Fuel Level Sensor Unit

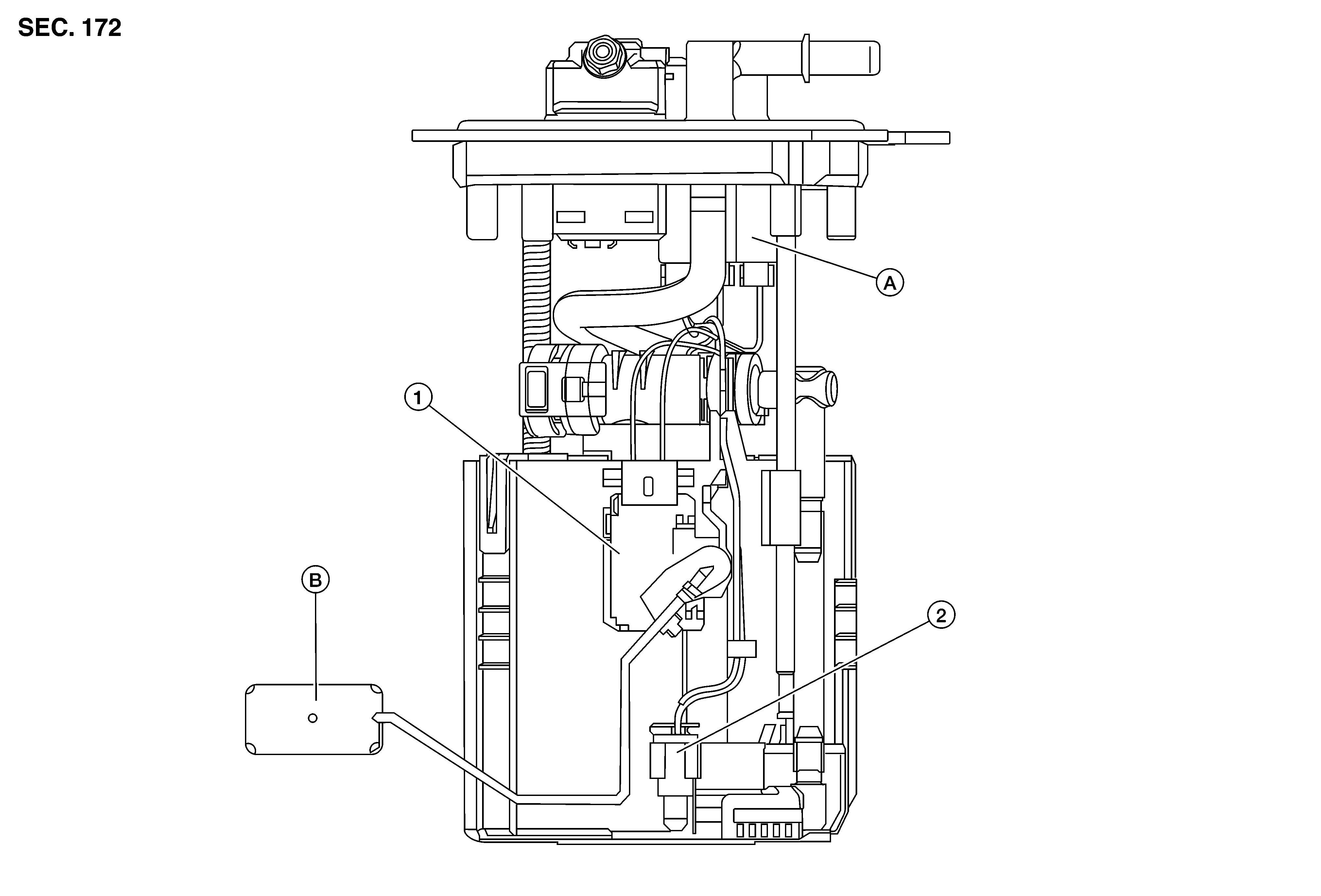

Fig 1: Locating Fuel level Sensor Unit Components
GNSALBIA0926ZZ-926Courtesy of NISSAN NORTH AMERICA, INC.
1. Level sensor unit module 2. Fuel temperature sensor A. Harness connector
B. Float arm assembly
