Encoder Circuit Check

  1. CHECK ENCODER OPERATION

    1. Turn ignition switch ON.
    2. Check signal between power window main switch harness connector and ground with oscilloscope.
      (+) (-) Signal
      (Reference value)
      Power window main switch
      Connector Terminal
      D5 9 Ground Refer to following signal
      13

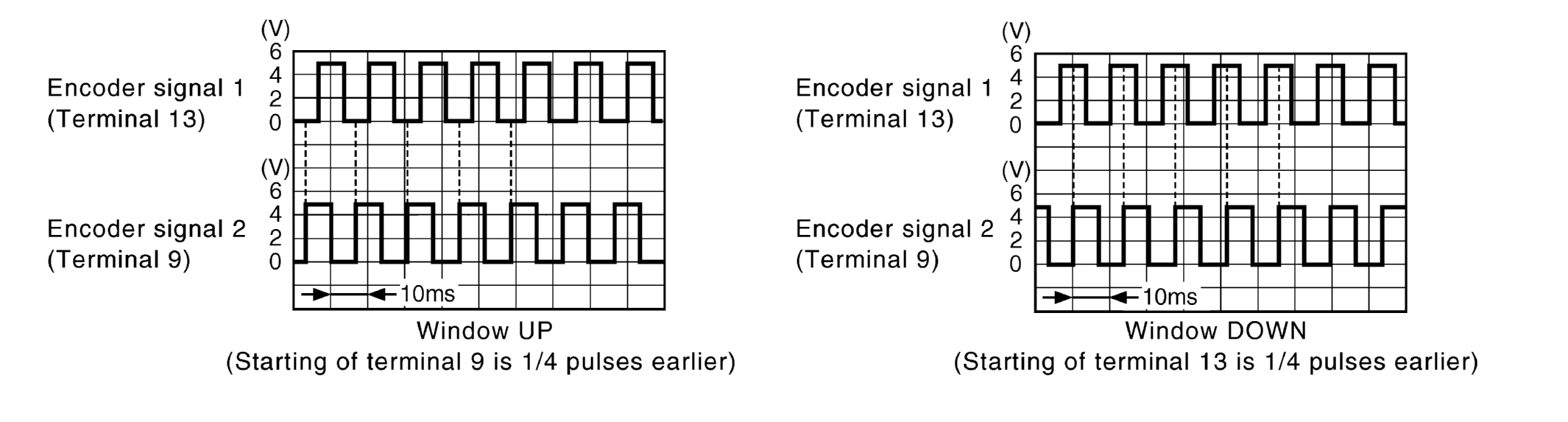

      Fig 1: Encoder Signal Waveform Graph
      G04888492Courtesy of NISSAN NORTH AMERICA, INC.

    Is the inspection result normal?

    YES

    Replace power window main switch. Refer to REMOVAL AND INSTALLATION .

    NO

    GO TO STEP 2  .

  2. CHECK ENCORDER SIGNAL CIRCUIT

    1. Turn ignition switch OFF.
    2. Disconnect power window main switch connector and front power window motor (driver side) connector.
    3. Check continuity between power window main switch harness connector and front power window motor (driver side) harness connector.
      Power window main switch Front power window motor (driver side) Continuity
      Connector Terminal Connector Terminal
      D5 9 D7 3 Existed
      13 5
    4. Check continuity between power window main switch harness connector and ground.
      Power window main switch Ground Continuity
      Connector Terminal
      D5 9 Not existed
      13

    Is the inspection result normal?

    YES

    GO TO STEP 3  .

    NO

    Repair or replace harness.

  3. CHECK ENCORDER POWER SUPPLY

    1. Connect power window main switch connector.
    2. Turn ignition switch ON.
    3. Check voltage between front power window motor (driver side) harness connector and ground.
      (+) (-) Voltage (V)
      (Approx.)
      Front power window motor (driver side)
      Connector Terminal
      D7 4 Ground Battery voltage

    Is the inspection result normal?

    YES

    GO TO STEP 5  .

    NO

    GO TO STEP 4  .

  4. CHECK ENCORDER POWER SUPPLY CIRCUIT

    1. Turn ignition switch OFF.
    2. Disconnect power window main switch connector.
    3. Check continuity between power window main switch harness connector and front power window motor (driver side) harness connector.
      Power window main switch Front power window motor (driver side) Continuity
      Connector Terminal Connector Terminal
      D5 8 D7 2 Existed
    4. Check continuity between power window main switch harness connector and ground.
      Power window main switch Ground Continuity
      Connector Terminal
      D5 8 Not existed

    Is the inspection result normal?

    YES

    Replace power window main switch. Refer to REMOVAL AND INSTALLATION .

    NO

    Repair or replace harness.

  5. CHECK GROUND CIRCUIT 1

    1. Turn ignition switch OFF.
    2. Disconnect power window main switch connector.
    3. Check continuity between power window main switch harness connector and front power window motor (driver side) harness connector.
      Power window main switch Front power window motor (driver side) Continuity
      Connector Terminal Connector Terminal
      D5 2 D7 6 Existed

    Is the inspection result normal?

    YES

    GO TO STEP 6  .

    NO

    Repair or replace harness.

  6. CHECK GROUND CIRCUIT 2

    1. Connect power window main switch connector.
    2. Check continuity between power window main switch harness connector and ground.
      Power window main switch Ground Continuity
      Connector Terminal
      D5 2 Existed

    Is the inspection result normal?

    YES

    Replace front power window motor (driver side). Refer to DISASSEMBLY AND ASSEMBLY .

    NO

    Replace power window main switch. Refer to REMOVAL AND INSTALLATION .
