Exploded View With Torque Specifications

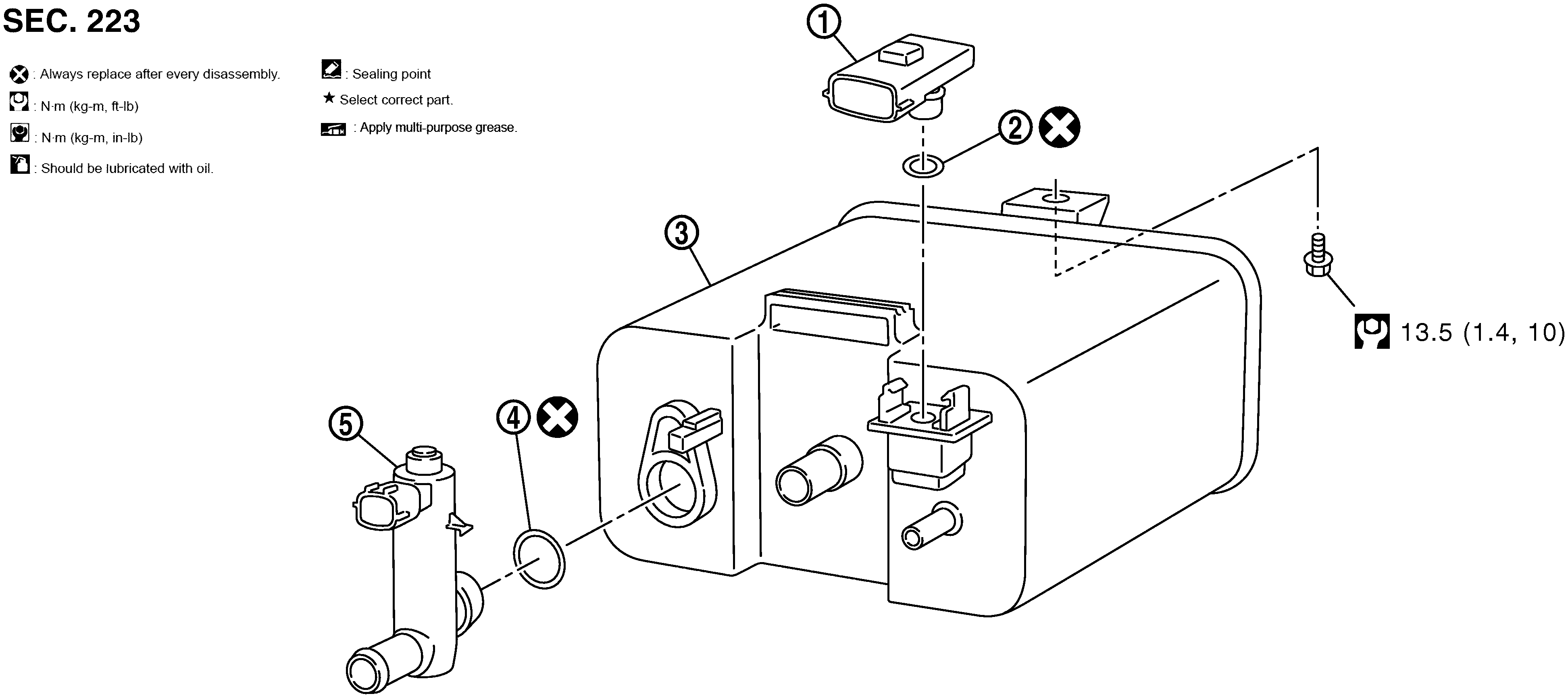

Fig 1: Exploded View Of EVAP Canister With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP canister system pressure sensor	2.	O-ring	3.	EVAP canister
4.	O-ring	5.	EVAP canister vent control valve
: Always replace after every disassembly.
: N•m (kg-m, ft-lb)
