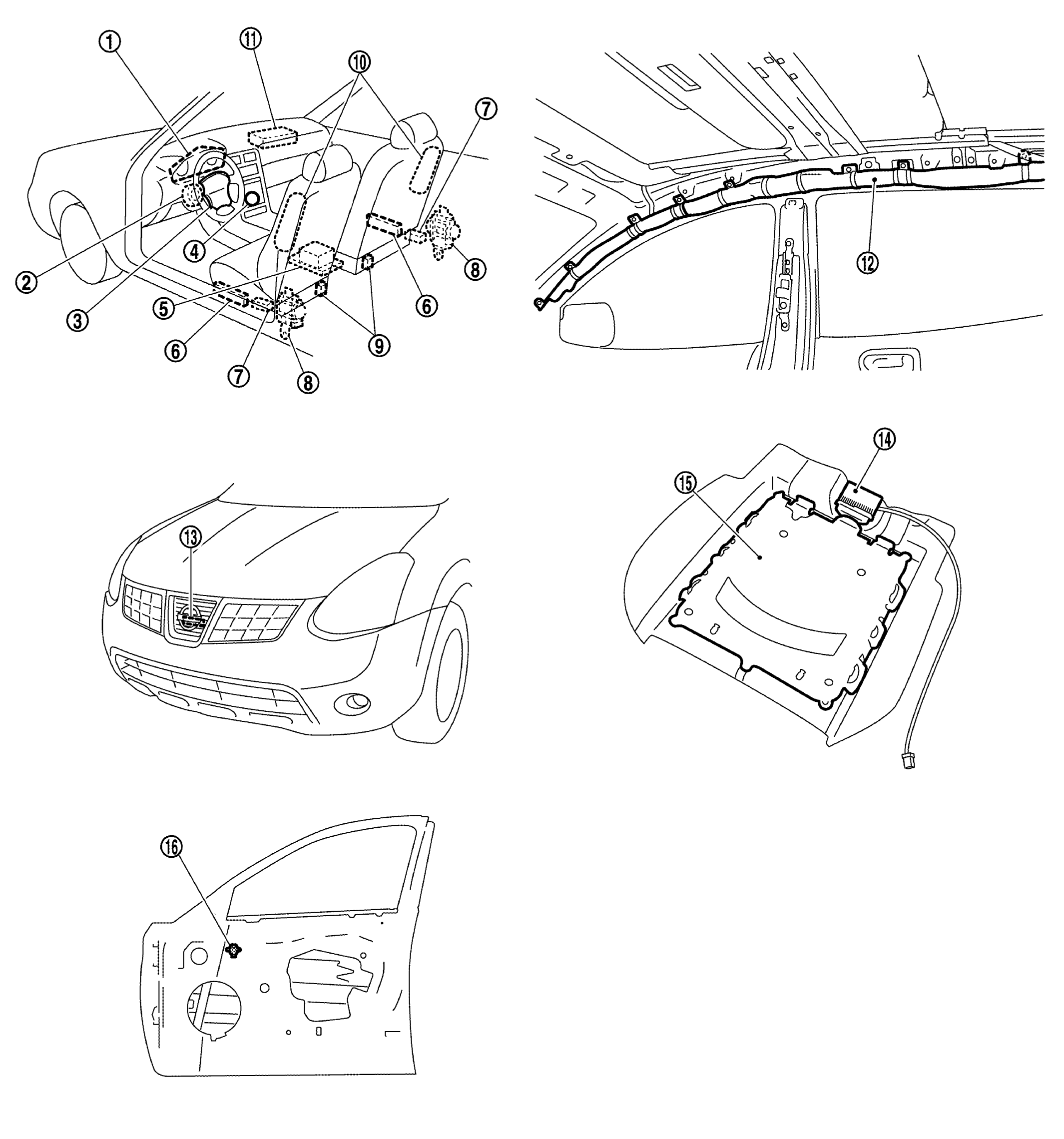

| 1. |
Combination meter |
2. |
Combination switch (spiral cable) |
3. |
Driver air bag module |
| 4. |
Front passenger air bag off indicator |
5. |
Air bag diagnosis sensor unit |
6. |
Lap pre-tensioner LH/RH |
| 7. |
Satellite sensor LH/RH |
8. |
Seat belt pre-tensioner LH/RH |
9. |
Seat belt buckle switch (Driver side/passenger side) |
| 10. |
Side air bag module LH/RH |
11. |
Passenger air bag module |
12. |
Curtain air bag module |
| 13. |
Crash zone sensor |
14. |
Occupant classification system control unit |
15. |
Occupant classification system sensor |
| 16. |
Front door satellite sensor LH/RH |
|
|
|
|
