Exploded View With Torque Specifications

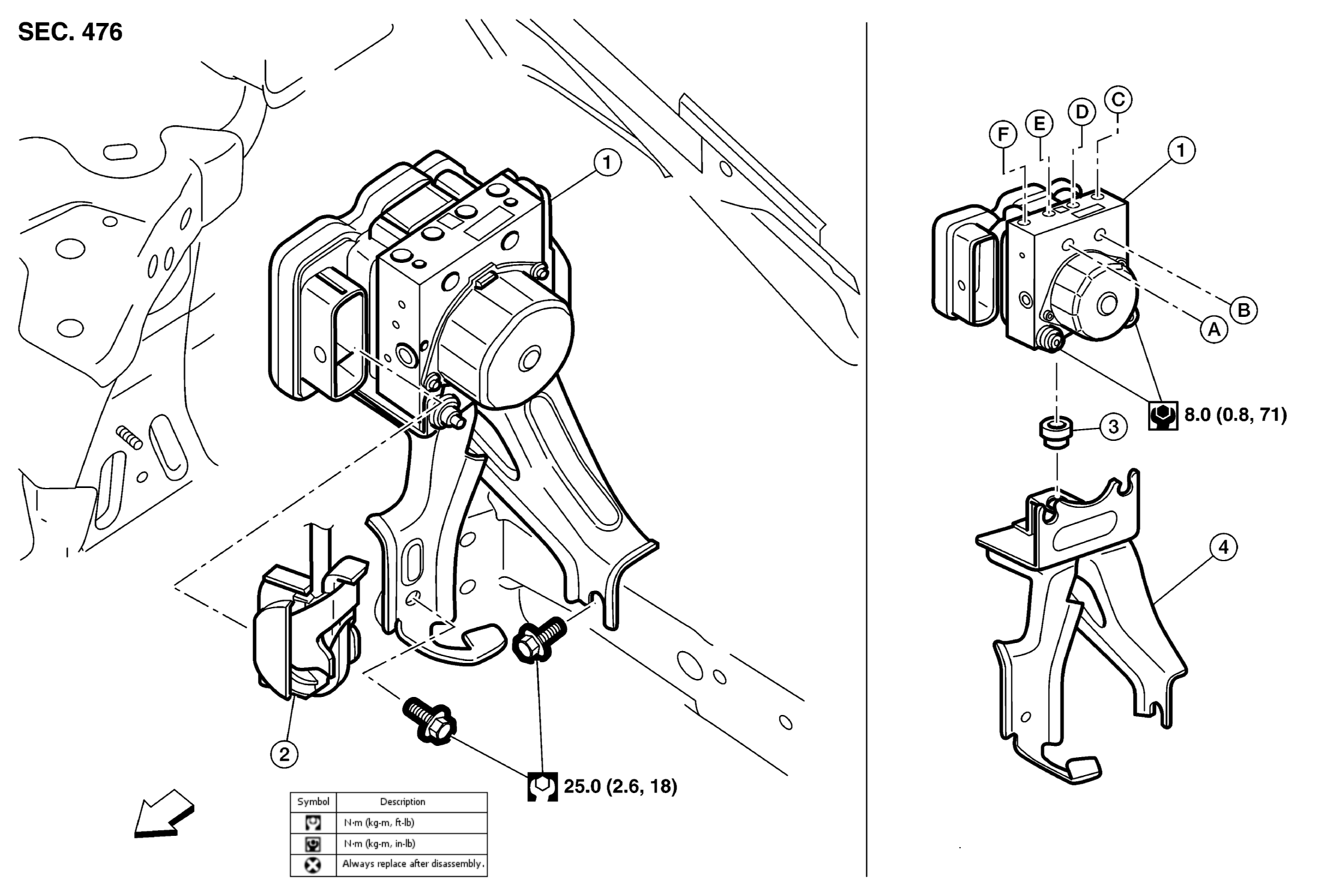

Fig 1: Exploded View Of ABS Actuator And Electric Unit (Control Unit) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ABS actuator and electric unit (control unit)	2.	ABS actuator and electric unit (control unit) harness connector	3.	Bushing
4.	Bracket	A.	To master cylinder secondary side	B.	To master cylinder primary side
C.	To rear LH caliper / wheel cylinder	D.	To front RH caliper	E.	To front LH caliper
F.	To rear RH caliper / wheel cylinder		Front
