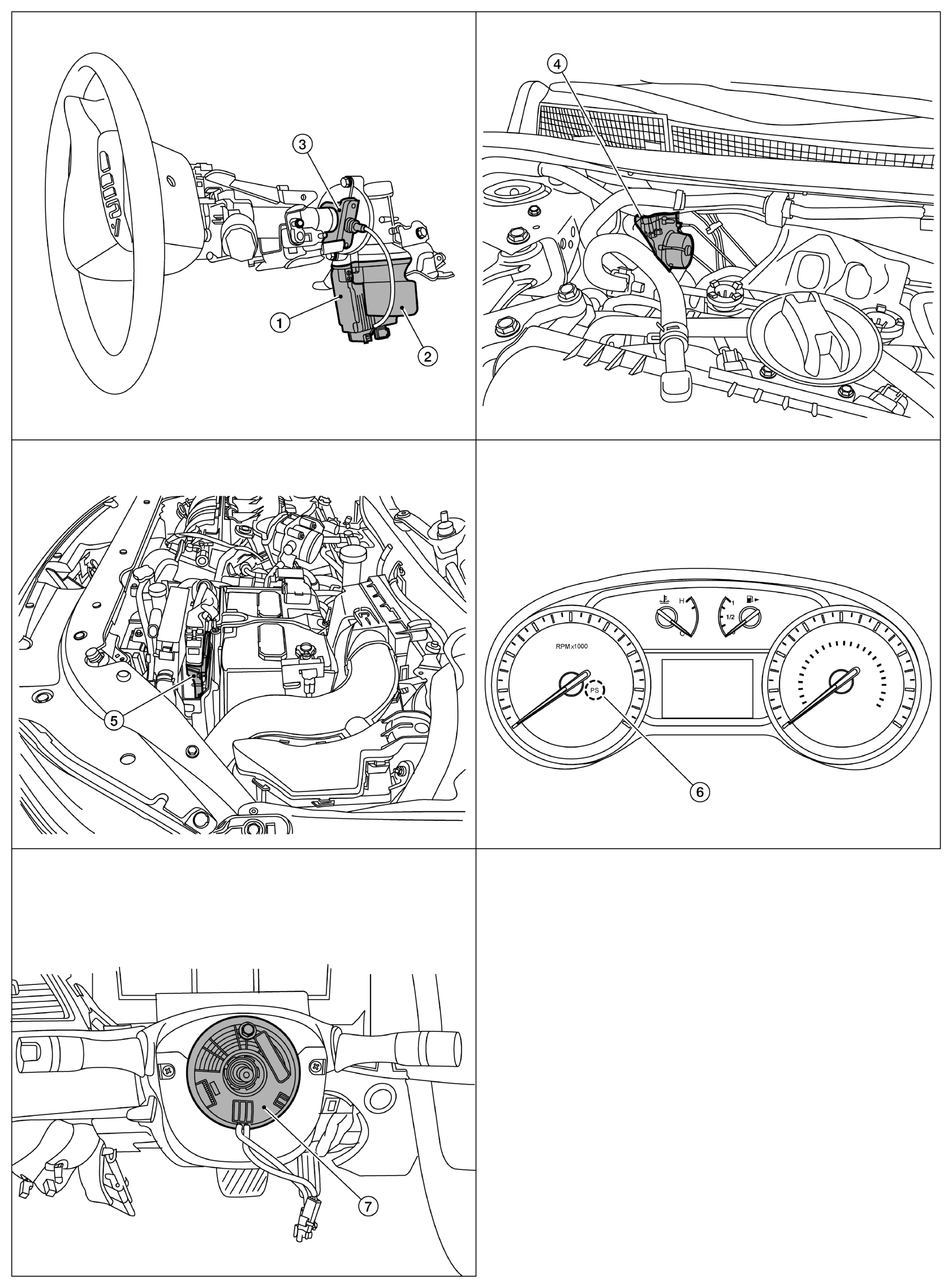

Component Parts Location
| 1. | EPS control unit (view with steering column removed from vehicle) | 2. | EPS motor (view with steering column removed from vehicle) | 3. | Torque sensor (view with steering column removed from vehicle) |
| 4. | ABS actuator and electric unit (control unit) | 5. | ECM | 6. | EPS warning lamp (In combination meter) |
| 7. | Steering angle sensor (view with steering wheel removed) |
