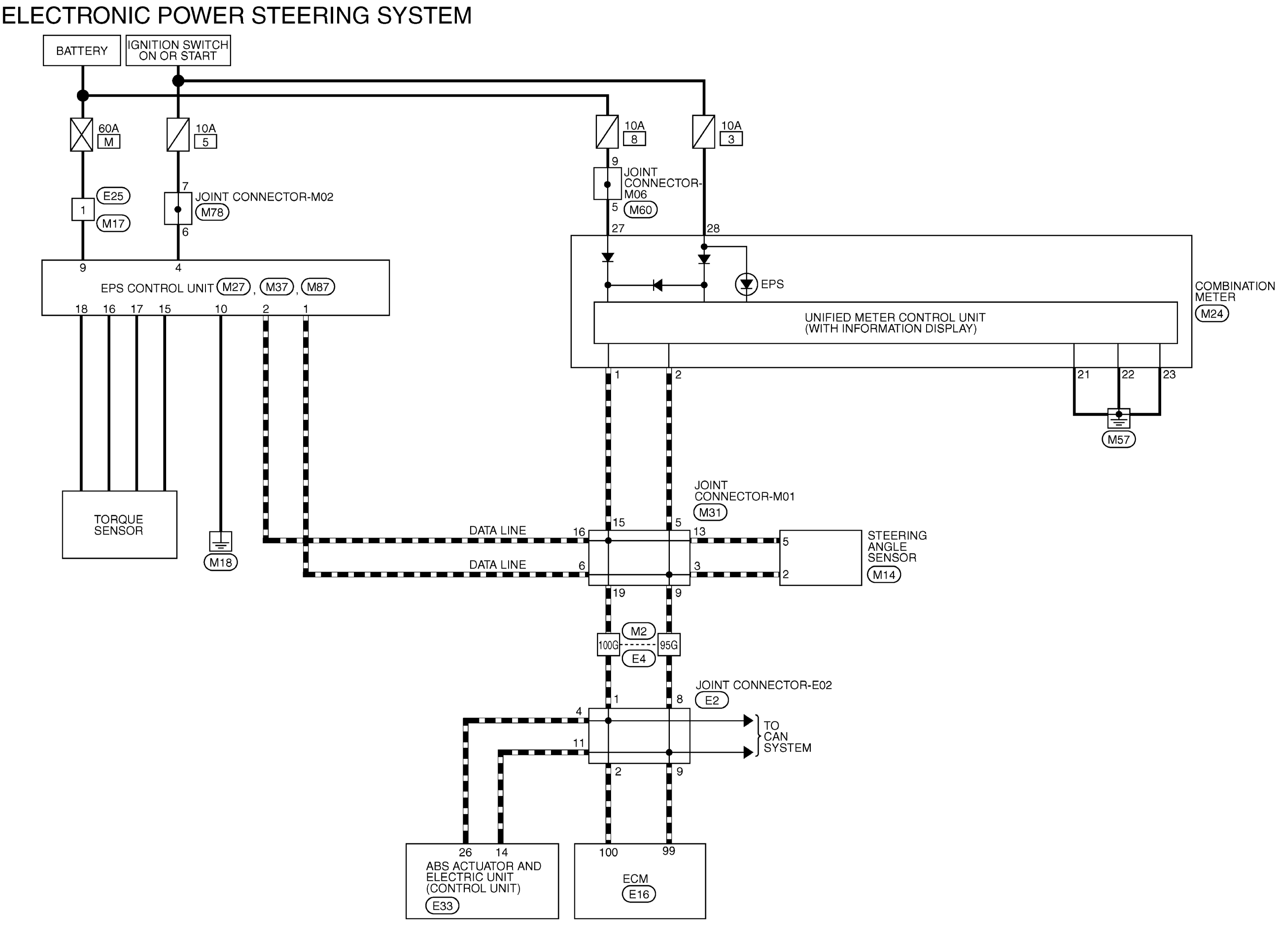

Power Steering Control System: Wiring Diagram

Fig 1: Power Steering Control System With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Power Steering Control System Connector End Views (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Power Steering Control System Connector End Views (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Power Steering Control System Connector End Views (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
